Installation Service Points
Installation Service Points

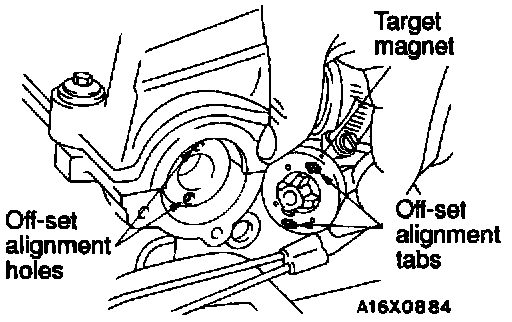

Target Magnet Installation:
Align the tabs with the holes to install the target magnet to the camshaft.
