Wiper Gear Box: Service and Repair

Wiper Motor & Transmission Replacement

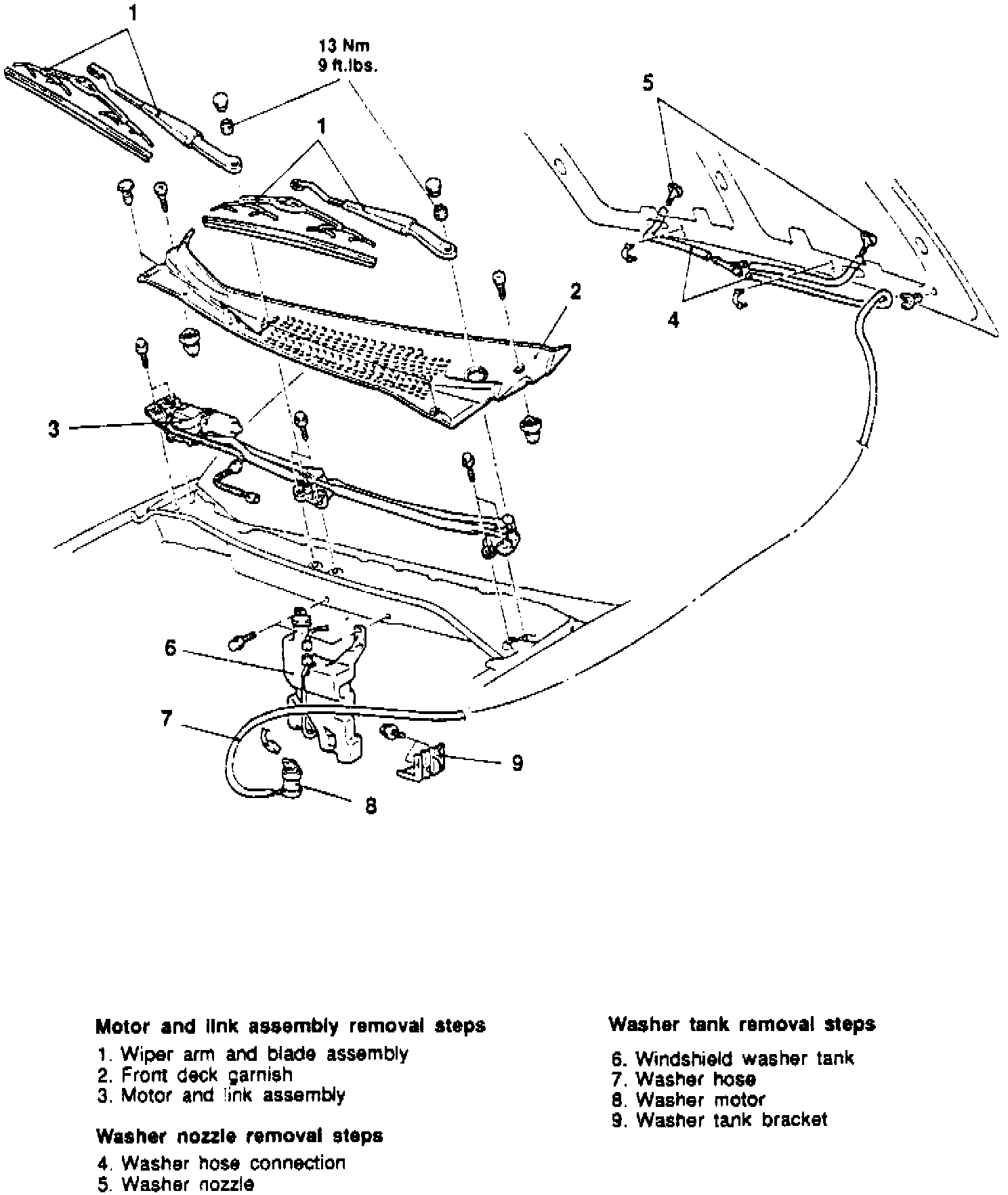

Fig. 13 Front Wiper Motor & Transmission Replacement:

FRONT

Remove front windshield wiper motor and transmission in numbered sequence, noting the following:
1. Disconnect battery ground cable.
2. Mark position of wiper arms before removal.
3. Reverse procedure to install.

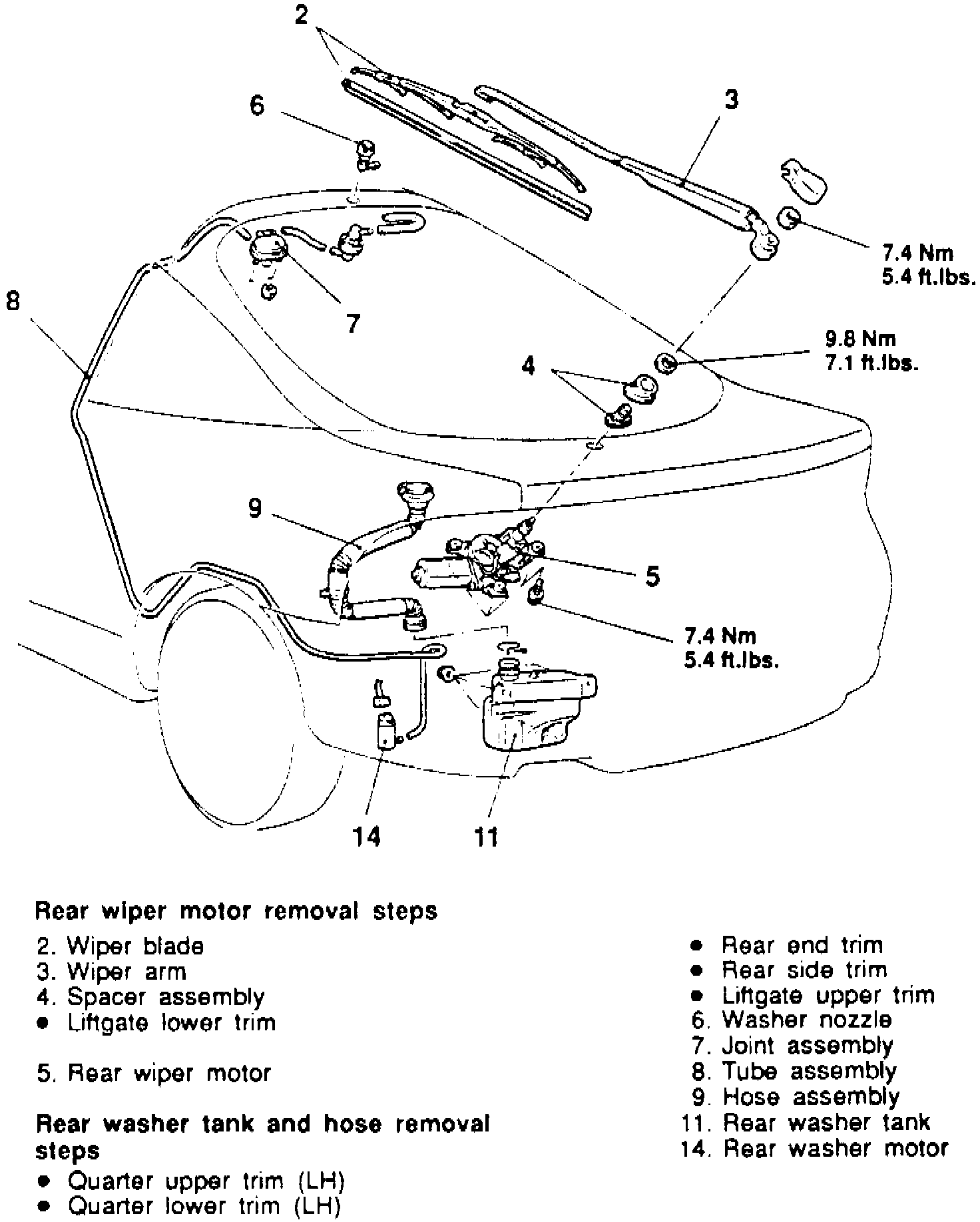

Fig. 14 Rear Wiper Motor & Transmission Replacement:

REAR

Remove rear windshield wiper motor and transmision in numbered sequence, noting the following:
1. Disconnect battery ground cable.
2. Mark position of wiper arm before removal.
3. Reverse procedure to install
