Wiper Arm and Blade

Wiper Arm And Blade Assembly Installation:

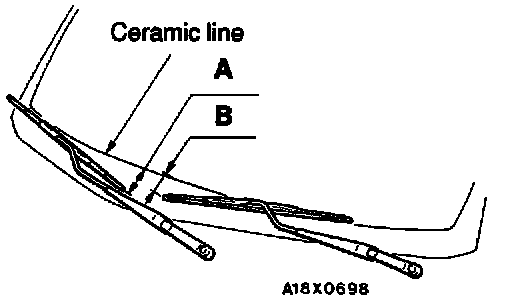

Adjust the wiper and blade assembly so that the clearances between the wiper blade edges and the ceramic line are at the standard value.
Standard value:
(A): 52.5 ± 5 mm (2.07 ± 0.20 in.)
(B): 19.5 ± 5 mm (0.77 ± 0.20 in.)
