Windshield Washer Reservoir: Service and Repair

Rear Washer Tank and Hose

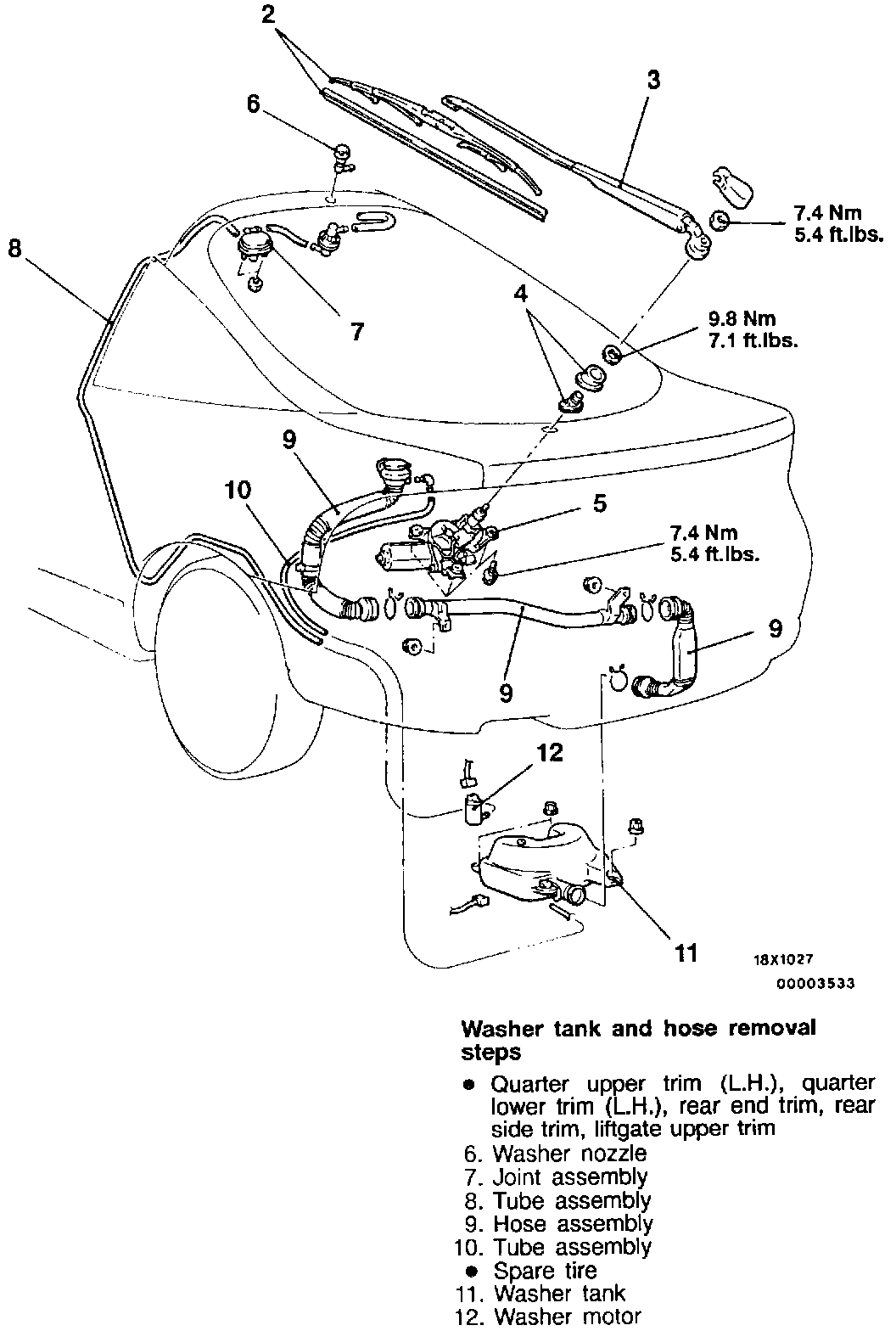

Rear Washer Tank And Hose - Removal And Installation:

REMOVE
- Quarter upper trim (LH)
- Quarter lower trim (LH)
- Rear end trim
- Rear side trim
- Liftgate upper trim
6. Washer nozzle
7. Joint assembly
8. Tube assembly
9. Hose assembly
10. Tube assembly
- Spare tire
12. Windshield washer tank
13. Windshield washer motor
14. Rear washer motor

INSTALL
6. Rear washer motor
7. Windshield washer motor
8. Windshield washer tank
- Spare tire
9. Tube assembly
10. Hose assembly
12. Tube assembly
13. Joint assembly
14. Washer nozzle
- Liftgate upper trim
- Rear side trim
- Rear end trim
- Quarter lower trim (LH)
- Quarter upper trim (LH
