Window Regulator: Service and Repair

PRE-REMOVAL OPERATION
- Door Trim and Waterproof Film Removal
- Belt Line Molding Removal

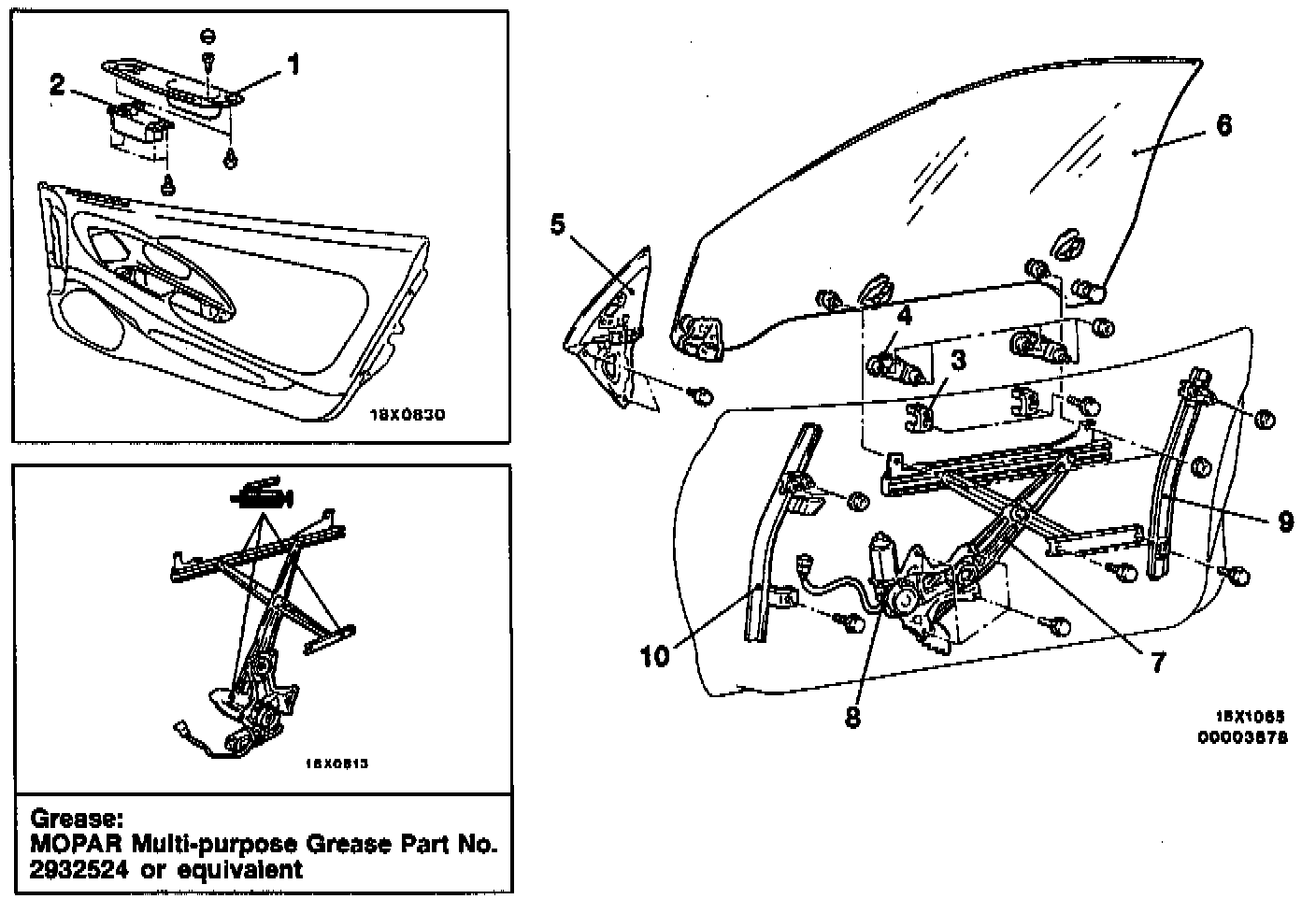

POWER WINDOW SWITCH REMOVAL STEPS
1. Pull handle box
2. Power window switch

DOOR GLASS AND REGULATOR REMOVAL STEPS
3. Up-stop
4. Inner stabilizer
5. Delta sash
6. Door window glass
7. Window regulator assembly
8. Power window motor (Vehicles with power window)
9. Glass guide rear track
10. Glass guide front track

POST-INSTALLATION OPERATION
- Door Window Glass Adjustment
- Belt Line Molding Installation
- Door Trim and Waterproof Film installation
