Drive Bevel Gear Assembly

1. Using bearing removal tool No. MD998801, or equivalent, remove taper roller bearings and drive bevel gear as shown.

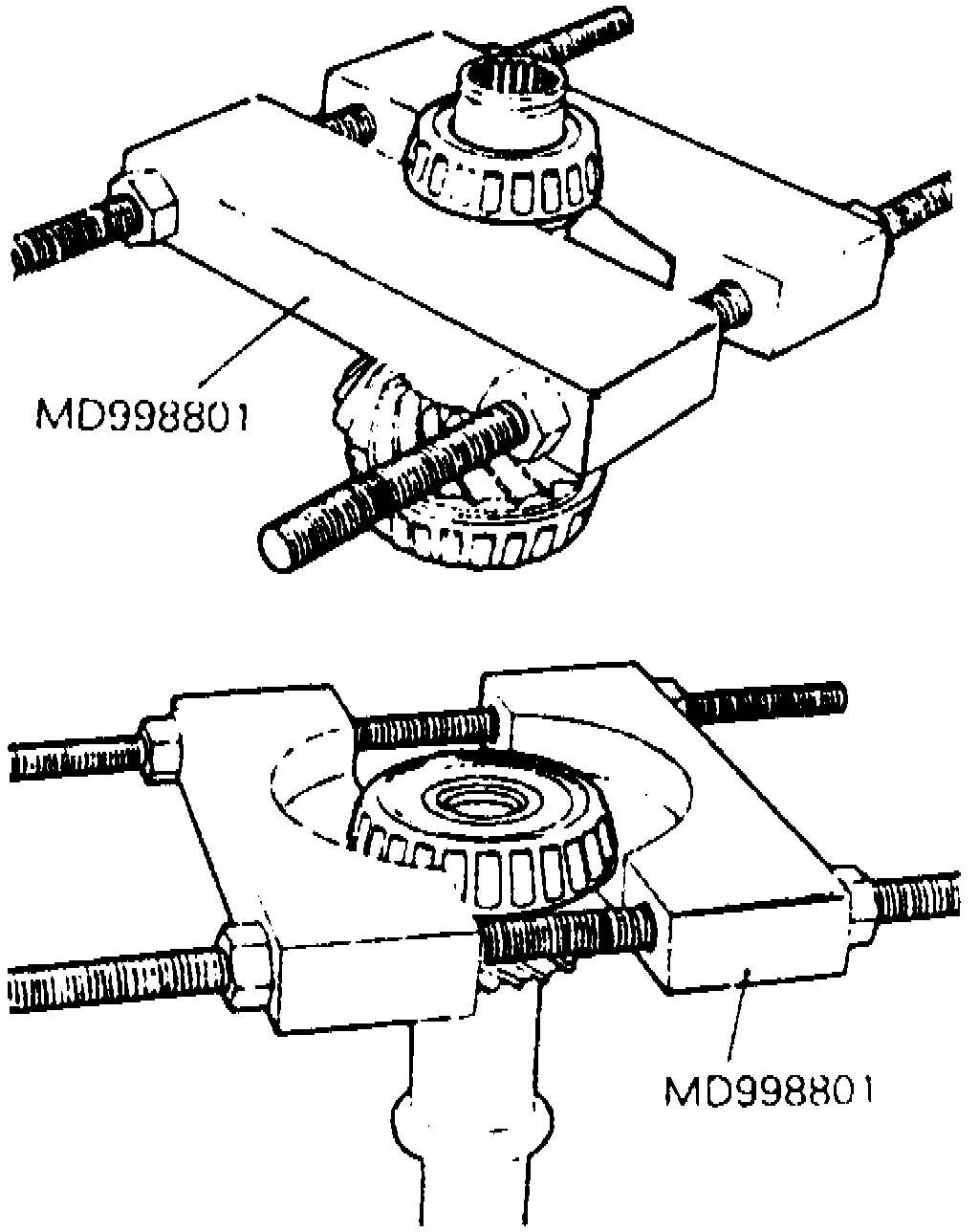

Fig.79 Taper Roller Bearing Removal From Drive Bevel Gear Assembly:

2. Using installer cap tool No. MD998812 and installer adapter tool No. MD998827, or equivalent, install taper roller bearing above drive bevel gear.

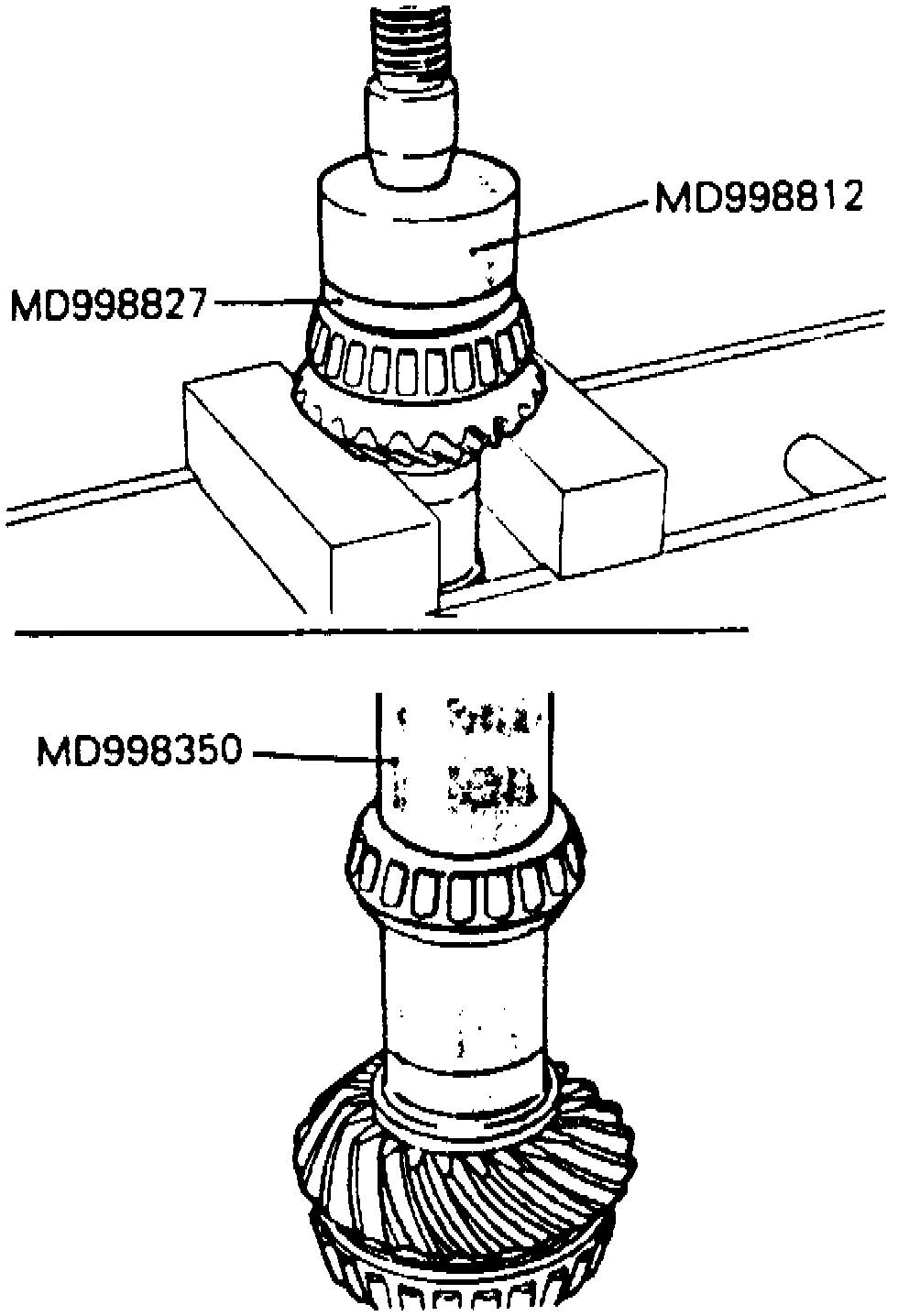

Fig.80 Taper Roller Bearing Installation On Drive Bevel Gear Assembly:

3. Using bearing installation tool No. MD998350, or equivalent, install taper roller bearing at opposite end drive bevel gear.
