Removal and Installation

1. Remove two front exhaust pipe attaching nuts and lower exhaust pipe.

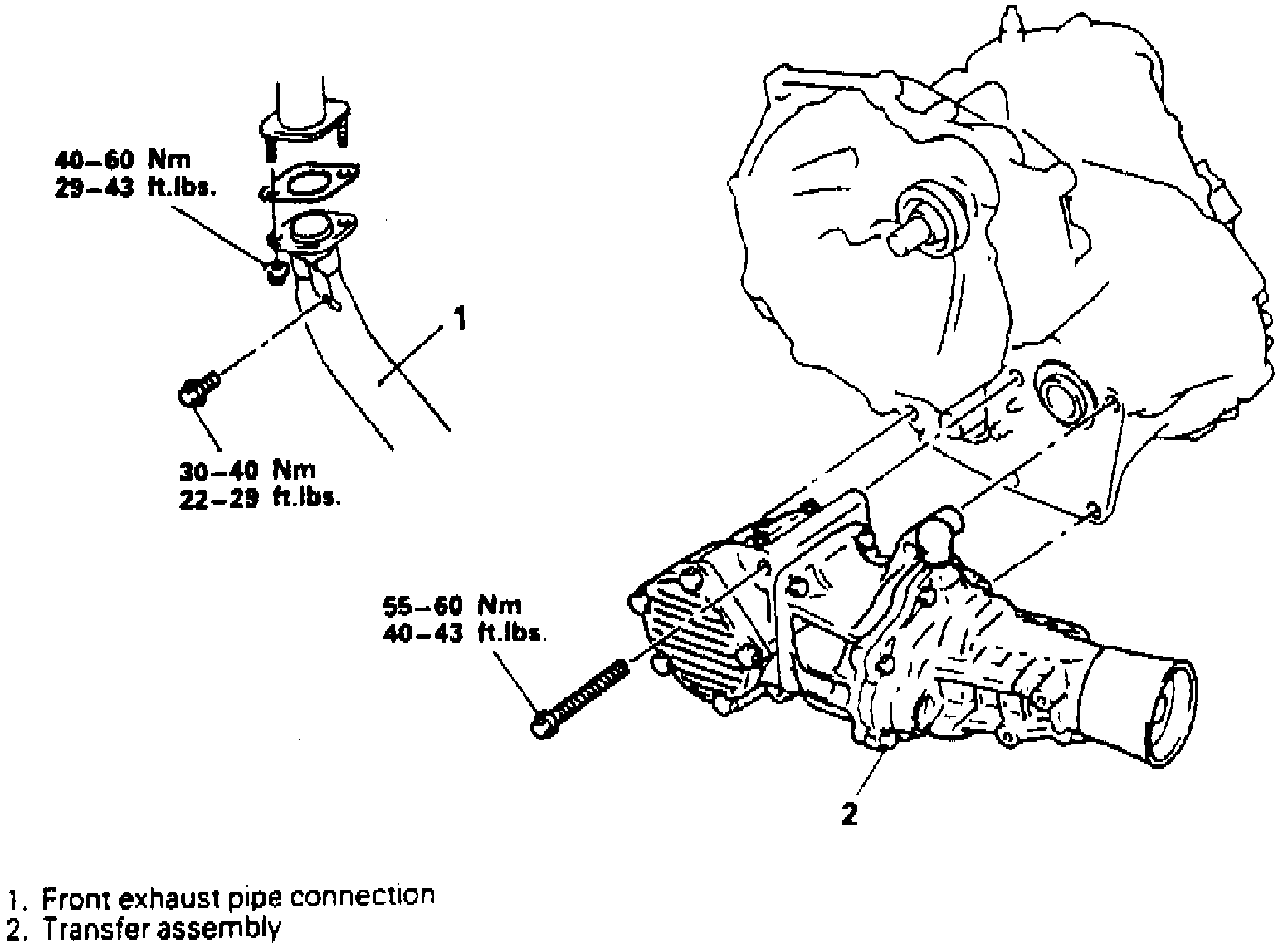

Fig.71 Transfer Assembly Removal:

2. Remove transfer assembly mounting bolts.
3. Remove driveshaft by moving transfer assembly to the left and lowering the front side. Suspend driveshaft with a piece of wire.
4. Reverse procedure to install, noting the following:
a. Torque transfer assembly mounting bolts to 40-43 ft. lbs.
b. Torque front exhaust pipe attaching nuts to 29-43 ft. lbs.
