Disassembly

1. Remove cover and cover gasket.

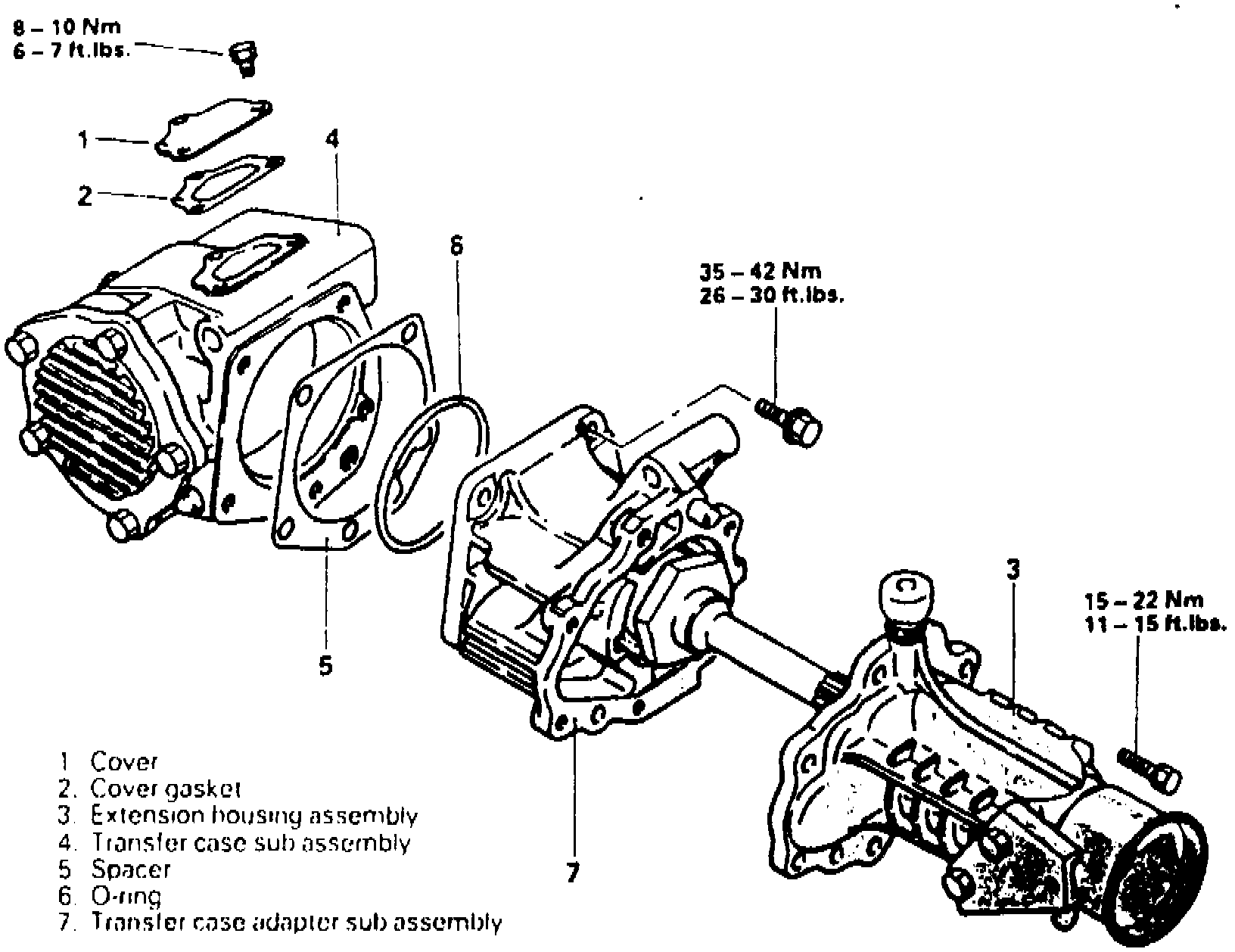

Fig.72 Exploded View Of Transfer Assembly:

2. Remove extension housing assembly and transfer case subassembly.
3. Remove spacer, O-ring and transfer case adapter subassembly.
