Transmission and Drivetrain: Testing and Inspection

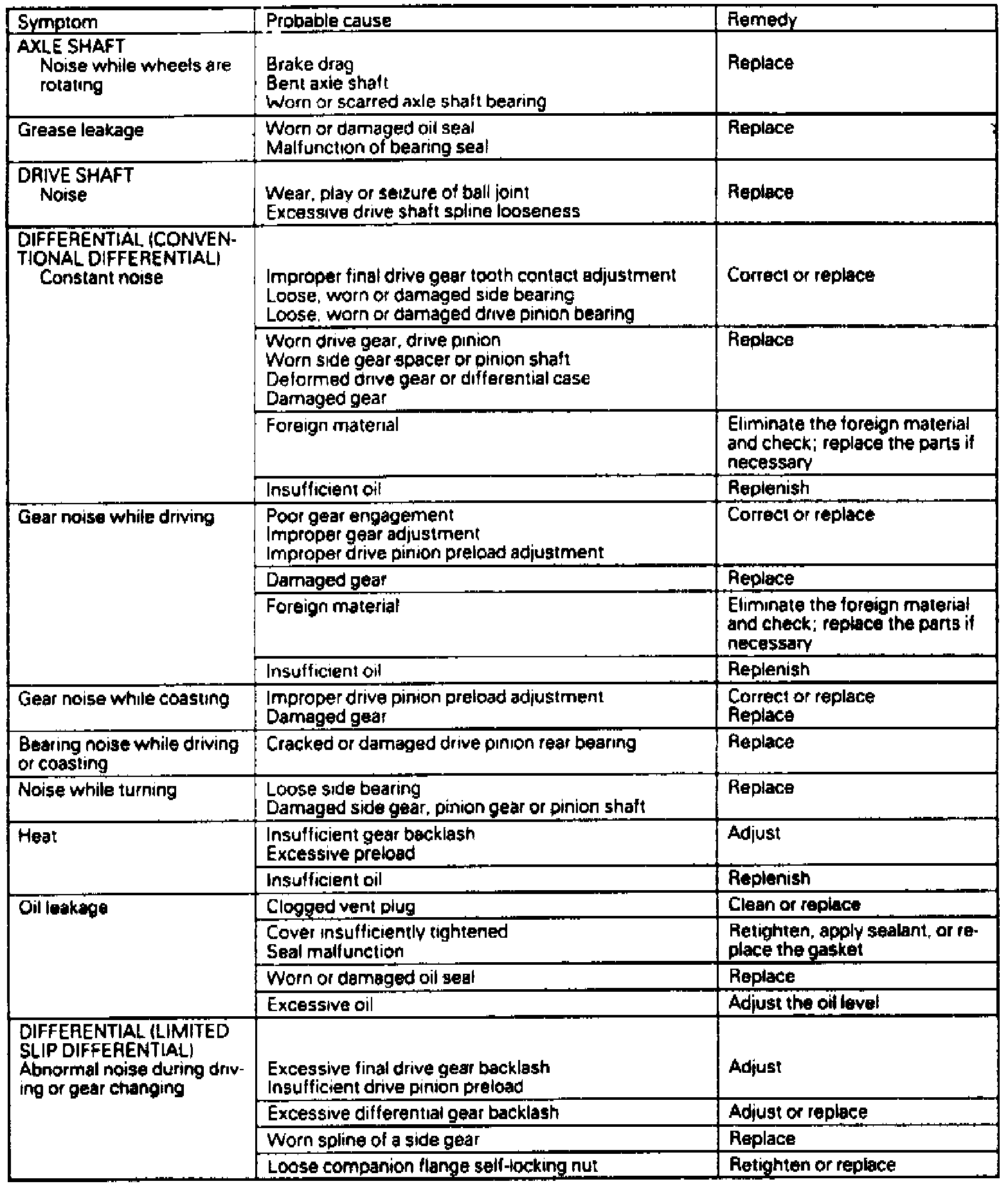

Fig.1 AWD Troubleshooting Chart Part 1/2:

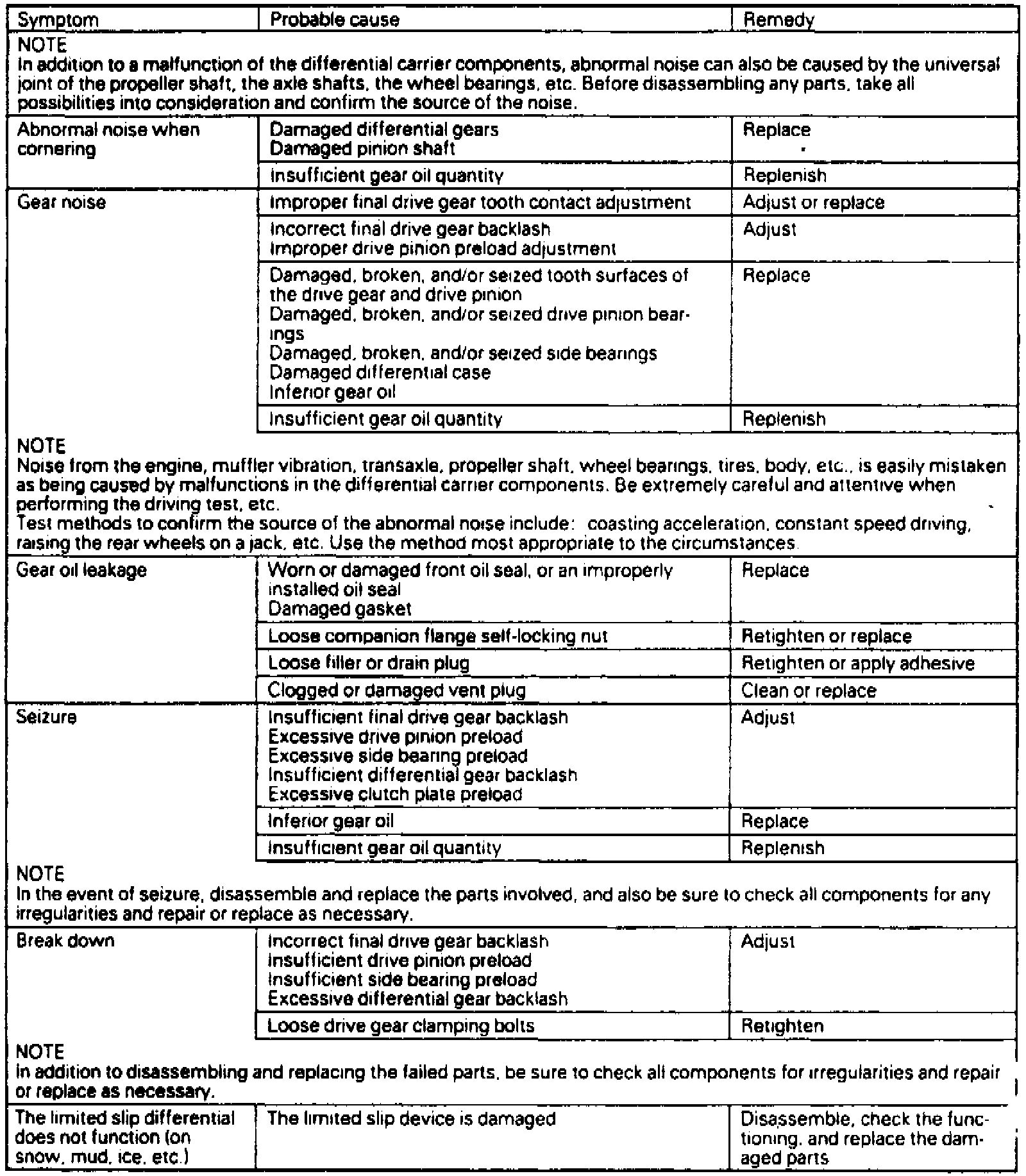

Fig.1 AWD Troubleshooting Chart Part 2/2:
