Center Support: Service and Repair

1. Remove U joint journal or Lobro joint as described under "Lobro Joint, Joint Boot & Companion Flange or " U Joint Journals in this section.
2. Remove nut retaining companion flange or yoke.

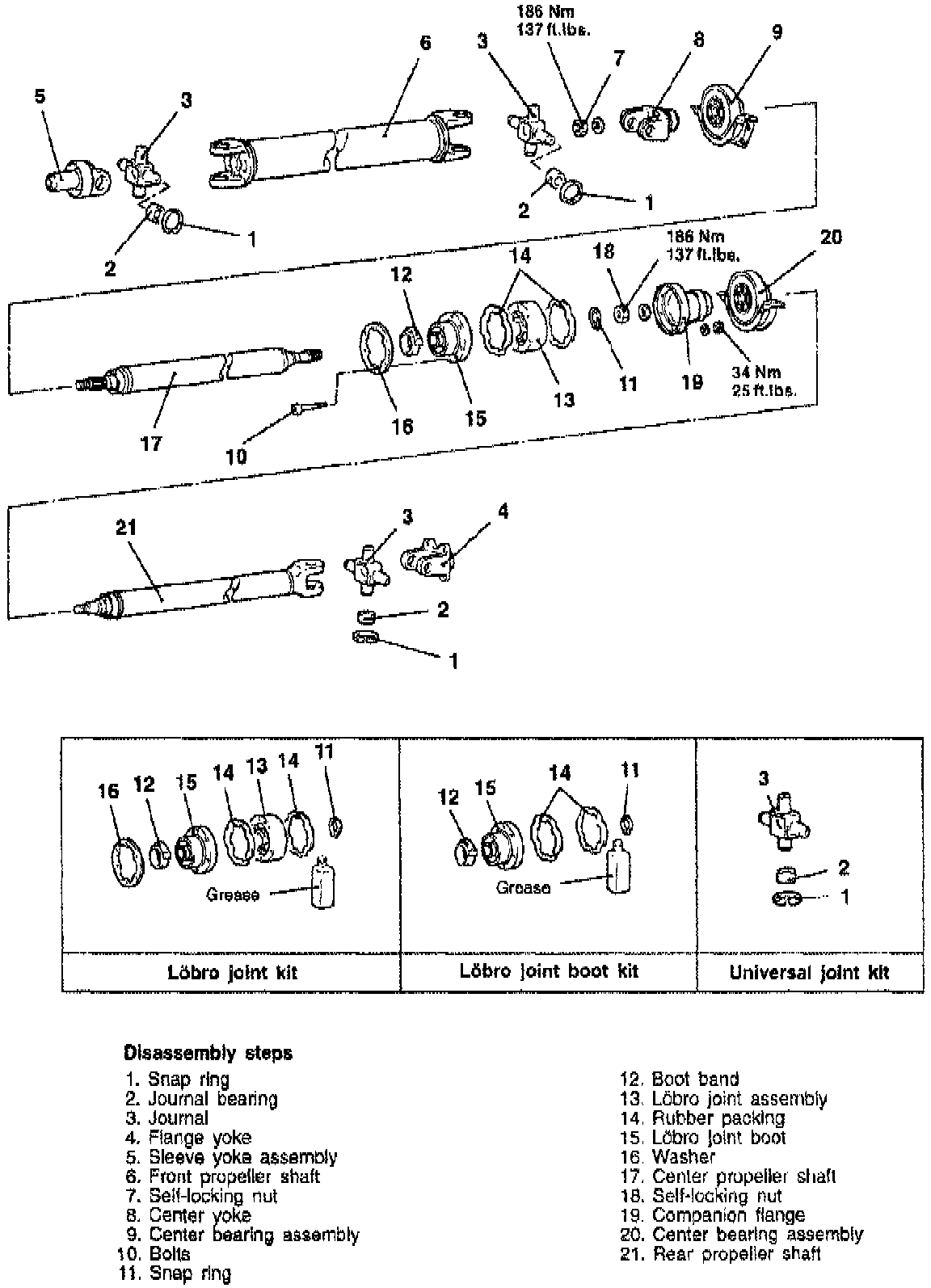

Fig.65 Exploded View Of Propeller Shaft:

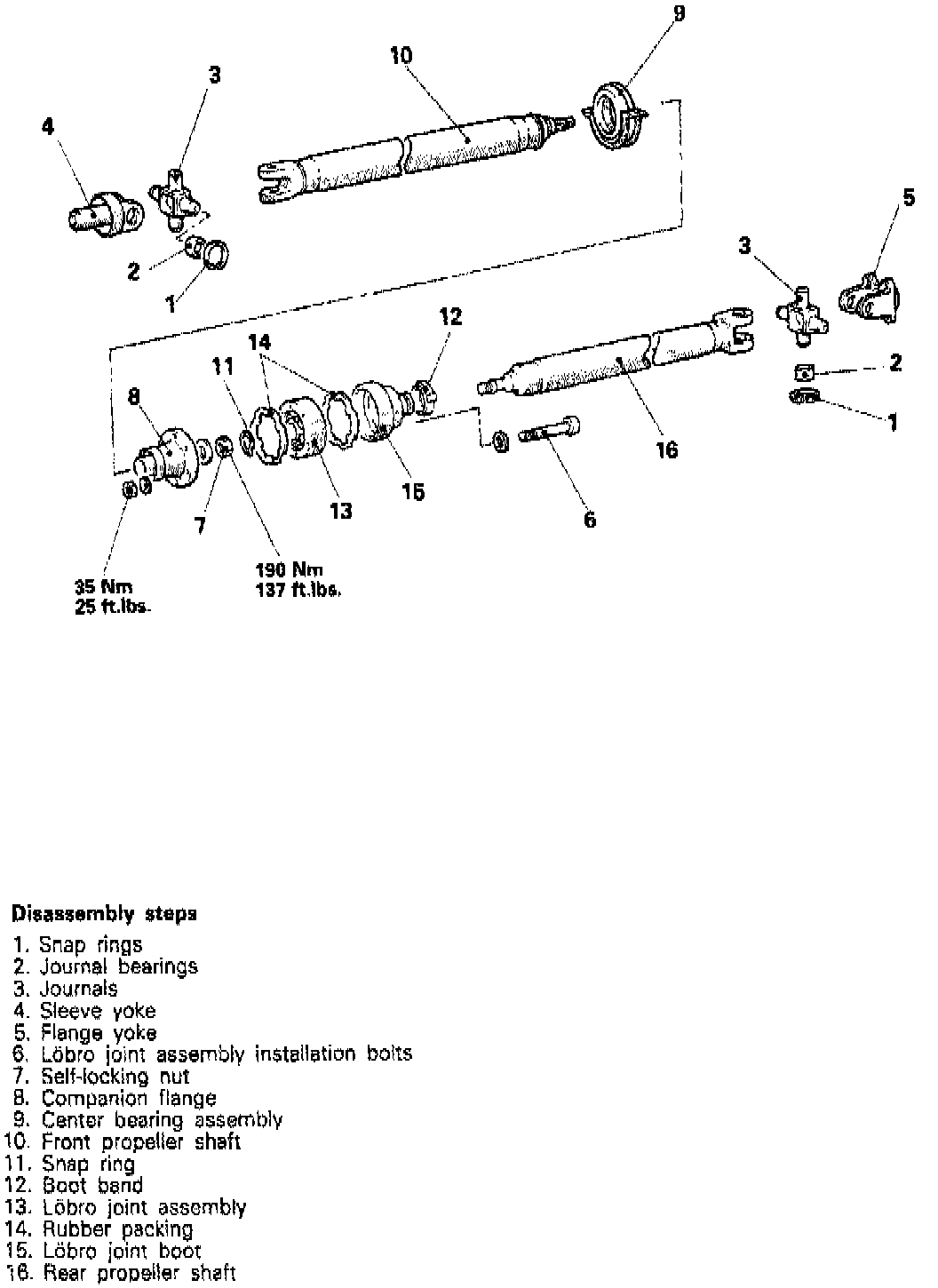

Fig.66 Exploded View Of Propeller Shaft:

Fig.67 Exploded View Of Propeller Shaft:

3. Using a suitable puller, remove companion flange or yoke from shaft.
4. Using a suitable puller, remove center bearing from shaft.
5. Reverse procedure to install, noting the following:
a. Using a suitable socket or tube and hammer, drive center bearing then companion flange or yoke onto shaft.
b. Install washer and nut, then torque nut as shown.
