Differential Carrier Replacement

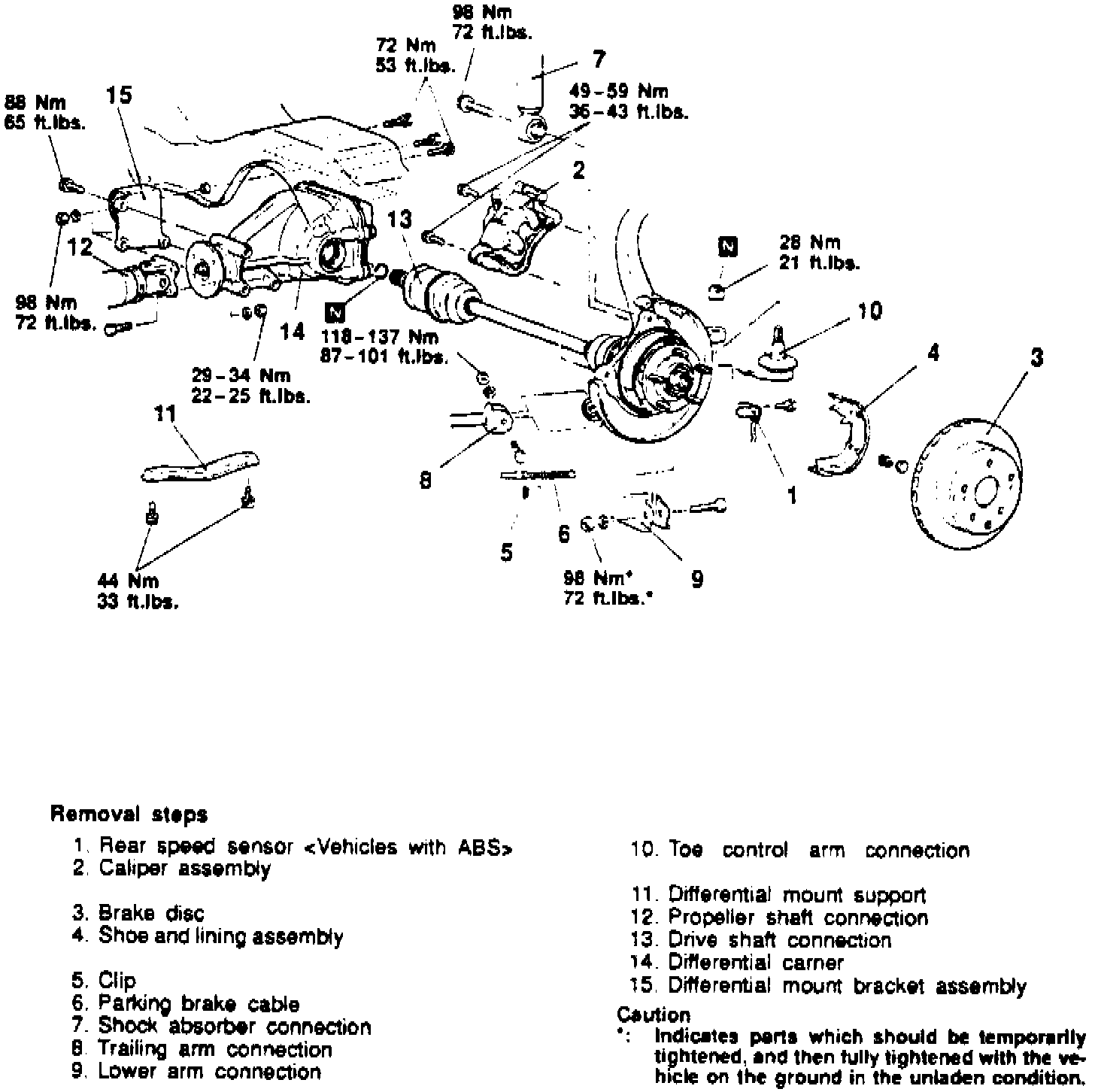

Fig. 5 Differential Carrier Assembly:

Replace differential carrier in numbered sequence shown, noting the following:
1. Remove rear axle shaft as described under Rear Axle Shaft Replacement.
2. Mark with mating marks, then disconnect propeller shaft assembly.
3. Suspend propeller shaft out of the way.
4. Support differential carrier with suitable jack for removal.
5. Reverse procedure to install.
