Service Note

Preremoval and Post-Installation Operation

- Transfer Oil Draining and Supplying
- Front Exhaust Pipe Removal and installation

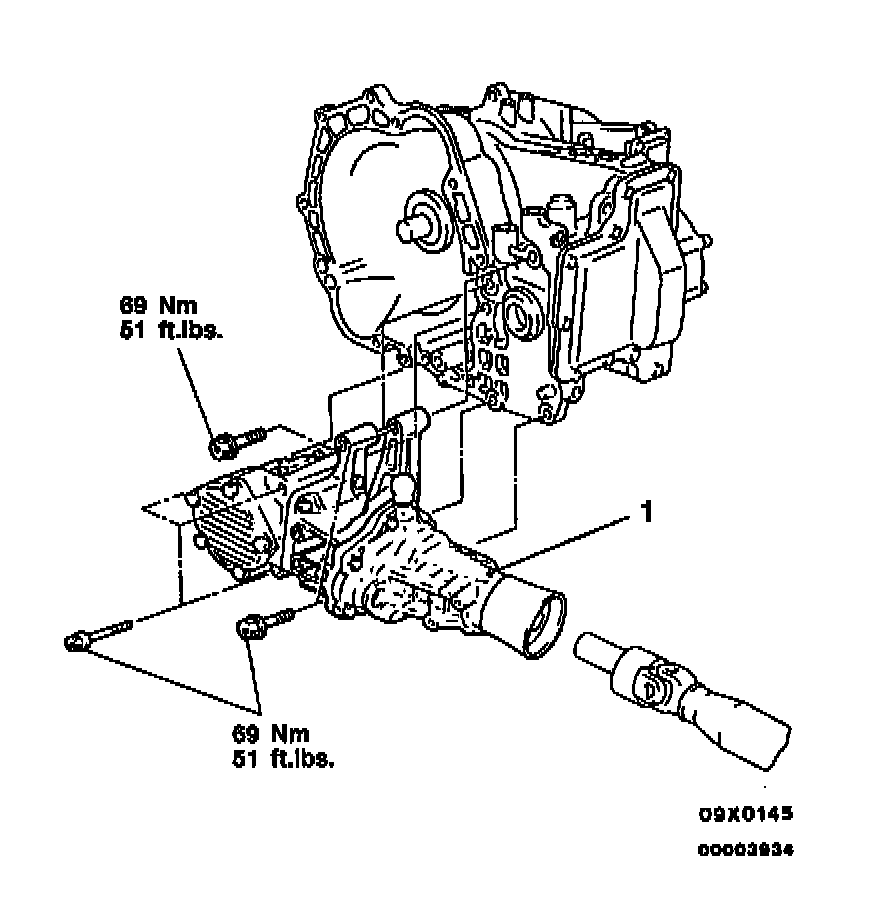

TRANSFER ASSEMBLY REMOVAL

Caution:

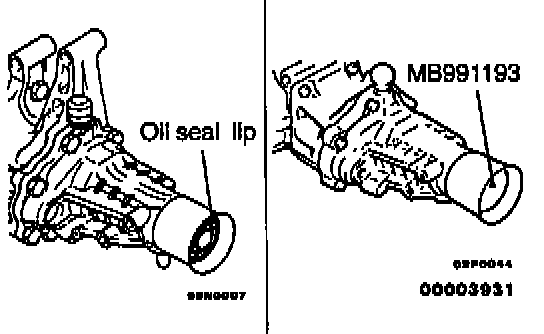

1. Do not damage the oil seal lip of the transfer.
2. Use the special tool to cover the transfer case to prevent oil from gushing out or foreign materials from getting into the transfer case.
