Assembly

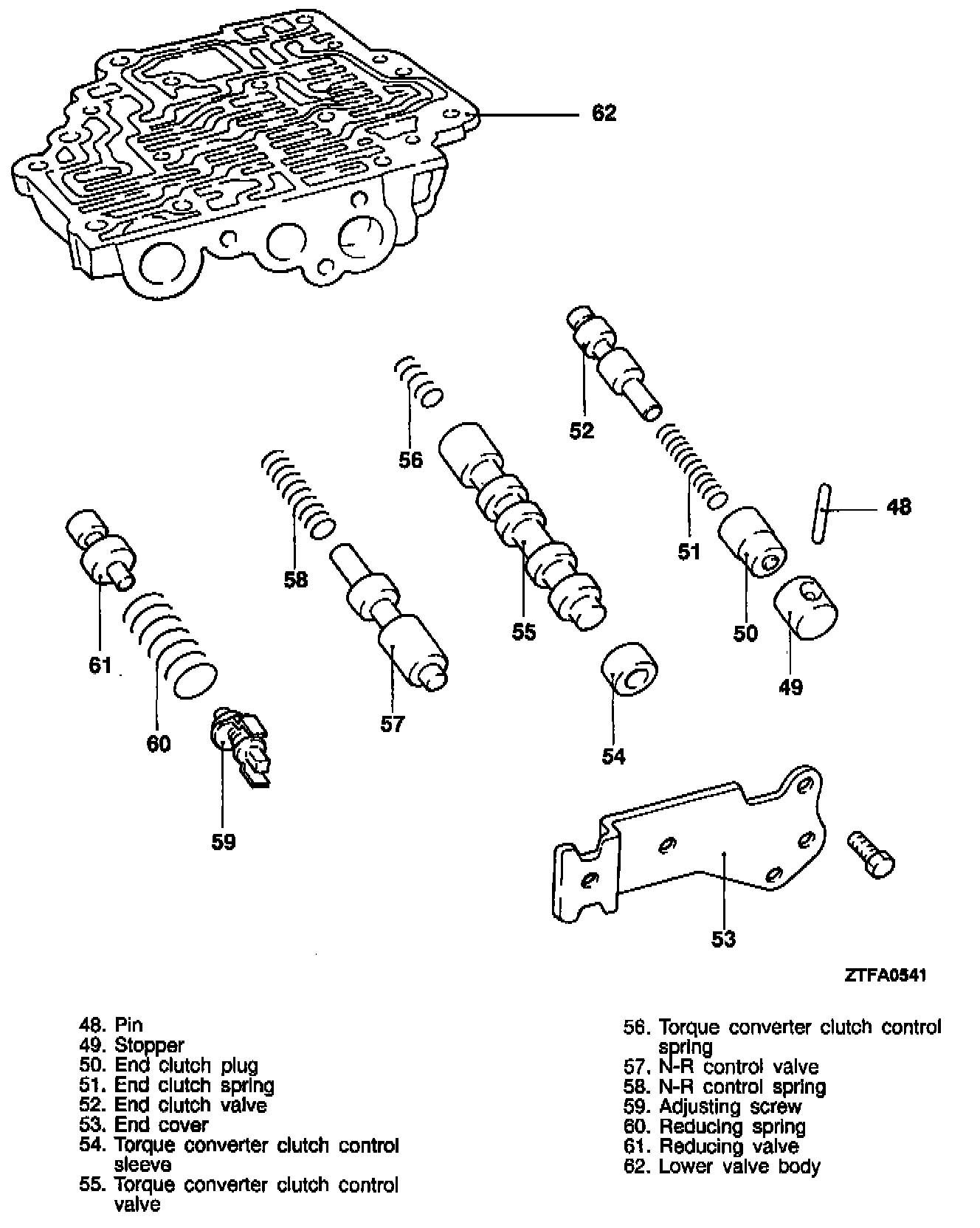

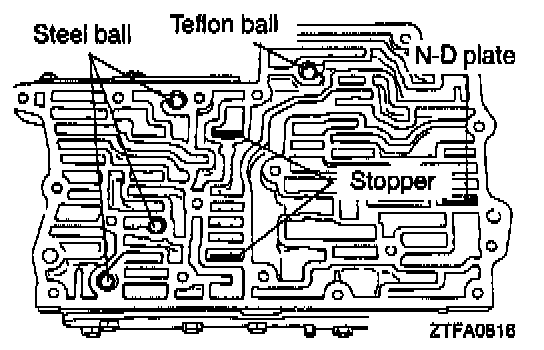

STOPPER PLATE/N-D PLATE/TEFLON BALL/STEEL BALL LOCATION

Install the stopper plates, N-D plate, Teflon ball, and steel balls into the upper valve body as shown.

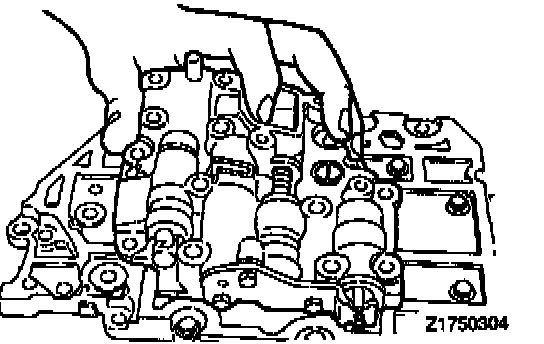

UPPER VALVE BODY SUB ASSEMBLY INSTALLATION

Install the special tool and secure the upper separating plate and intermediate plate with eight mounting bolts. Then, remove the special tool.

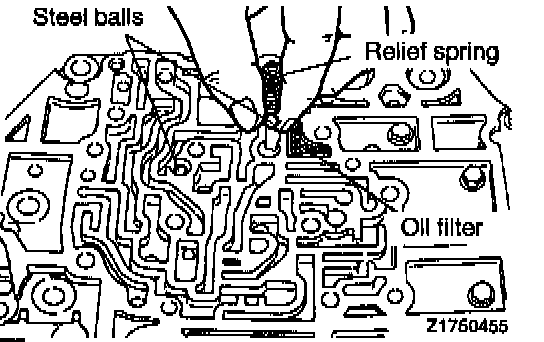

OIL FILTER/STEEL BALL/RELIEF SPRING INSTALLATION

Install the oil filter, two steel balls, and spring to the intermediate plate.

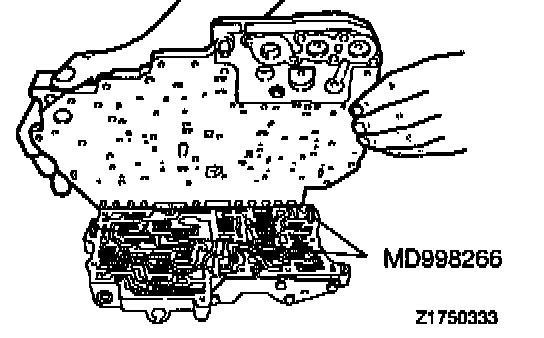

LOWER VALVE BODY SUB ASSEMBLY INSTALLATION

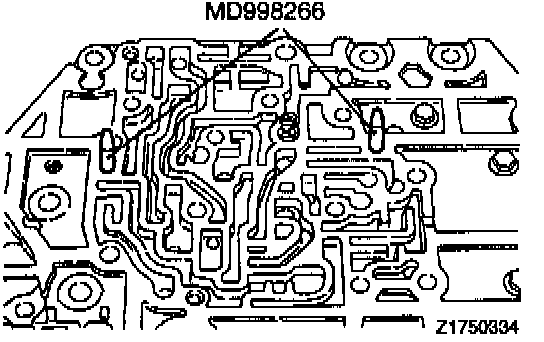

1. Mount the special tool to the intermediate plate.

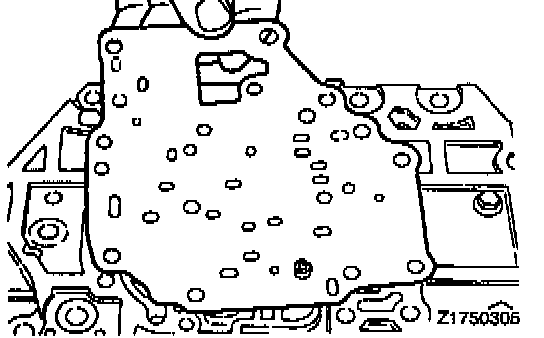

2. Install the separating plate.




3. Secure the lower valve body with mounting bolts and then remove the special tool.

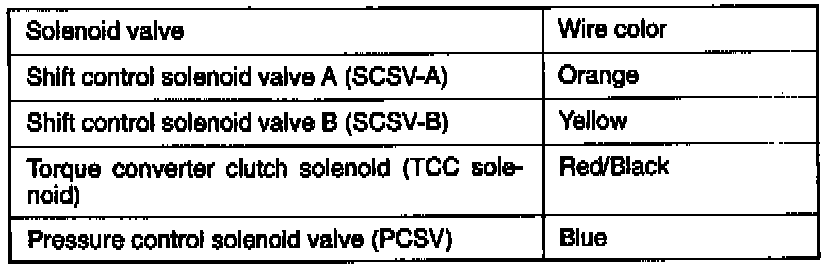

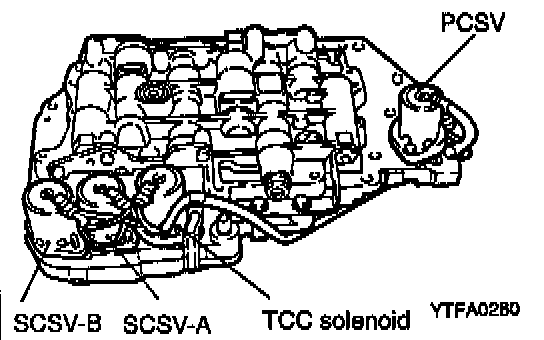

SOLENOID VALVE ASSEMBLY INSTALLATION




Install the solenoid valves as shown.
