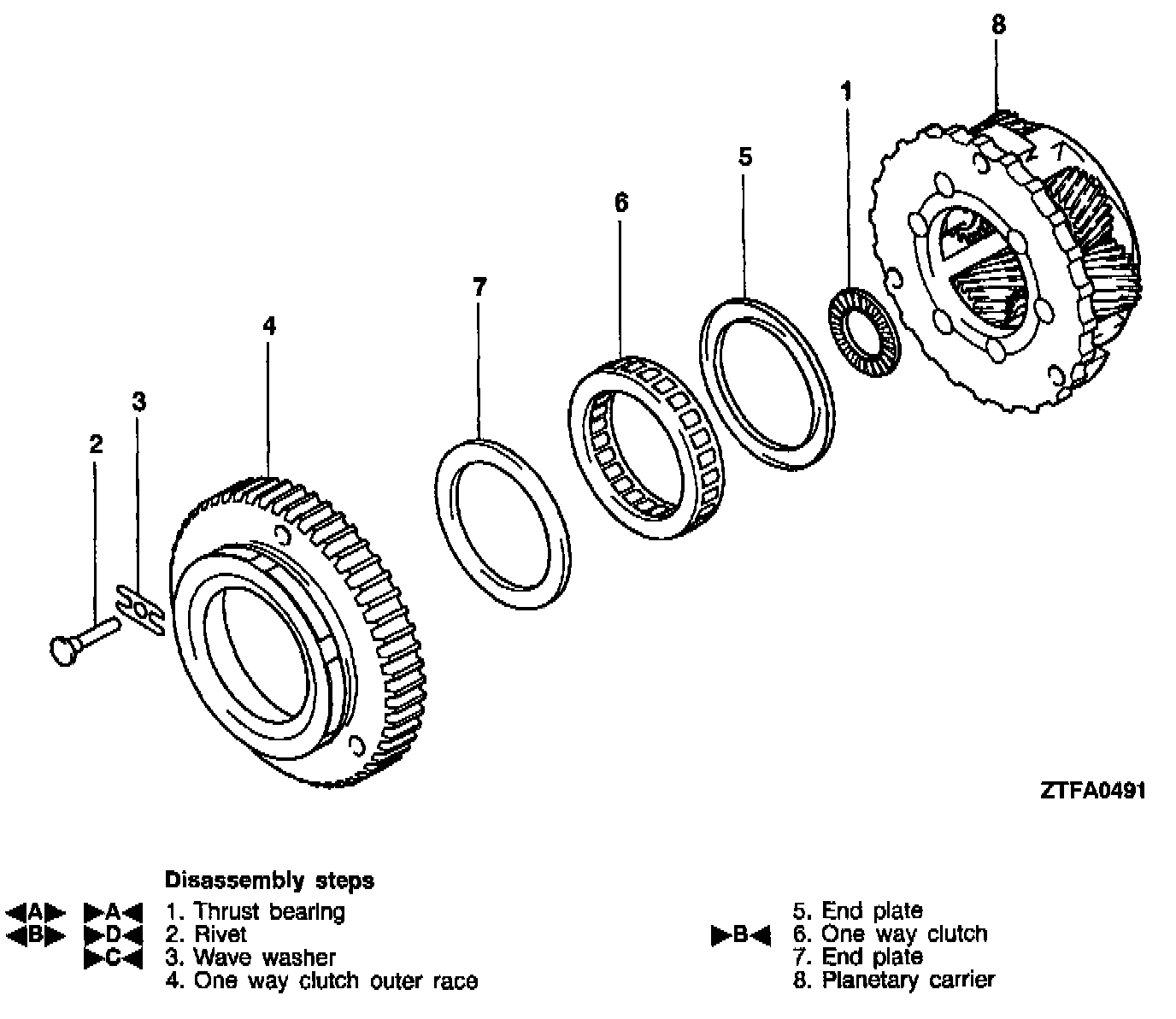

Disassembly

THRUST BEARING REMOVAL

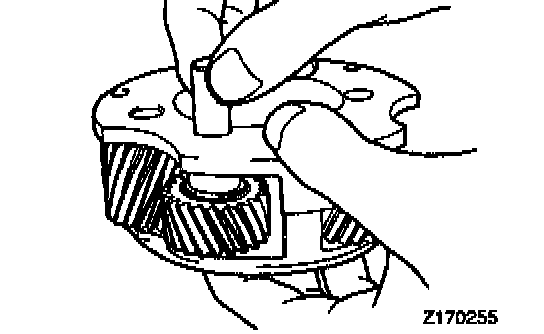

1. Remove one short pinion only. Use care not to drop and lose the 17 rollers in the short pinion. Do not remove the other short pinions.

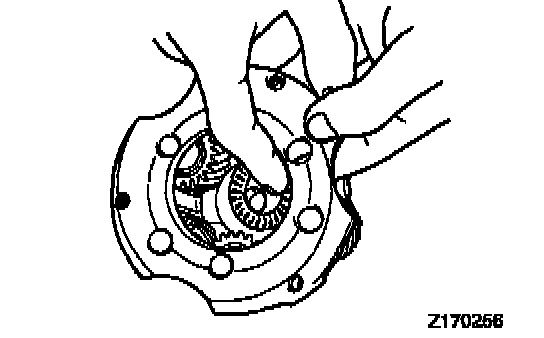

2. Remove the thrust bearing.




RIVET REMOVAL

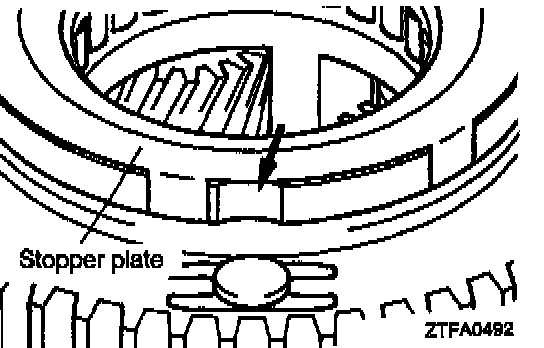

1. Shift the stopper plate to check that the rivet head does not hit it.

NOTE: Check that the stopper plate claw is not at the groove in the one-way clutch outer race.

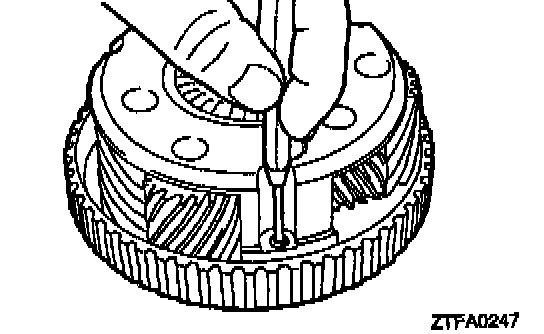

2. Use a pin punch to drive out the rivet.
