Assembly

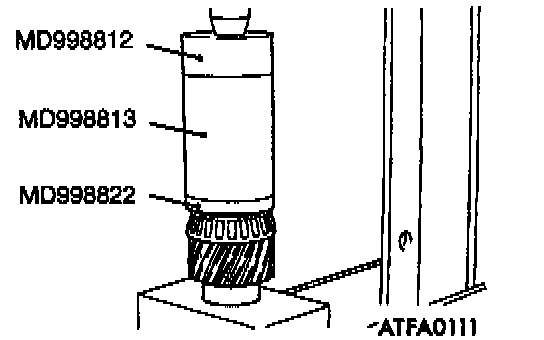

TAPER ROLLER BEARINGS INSTALLATION

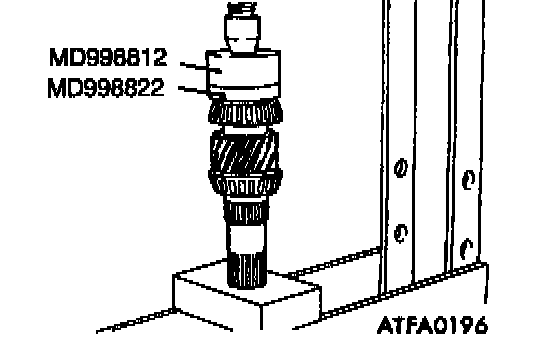

Use the special tool to press-fit the taper roller bearings on both ends of the front output shaft.
