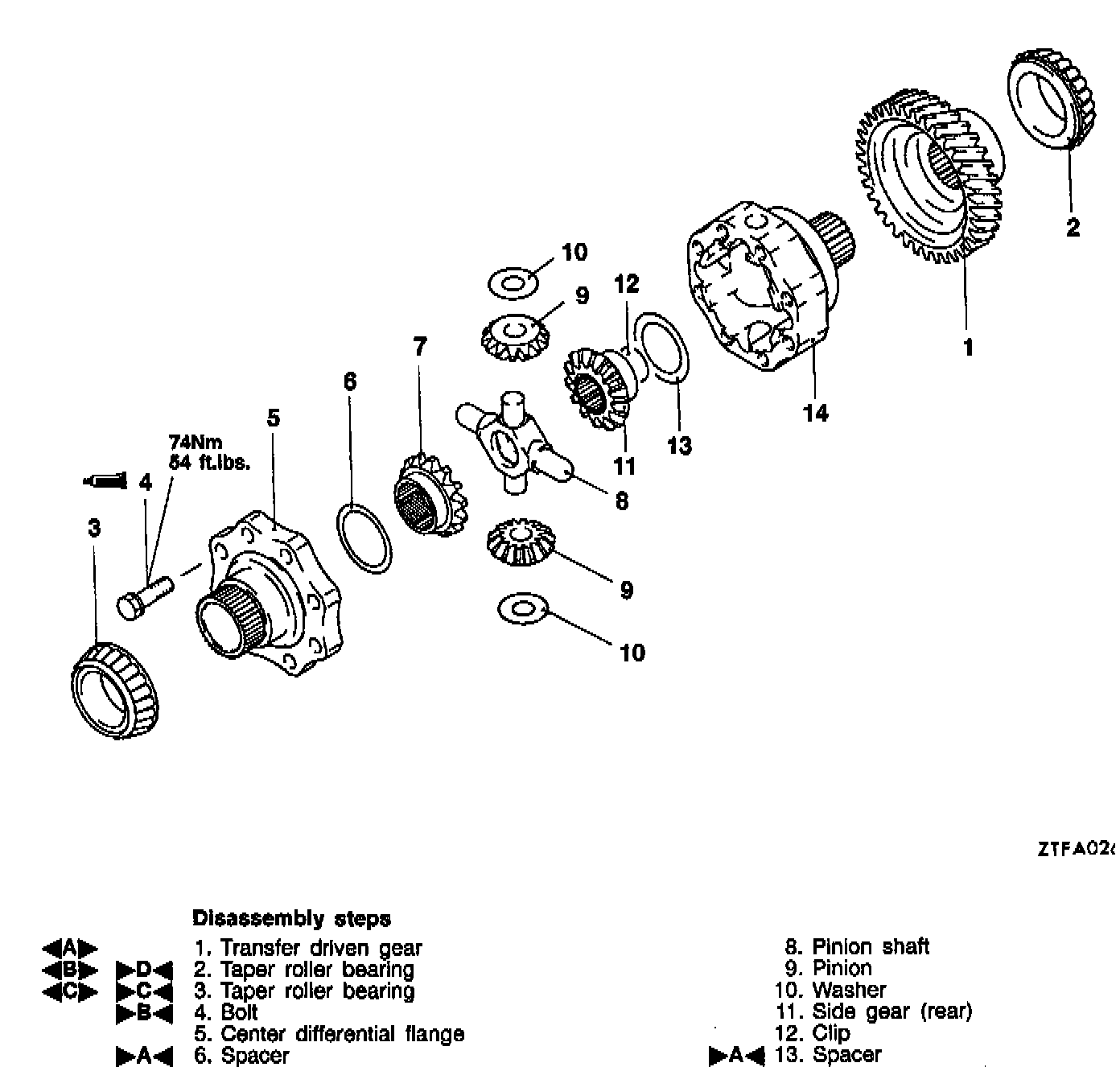

Disassembly

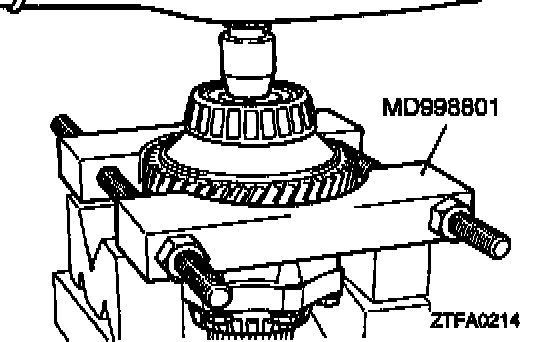

TRANSFER DRIVEN GEAR REMOVAL

Remove the transfer driven gear.

NOTE: If it is hard to remove, use the special tool to remove it.

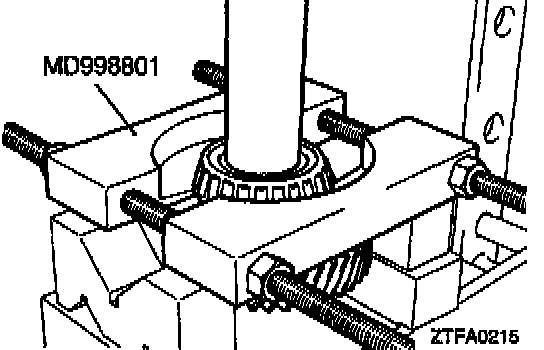

TAPER ROLLER BEARING REMOVAL

Use the special tool to remove the taper roller bearing from the transfer driven gear.

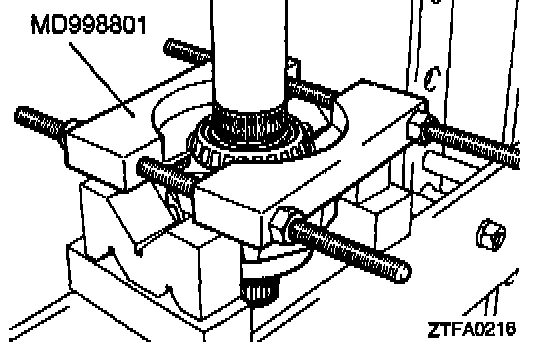

TAPER ROLLER BEARING REMOVAL

Use the special tool to remove the taper roller bearing from the center differential flange.
