Trailing Arm: Service and Repair

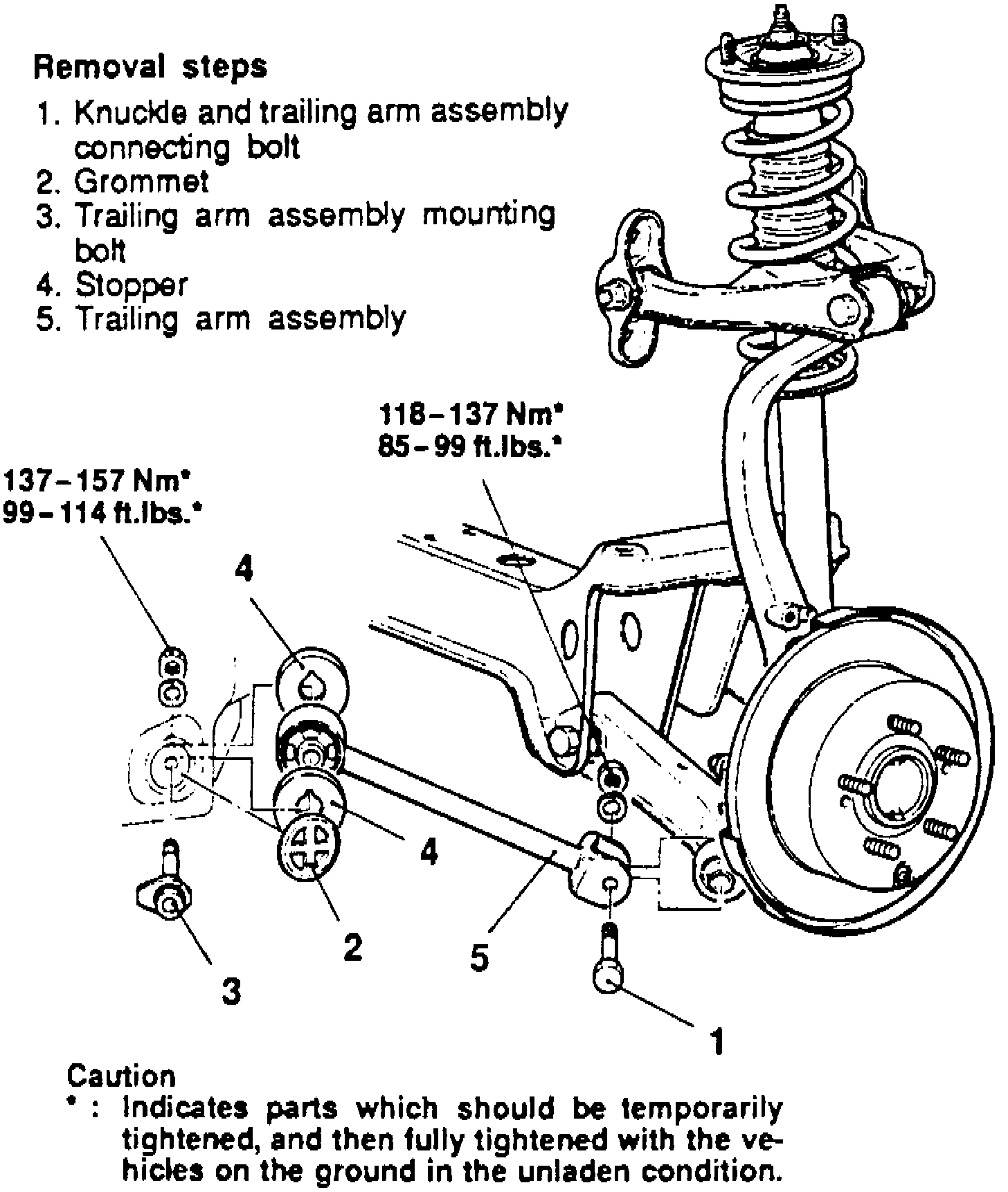

Fig. 24 Trailing Arm Assembly:

Remove trailing arm in numbered sequence, noting the following:
1. Inspect bushings and bolts for wear or damage.
2. Inspect trailing arm for bends or damage.
3. Reverse procedure to install.
