Rear

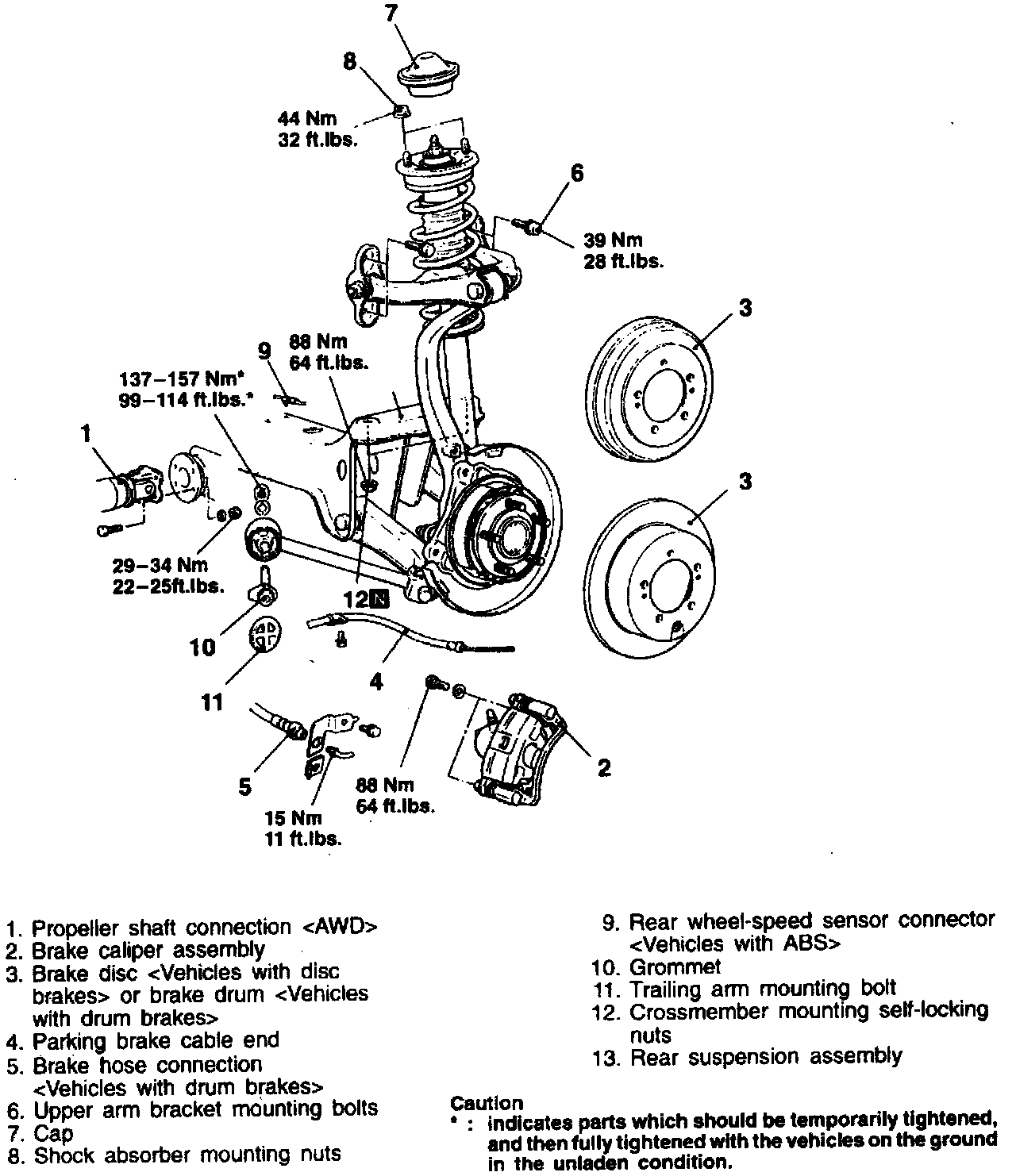

Fig. 10 Strut Assembly Removal:

Remove shock absorber assembly in numbered sequence, noting the following:
1. Jack up torsion axle and arm assembly in order to release tension. Place jack at center of axle beam. Ensure jack does not contact lateral rod.
2. Reverse procedure to install.

ASSEMBLY SERVICE

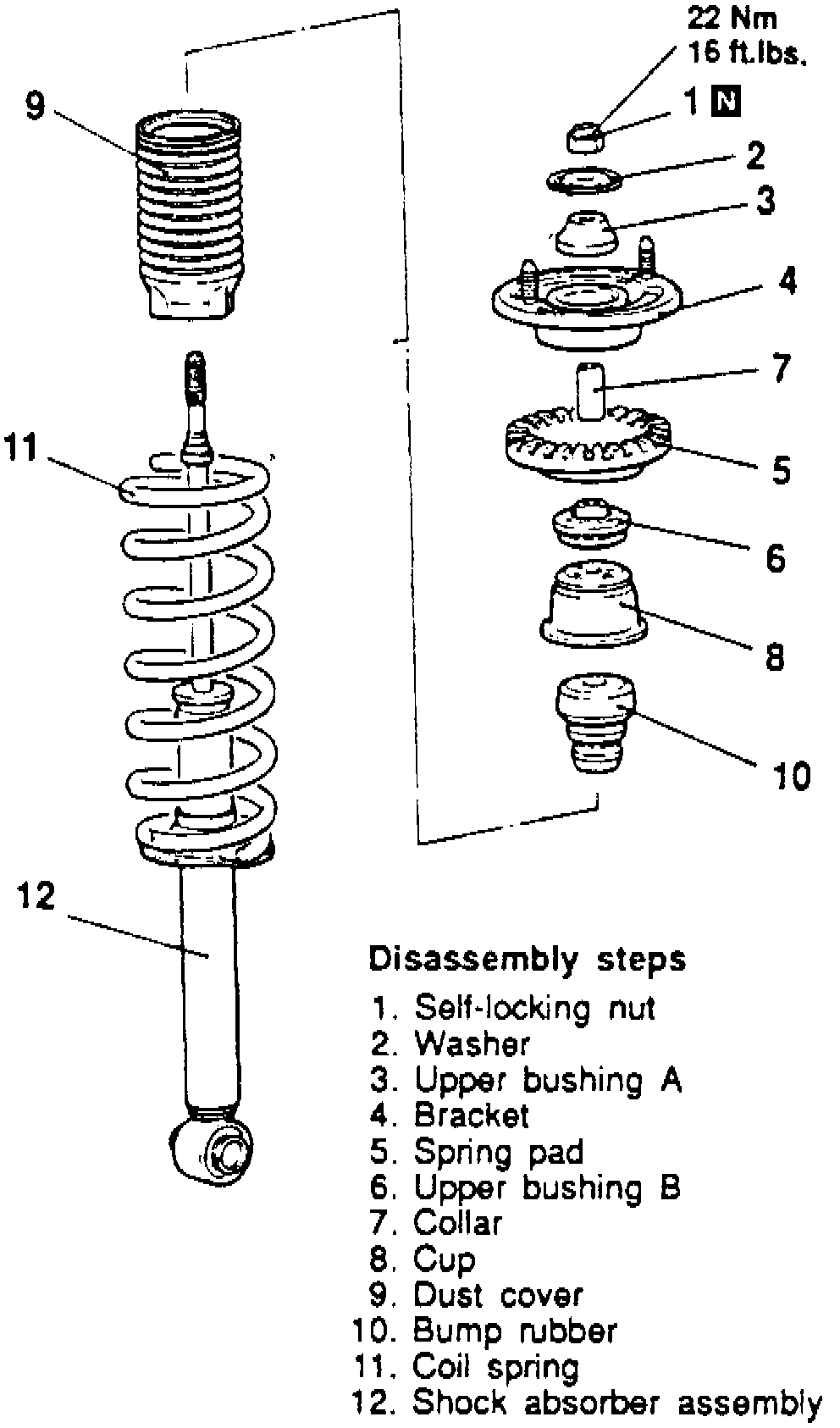

Fig. 14 Exploded View Of Strut Assembly:

Disassemble strut assembly in numbered sequence shown, noting the following:
1. Compress spring using spring compression tools No. MB991237 and MB991239,
or equivalents, to ease in disassembly and assembly.
2. Ensure spring is properly seated in upper and lower spring seat when installing.

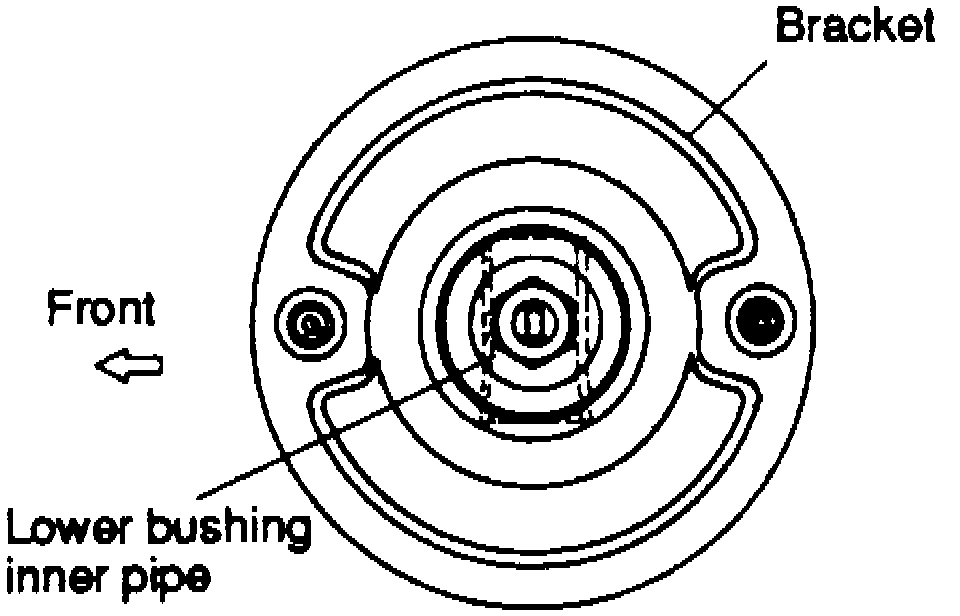

Fig. 15 Upper Spring Mount Installation:

3. Install strut upper bracket as shown, then tighten strut rod nut to specifications.
