Rear

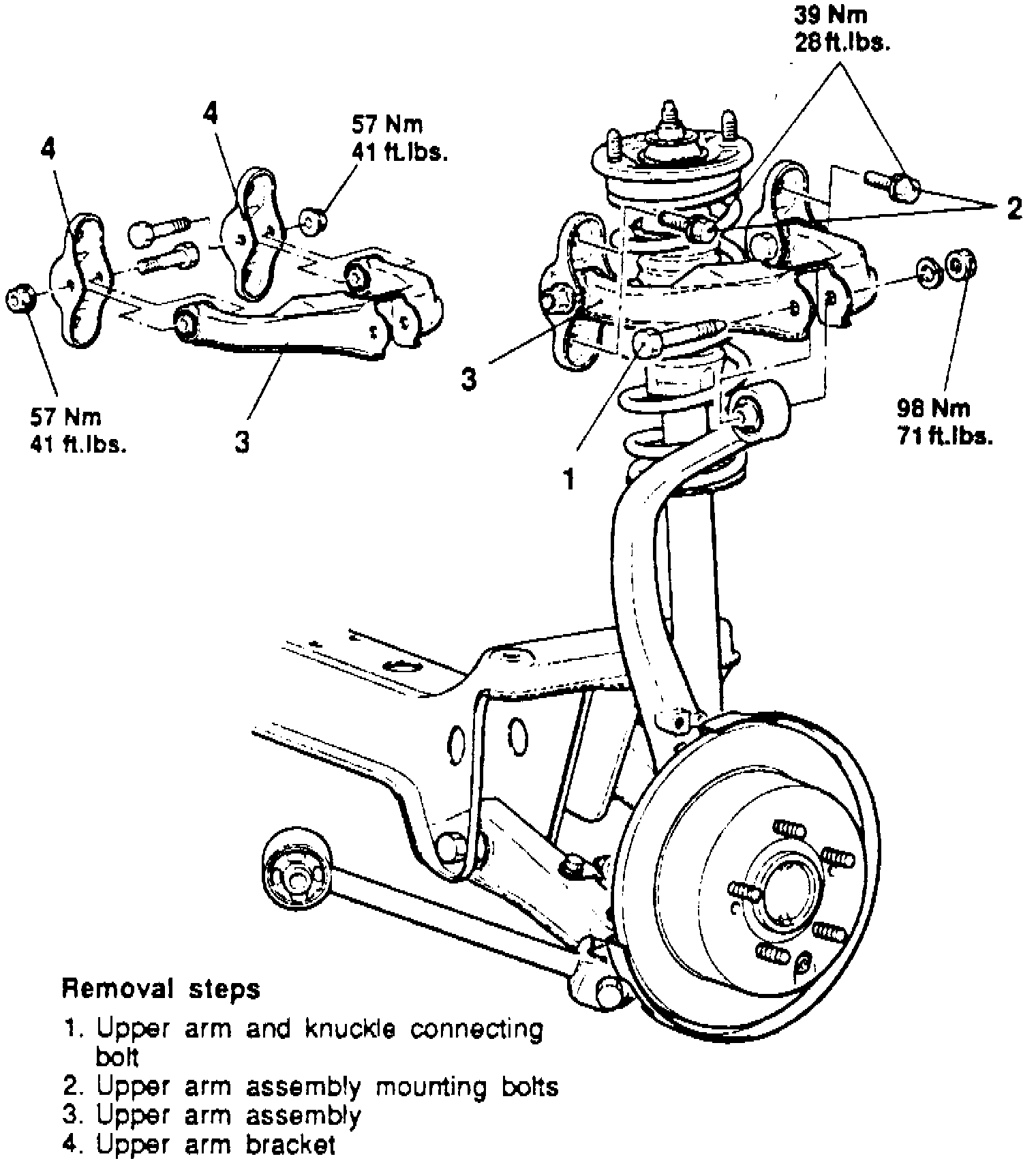

Fig. 17 Upper Arm Replacement:

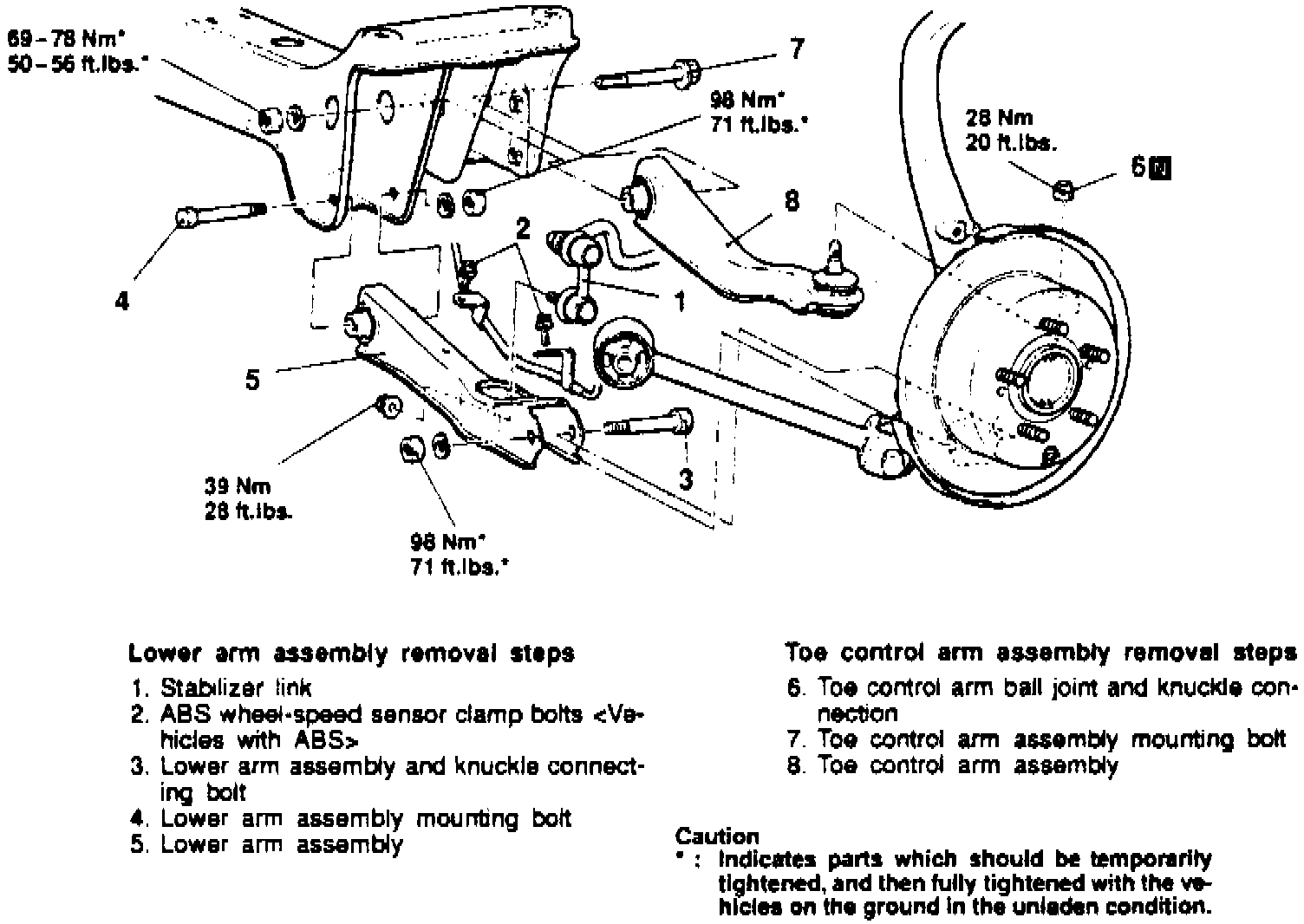

Fig. 18 Lower Arm Replacement:

Remove upper and lower arm in numbered sequences, noting the following:
1. Loosen, but do not remove self-locking nut.
2. Inspect all bushings and bolts for wear and damage.
3. Reverse procedures to install
