Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Testing and Inspection
>>
Flow of Diagnosis
>>
Power Steering Troubleshooting Guide
Power Steering Troubleshooting Guide

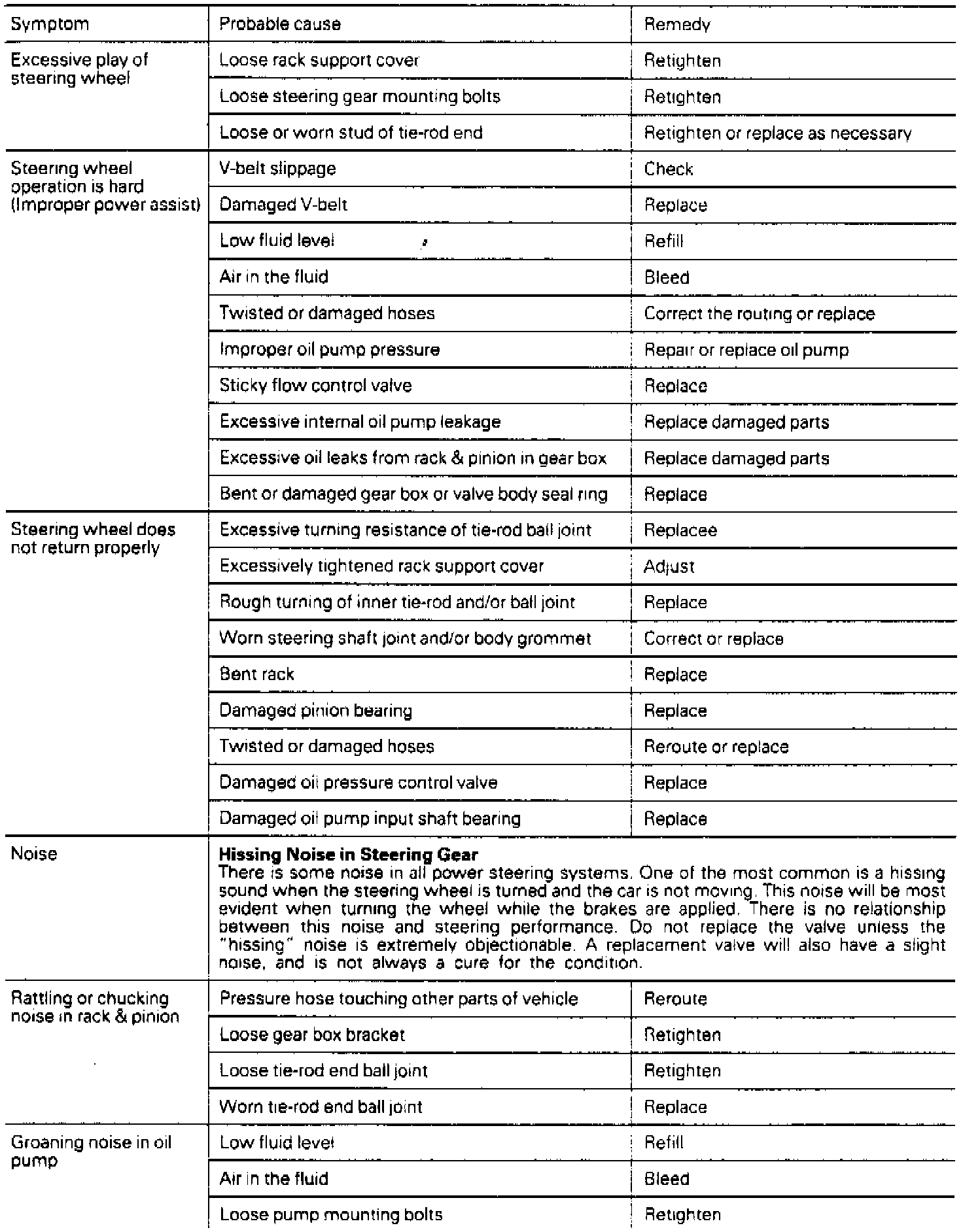

Fig.1 Power Steering Troubleshooting:
