Steering Wheel: Service and Repair

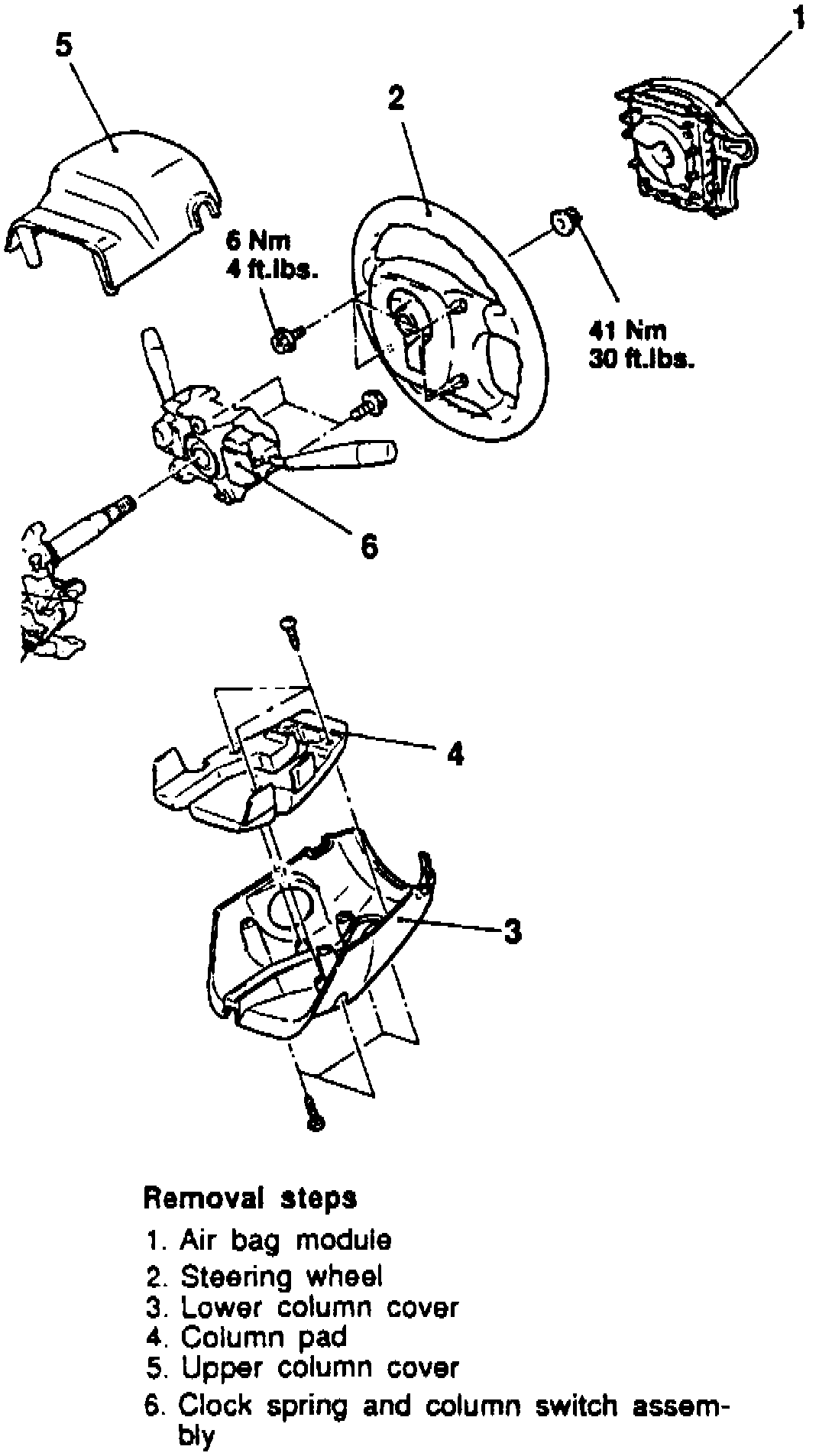

Fig. 8 Steering Wheel Removal:

1. Remove air bag module.
2. Remove steering wheel attaching bolt.
3. Remove steering wheel using suitable wheel puller.
CAUTION:
Do not use hammer as this may damage the collapsible mechanism.
4. Reverse procedure to install.
