Power Steering Gear Replacement

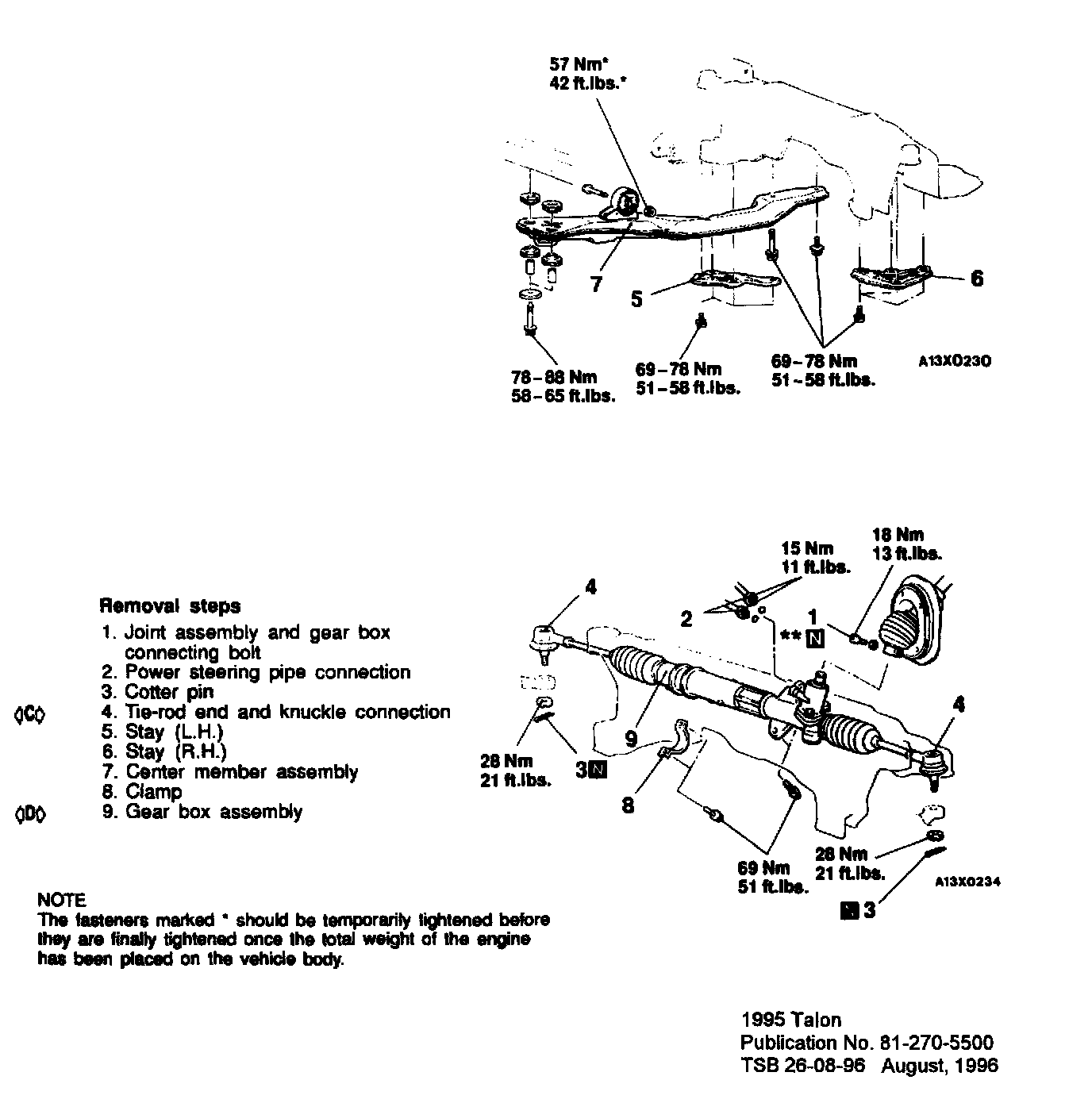

Fig. 15 Removing Rack & Pinion. Models w/Manual Steering:

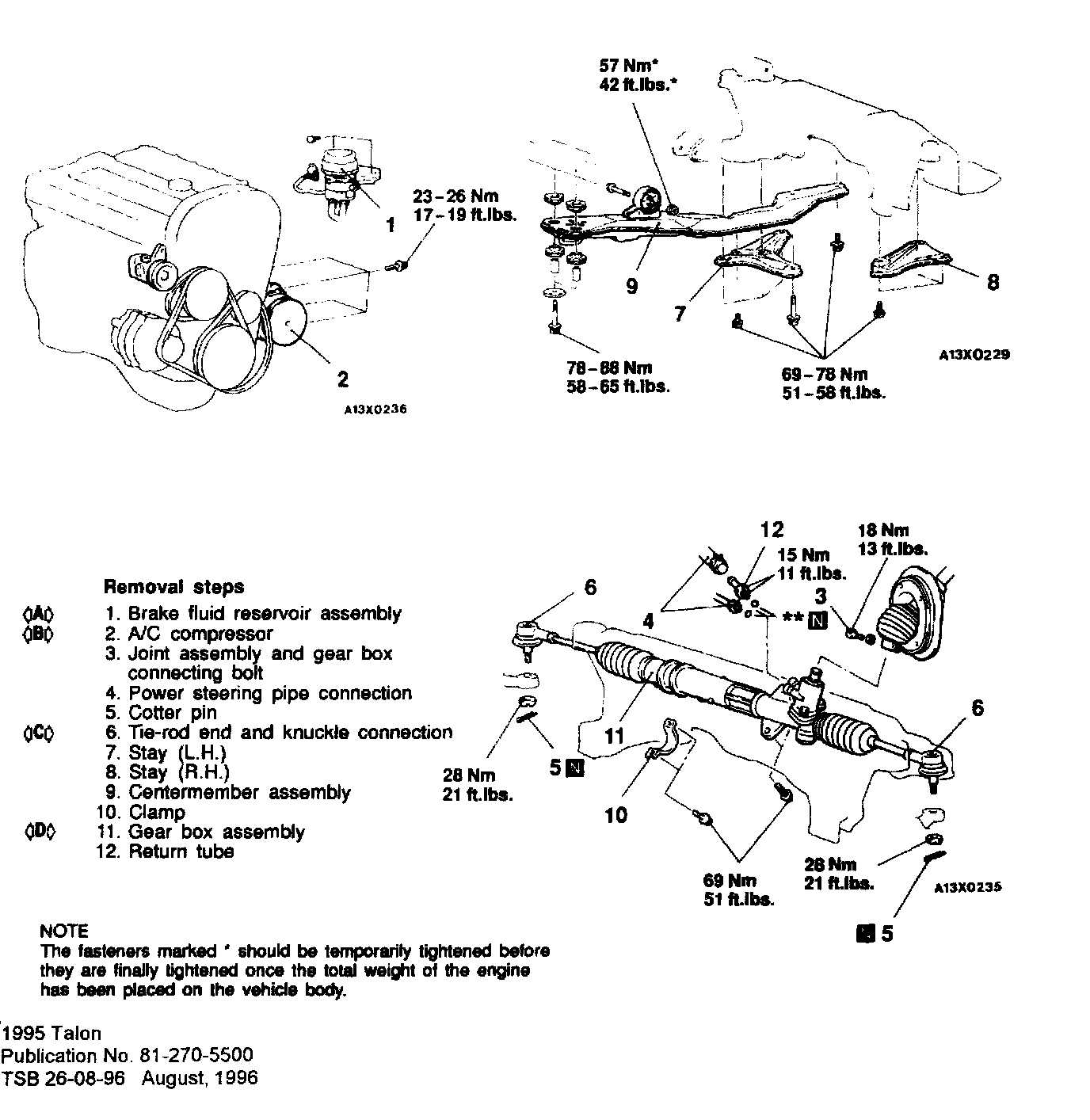

Fig. 16 Removing Rack & Pinion. Models w/Power Steering:

Remove rack & pinion in numbered sequence noting the following:
1. Turn rack completely to right, the disconnect gearbox from crossmember.
2. While tilting gearbox downward, remove from left side.
3. Reverse procedure to install.
