Power Steering Pump Removal and Installation

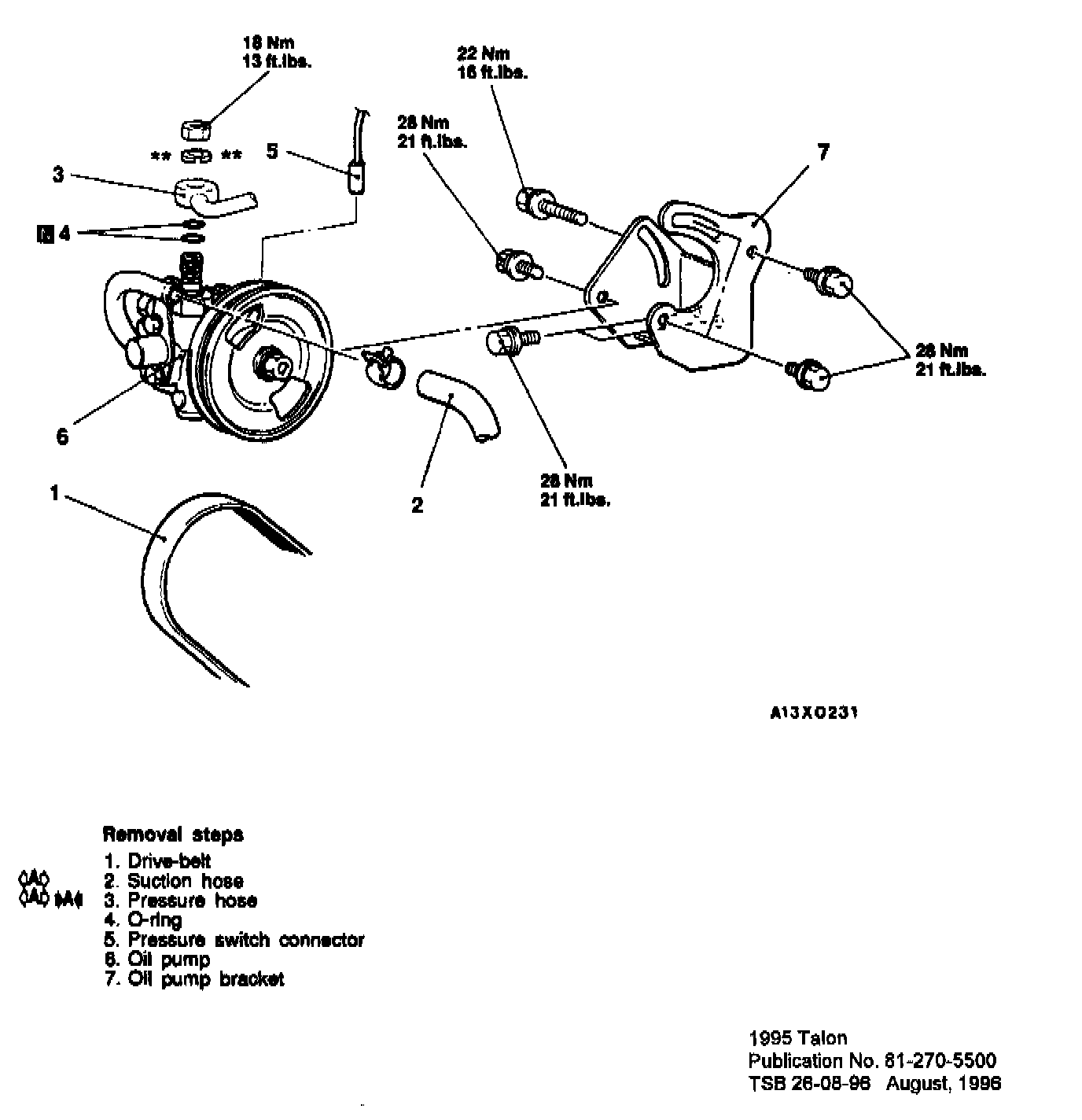

Fig. 41 Power Steering Pump Removal:

Remove steering pump in numbered sequence, noting the following:
1. Remove reservoir cap and disconnect return hose to drain fluid.
2. Raise and support vehicle.
3. Cover alternator (located under oil pump) if any hoses are removed.
4. Reverse procedure to install. Ensure oil pump is installed in position toward front of bracket. Adjust belt tension using air conditioning tension pulley.
