Home >> Eagle >> 1996 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Relay >> Testing and Inspection >> Manual Transmission

Manual Transmission

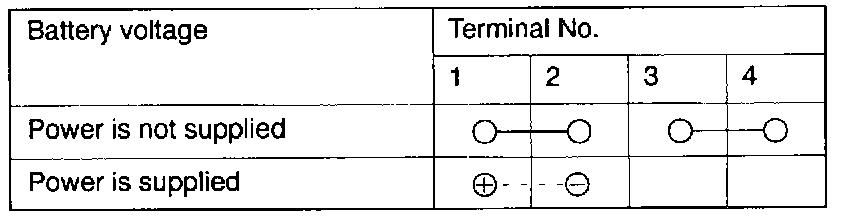

Starter Relay Continuity Check Table:

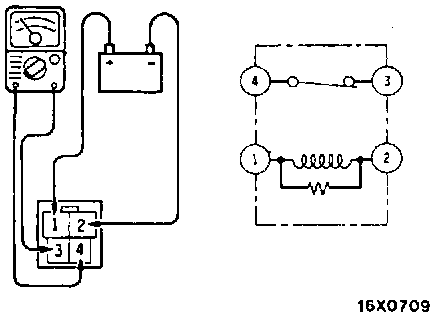

Starter Relay Continuity Check:
