Standard Waveform

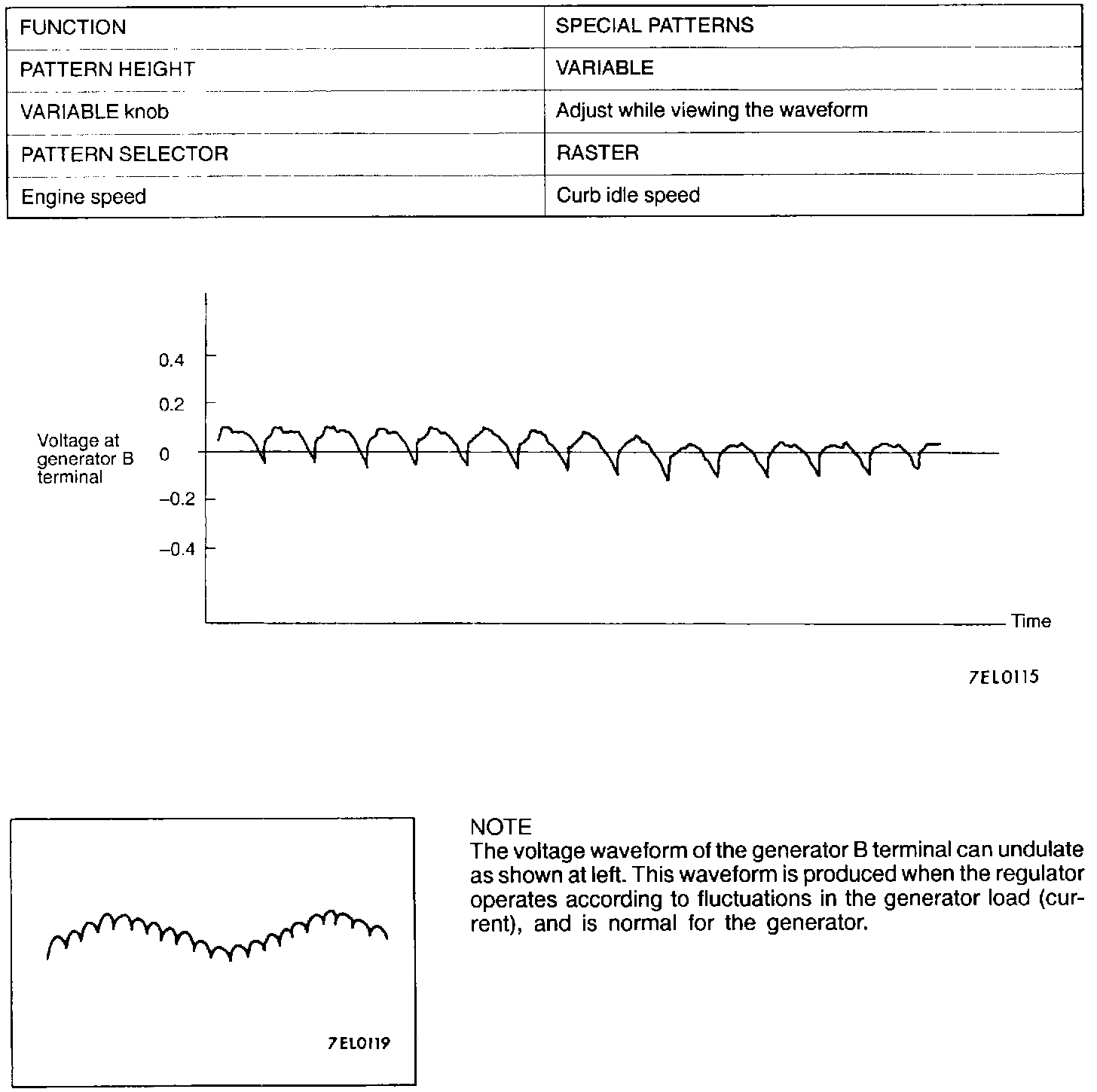

Standard Waveform Observation Conditions:

NOTE: Furthermore, the voltage waveform of the generator B terminal can undulate as shown at left. This waveform is produced when the regulator operates according to fluctuations in the generator load (current), and is normal for the generator.
