Rotor: Testing and Inspection

Rotor:

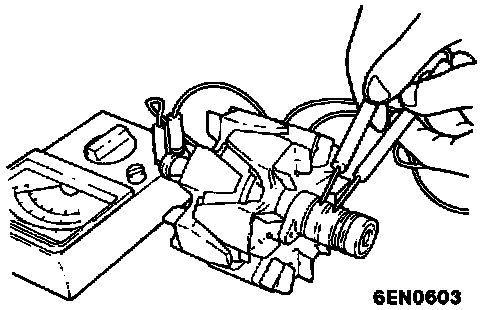

1. Check field coil for continuity. Check to ensure that there is no continuity between slip rings. If resistance is too small, it means that there is a short circuit. If there is no continuity or if there is a short circuit, replace rotor assembly.
Resistance value: Approx. 3 - 5 Ohm

Rotor:

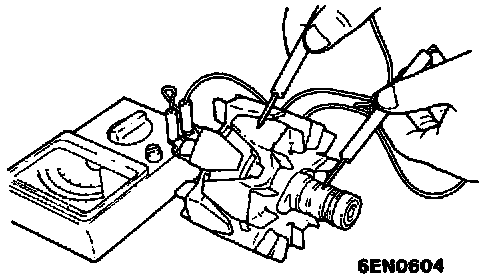

2. Check rotor coil for grounding. Check to ensure that there is no continuity between slip ring and core If there is continuity, replace rotor assembly.
