Alternator Pulley / Clutch: Service and Repair

1. Remove the bolts

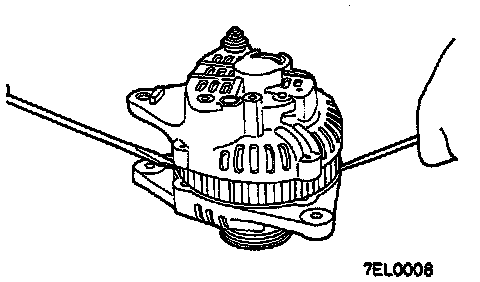

2. Insert plain screwdriver between front bracket and stator core and pry downward.

CAUTION: Do not insert screwdriver too deep, as there is danger of damage to stator coil.

Generator Pulley Removal:

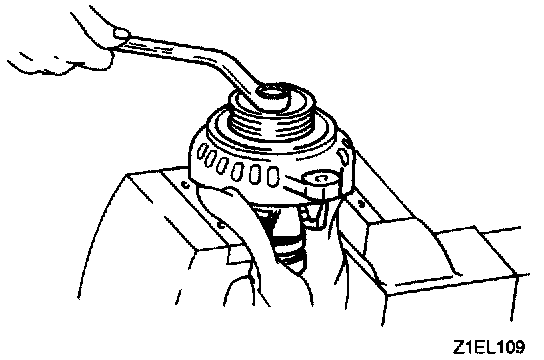

3. Clamp the rotor in a vise with soft jaws.
4. After removing the nut, remove the pulley and front bracket from the rotor.
