Transmission Speed Sensor: Testing and Inspection

PULSE GENERATOR A INSPECTION
1. Disconnect the pulse generator A connector.

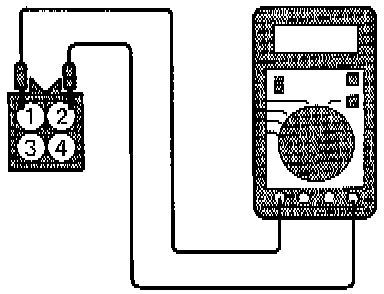

2. Measure the resistance between the pulse generator A side connector terminals 1 and 2.

Standard value: 215-275 Ohms [at 20°C (68°F)]

3. If the resistance is outside the standard value, replace the pulse generator assembly.





PULSE GENERATOR B INSPECTION
1. Disconnect the pulse generator B connector.

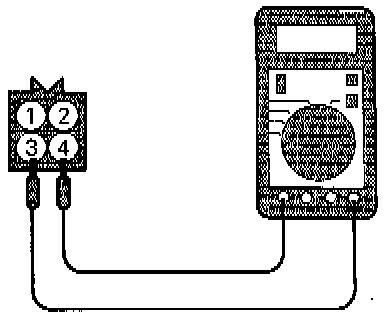

2. Measure the resistance between the pulse generator B side connector terminals 3 and 4

Standard value: 215-275 Ohms [at 20°C (68°F)]

3. If the resistance is outside the standard value, replace the pulse generator assembly.
