Turn Signal Switch: Testing and Inspection

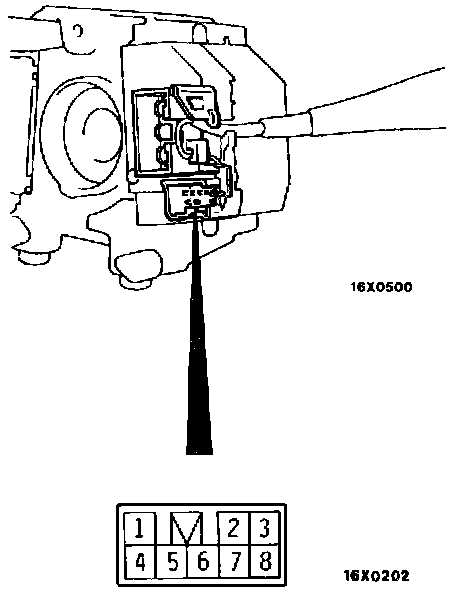

Turn Signal Light Switch:

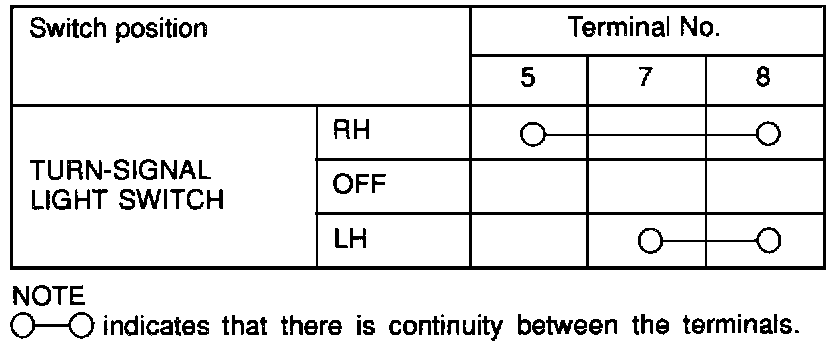

Turn Signal Light Switch Continuity Table:
