Seat Belt: Service and Repair

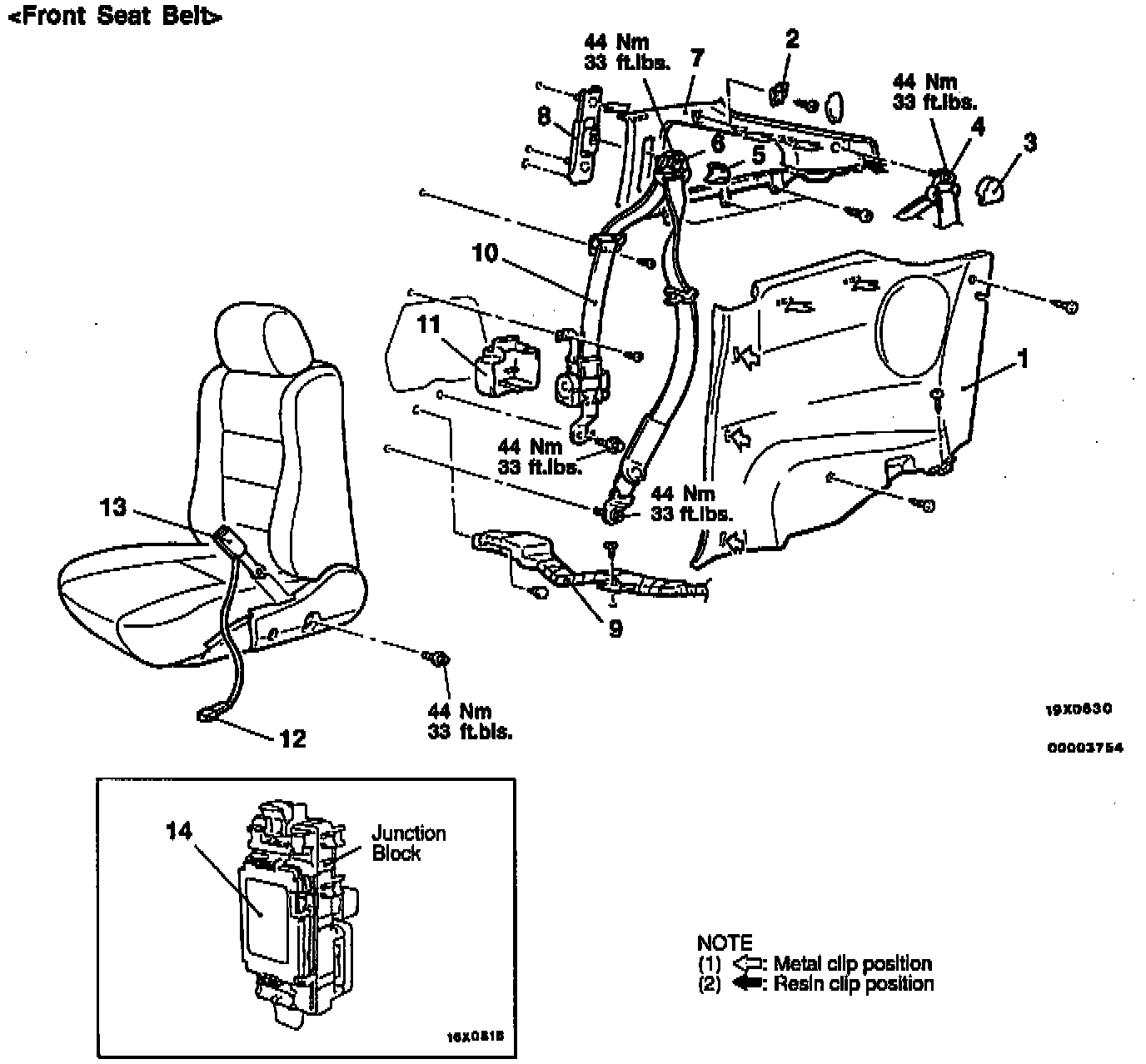

FRONT OUTER SEAT BELT REMOVAL STEPS
- Rear seat cushion
1. Quarter trim, lower
2. Coat hanger
3. Rear seat belt sash guide cover
4. Rear seat belt anchor plate
5. Front seat belt sash guide cover
6. Front seat belt anchor plate
7. Quarter trim, upper
8. Adjustable seat belt anchor
9. Fuel harness protector
10. Front outer seat belt
11. Seat belt retractor cover

FRONT INNER SEAT BELT REMOVAL STEPS
- Front seat assembly
12. Harness connector (driver's side)
13. Front inner seat belt

ETAC-ECU (SEAT BELT WARNING LIGHT TIMER AND BUZZER) REMOVAL
14. ETACS-ECU

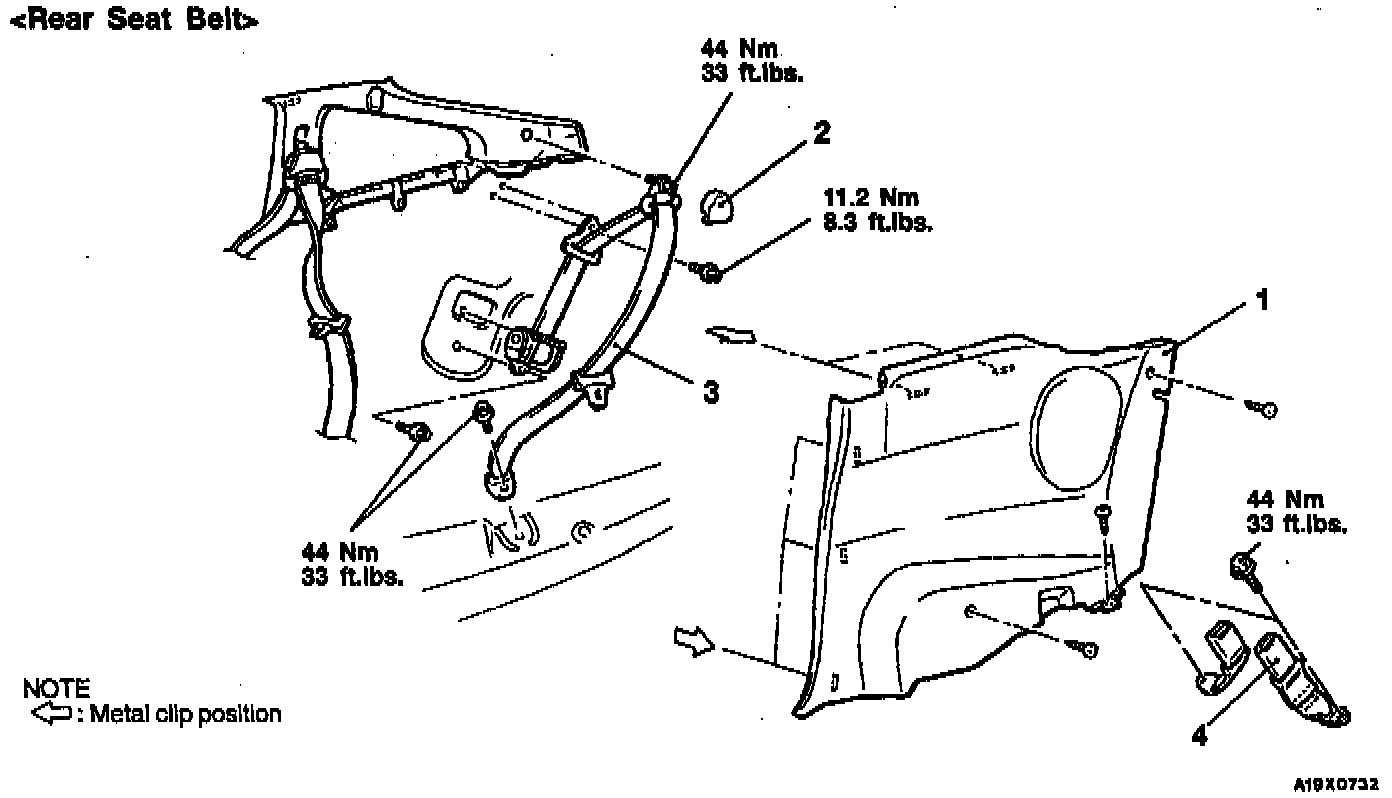

REAR OUTER SEAT BELT REMOVAL STEPS
- Rear seat cushion
1. Quarter trim, lower
2. Rear seat belt sash' guide cover
3. Rear outer seat belt

REAR INNER SEAT BELT REMOVAL STEPS
- Rear seat cushion
4. Inner seat belt

INSTALLATION SERVICE POINTS

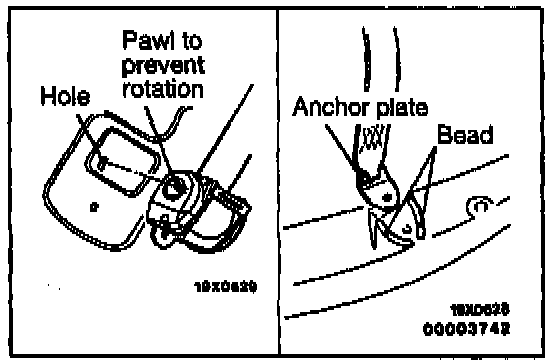

Rear Outer Seat Belt Installation
1. Insert the pawl to prevent the retractor from rotating in the hole on the body.
2. Install the anchor plate along the bead of the body.

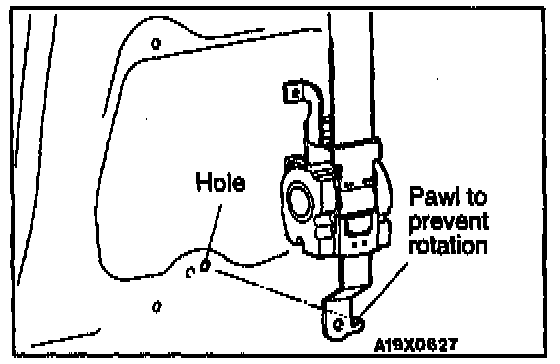

Front Outer Seat Belt Installation
Insert the pawl to prevent the retractor from rotating in the hole on the body.
