Seat Belt Guide Track: Service and Repair

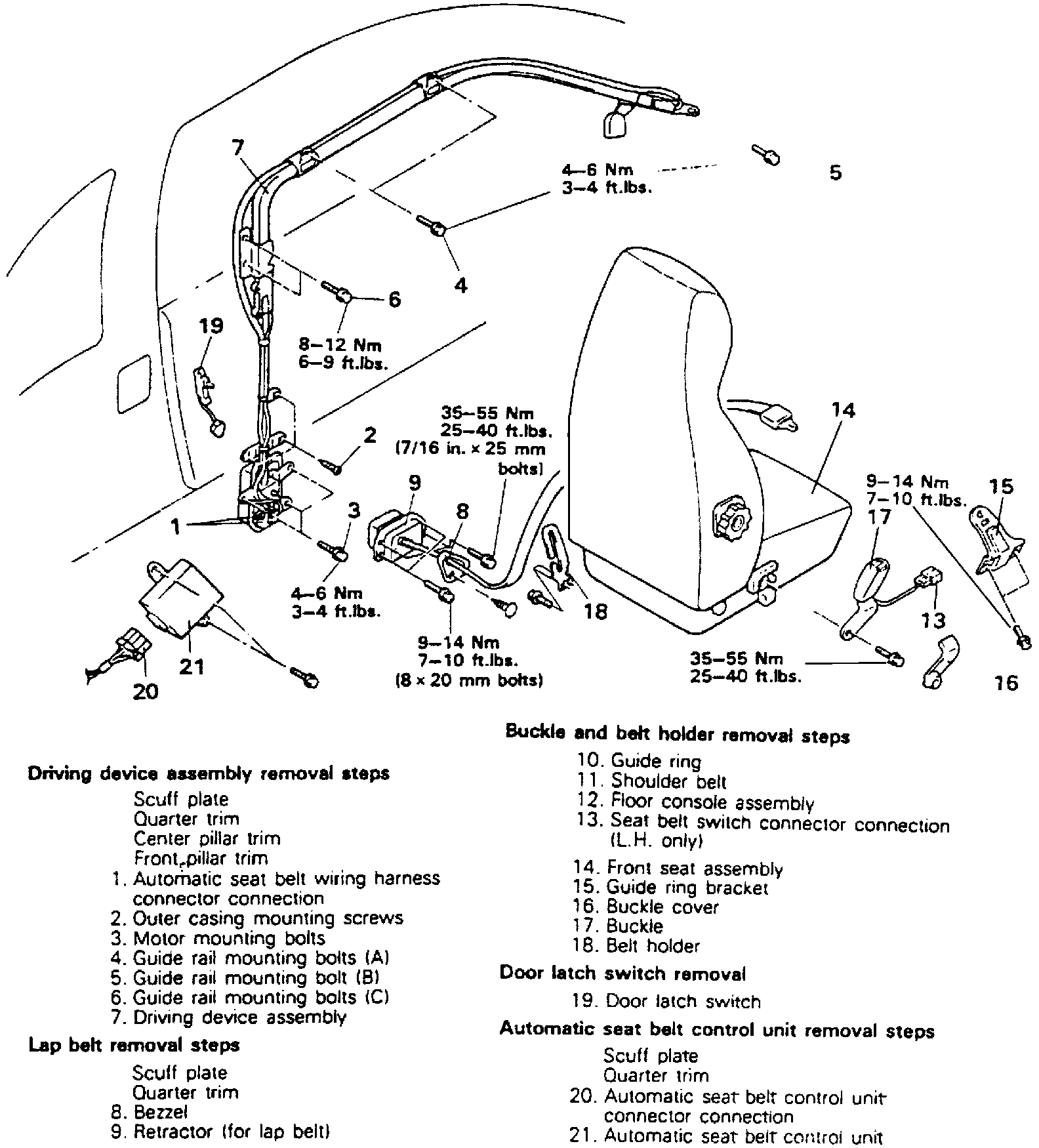

Fig. 50 Automatic Seat Belt System (Part 1 Of 2):

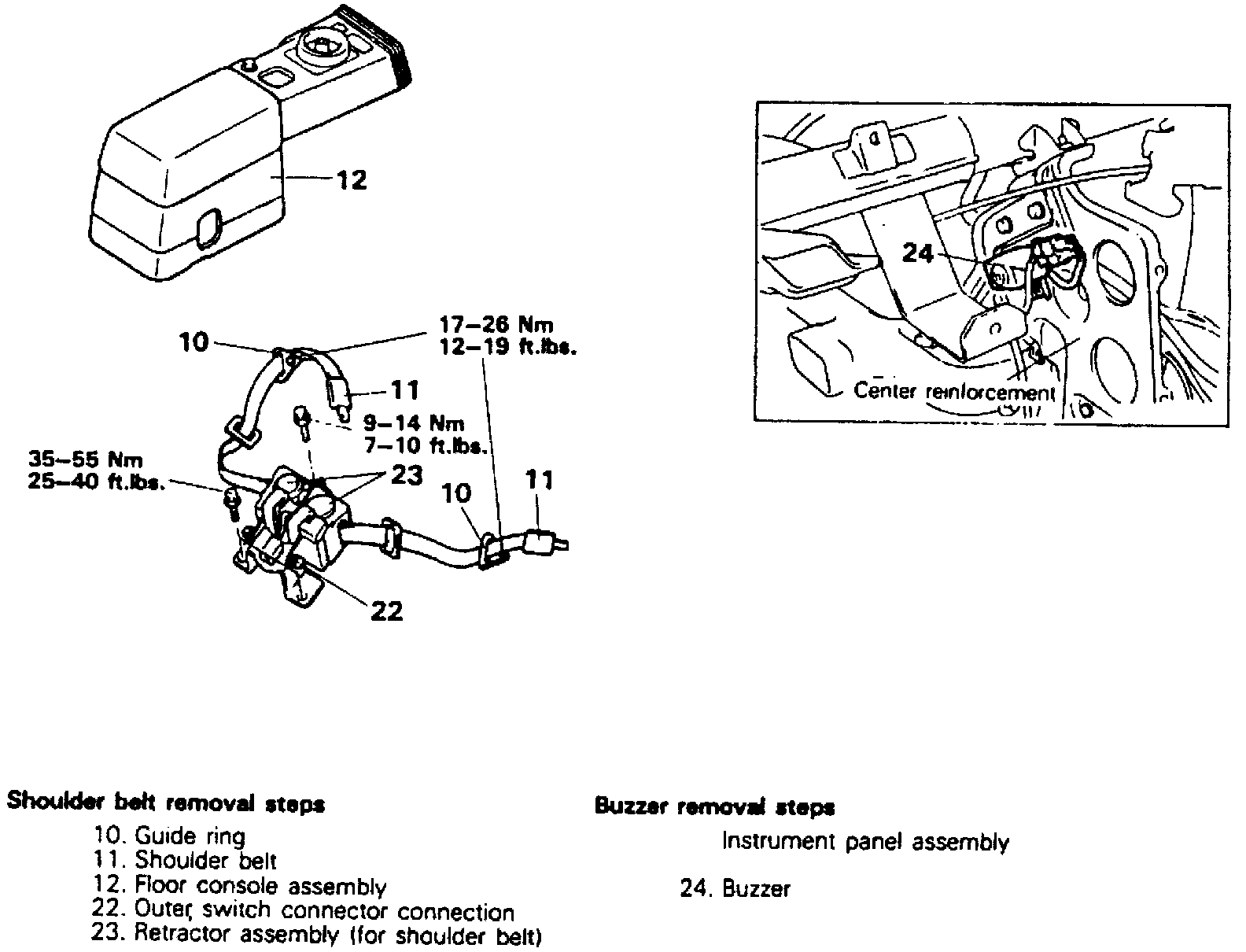

Fig. 50 Automatic Seat Belt System (Part 2 Of 2):

1. Remove scuff plates, quarter trim, center and front pillar trim.
2. Disconnect seat belt wiring harness connector.
3. Remove outer casing mounting bolts.
4. Remove motor mounting bolts.
5. Remove guide rail mounting bolts, then the track and motor assembly.
6. Reverse procedure to install.
