Procedure 2

Battery Connections:

Description
Communication with scan tool is not possible. (Communication is not possible with SRS only)

Probable Cause
If communication is not possible with the SRS only, the cause is probably an open circuit in the On-Board diagnostic output circuit of the SRS or in the power circuit (including ground circuit).
- Malfunction of harnesses or connectors
- Malfunction of SRS-ECU

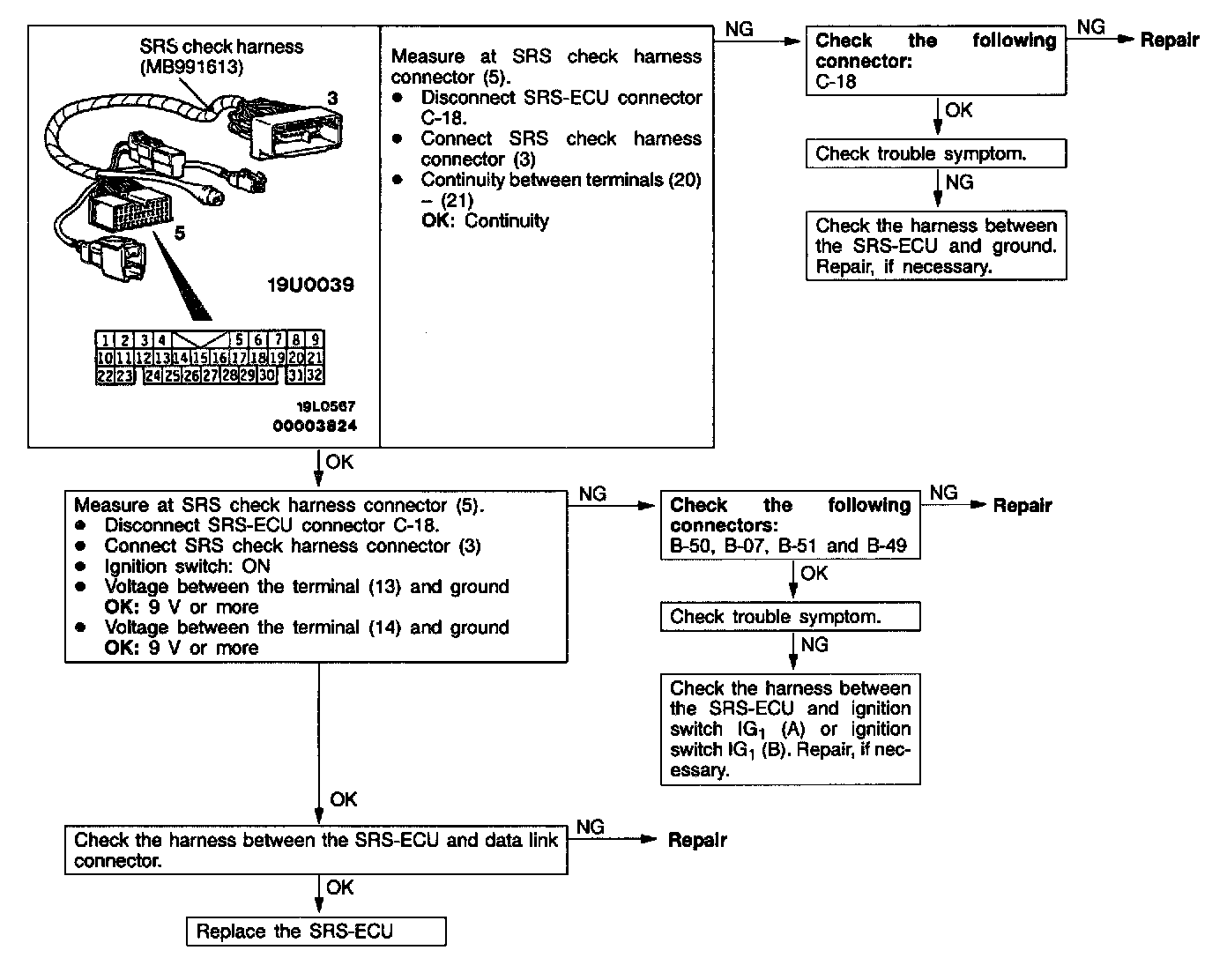

Diagnostic Chart:

Testing - Corrective Action
