Wiring Harness and Connector Repair

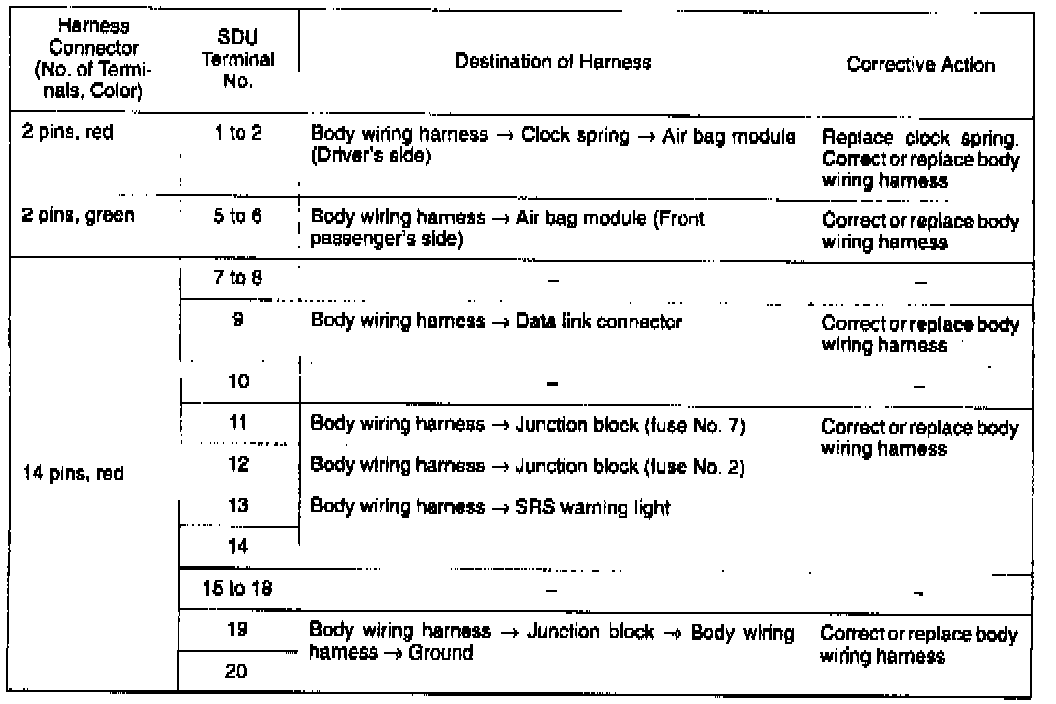

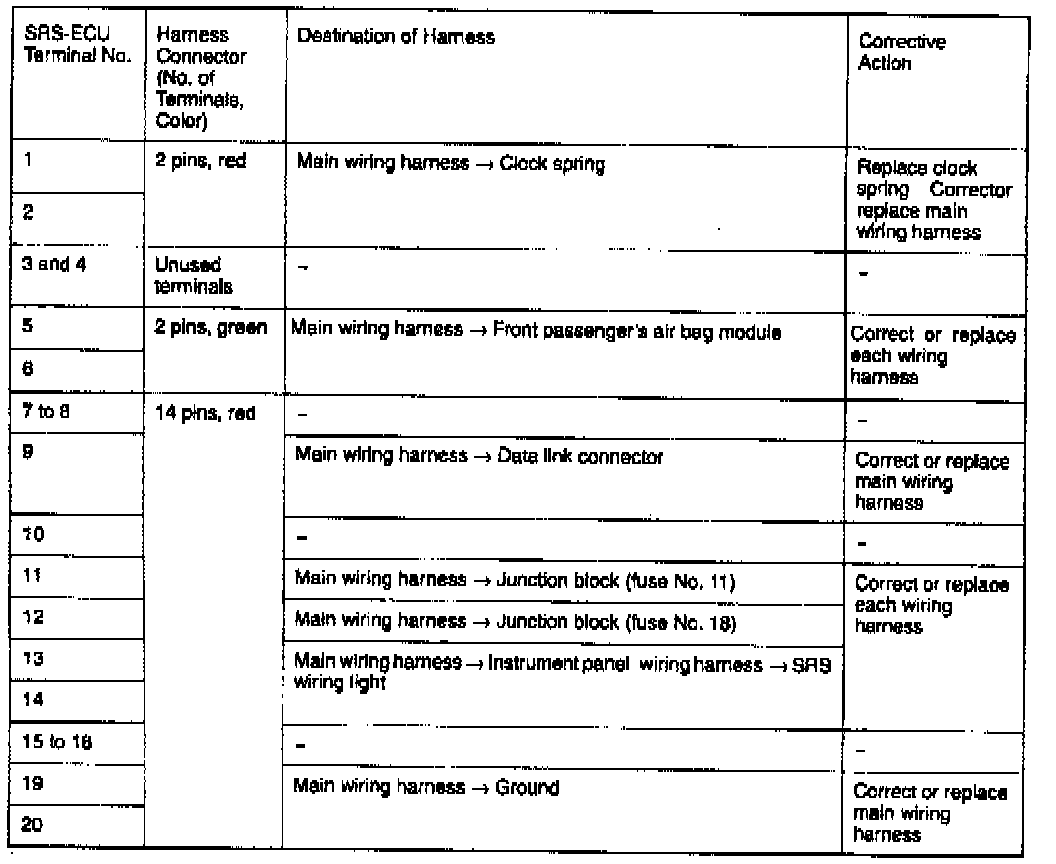

Fig. 1 SRS Harness Repair Procedure:

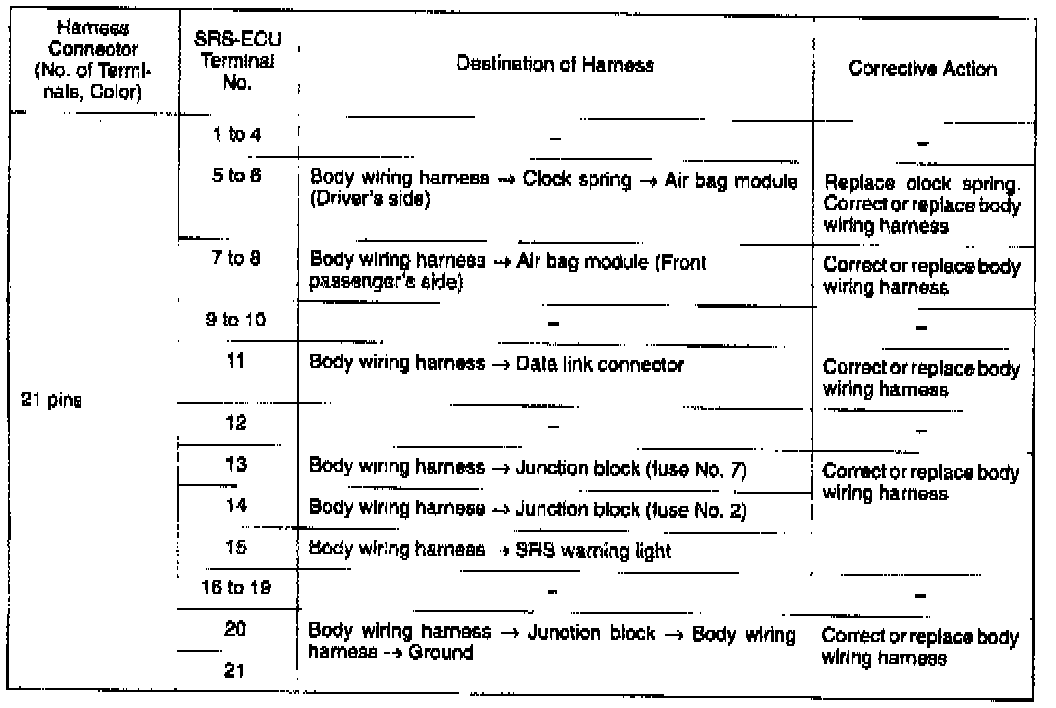

Fig. 2 SRS Harness Repair Procedure:

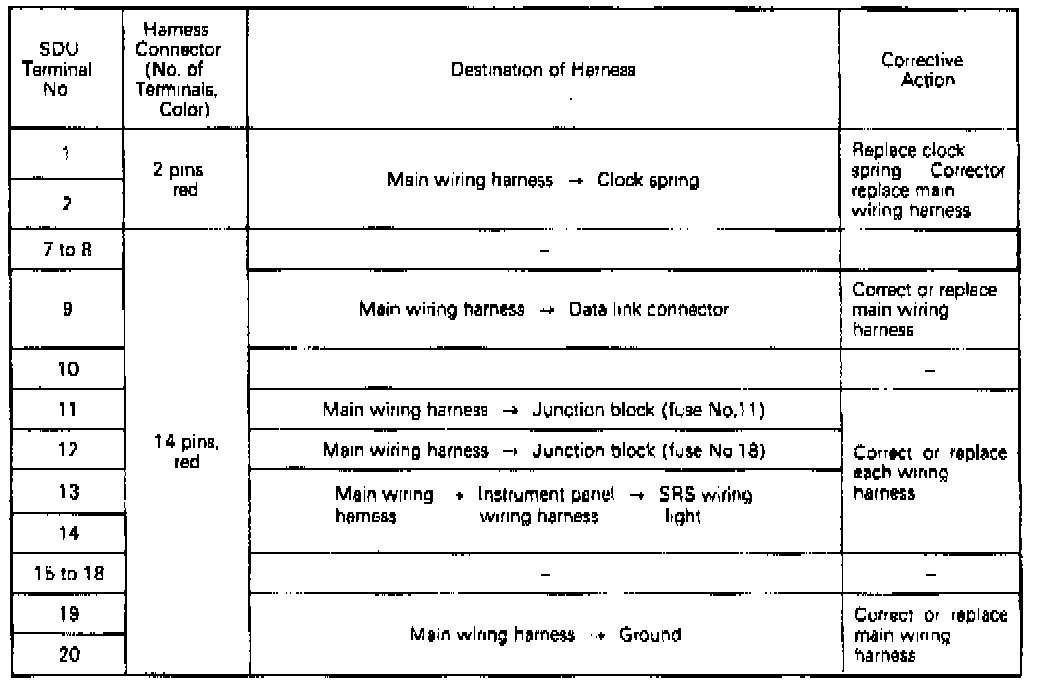

Fig. 3 SRS Harness Repair Procedure:

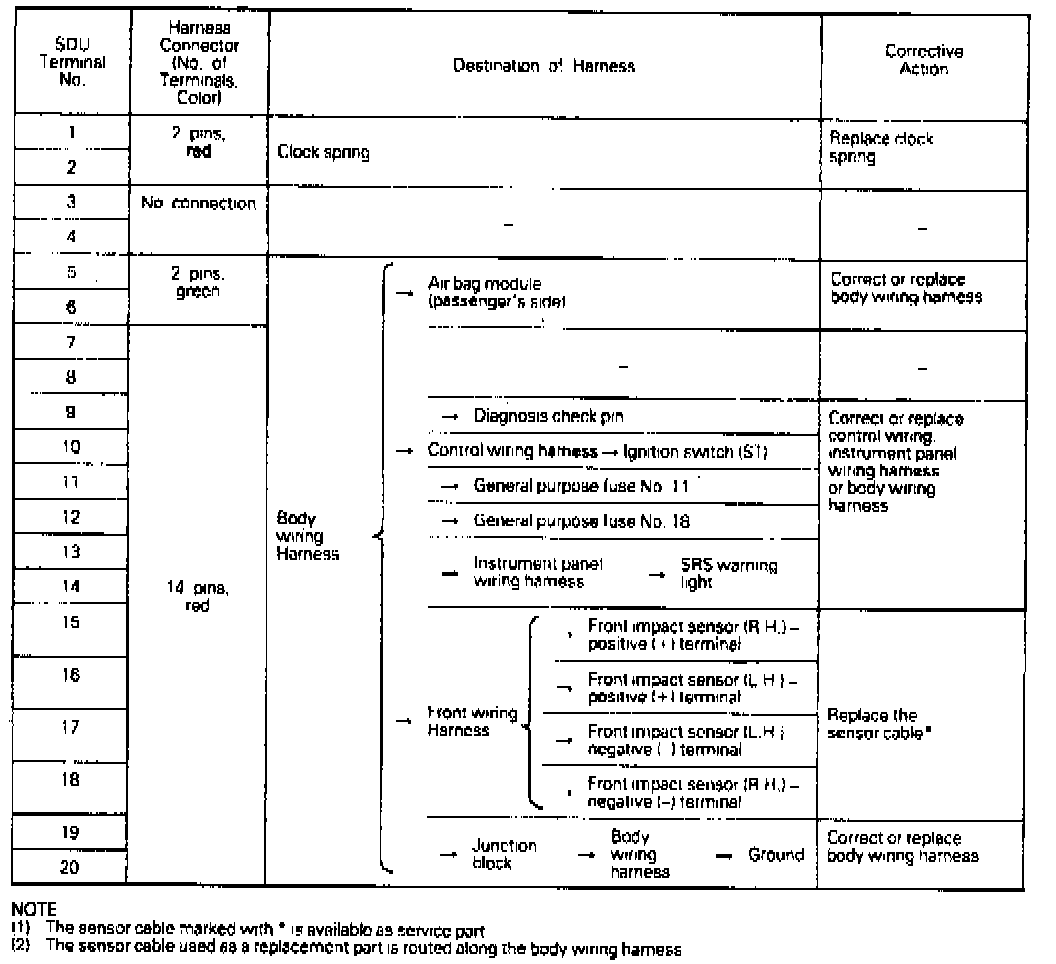

Fig. 4 SRS Harness Repair Procedure:

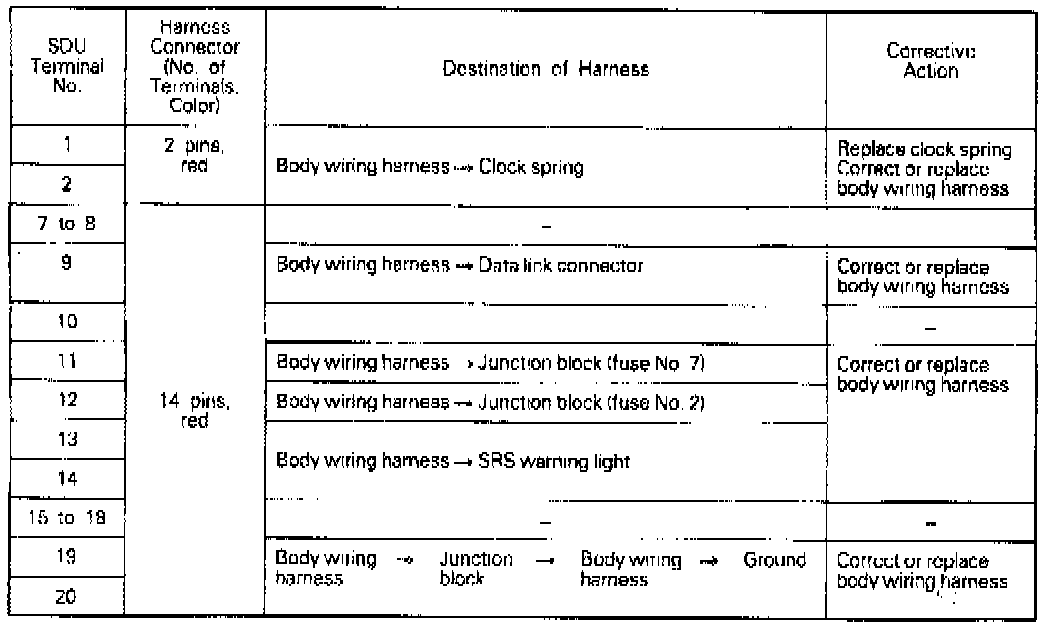

Fig. 5 SRS Harness Repair Procedure:

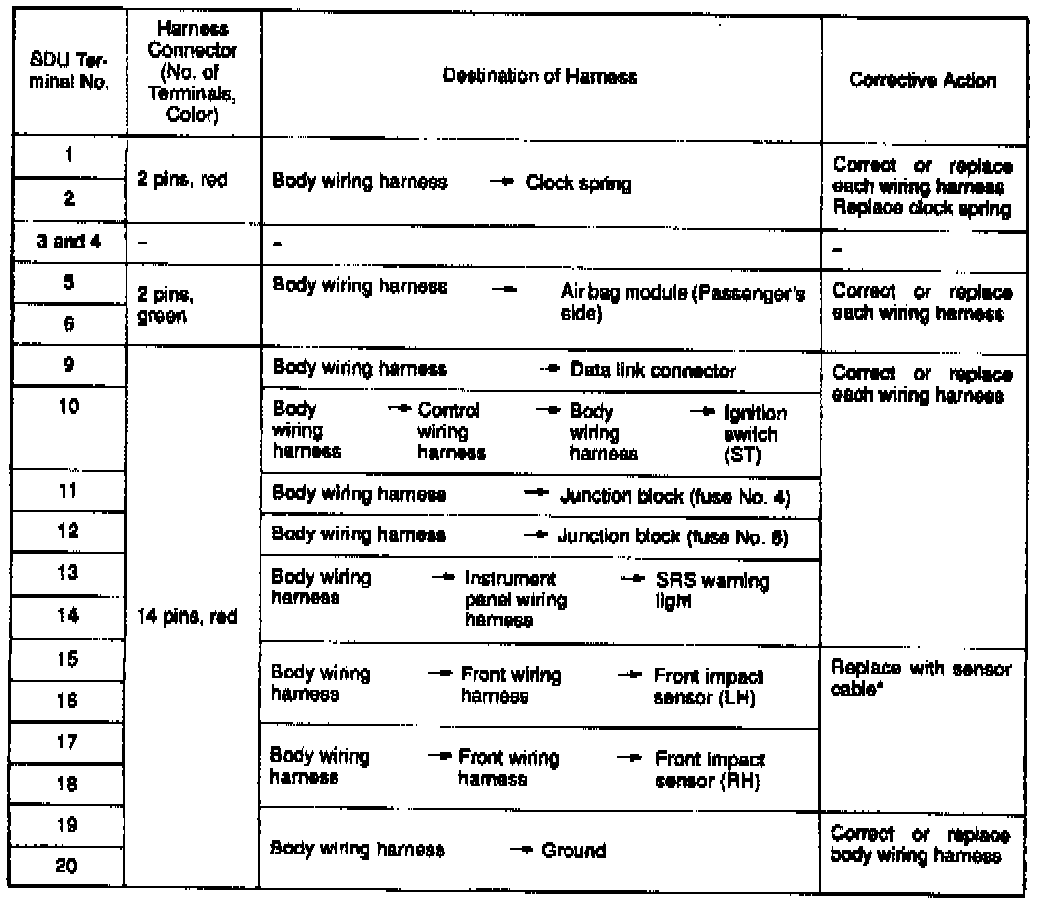

Fig. 6 SRS Harness Repair Procedure:

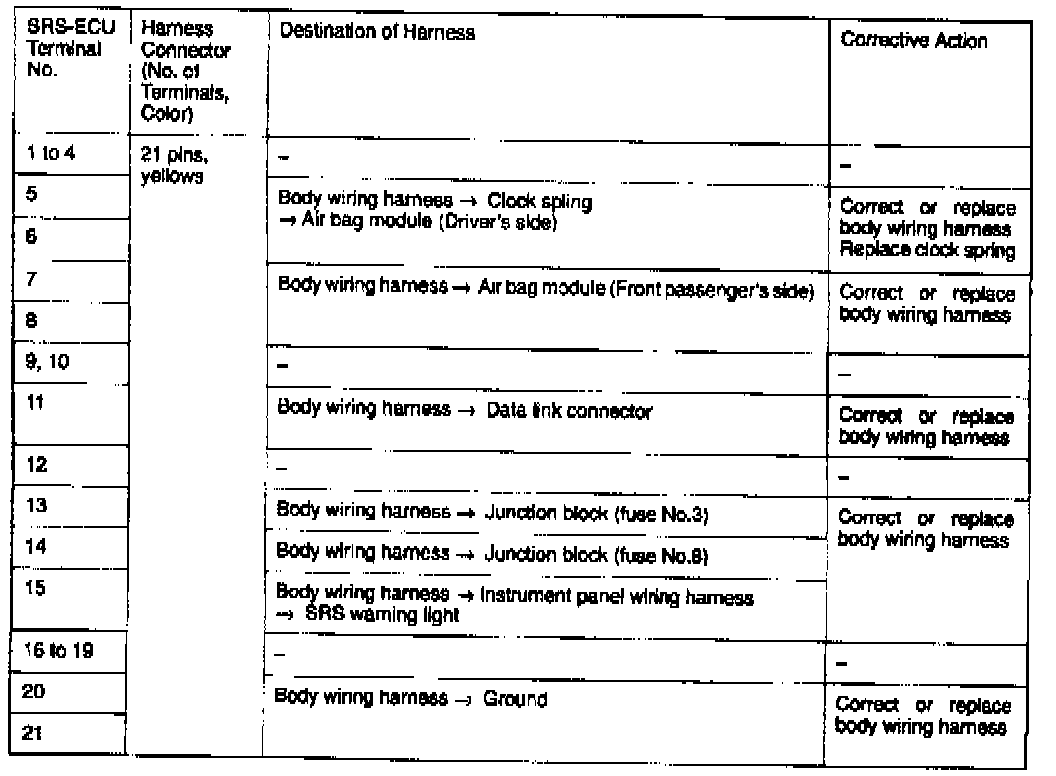

Fig. 7 SRS Harness Repair Procedure:

Never attempt to repair wiring harness connectors of SRS. If any connectors are diagnosed as faulty, replace wiring harness. If wires are diagnosed as faulty, replace or repair wiring harness as outlined.
