High Beam Relay: Testing and Inspection

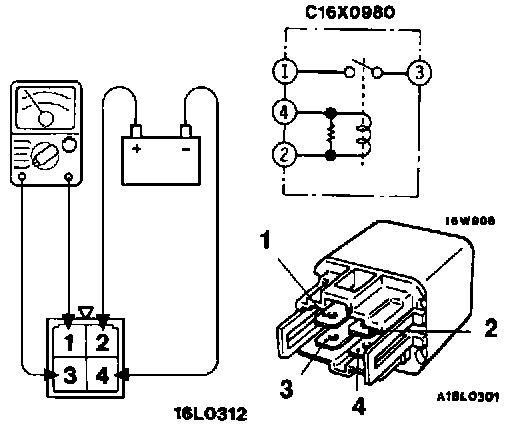

High Beam Relay Continuity Check:

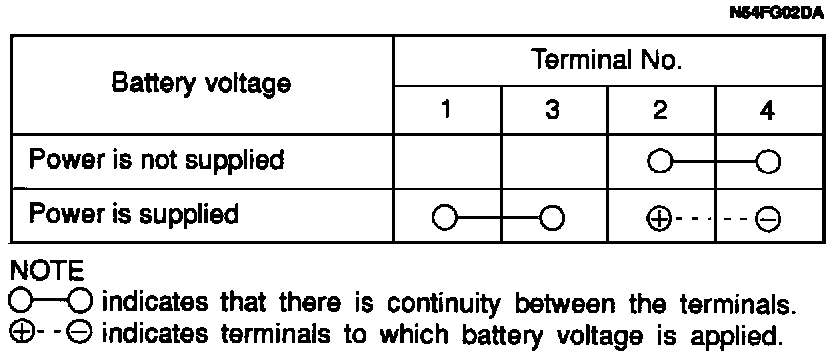

High Beam Relay Continuity Check Table:
