With Voltmeter

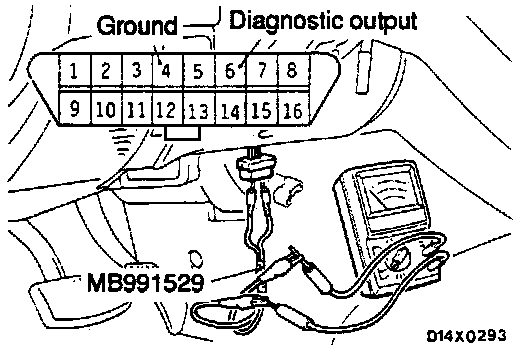

Connect a voltmeter to (4) terminal and (6) terminal of the data link connector underneath the instrument under cover, and take a reading of the diagnostic trouble codes from the movement of the needle on the voltmeter.

NOTE: Other diagnostic trouble codes also output as the same code numbers as when using the scan tool.

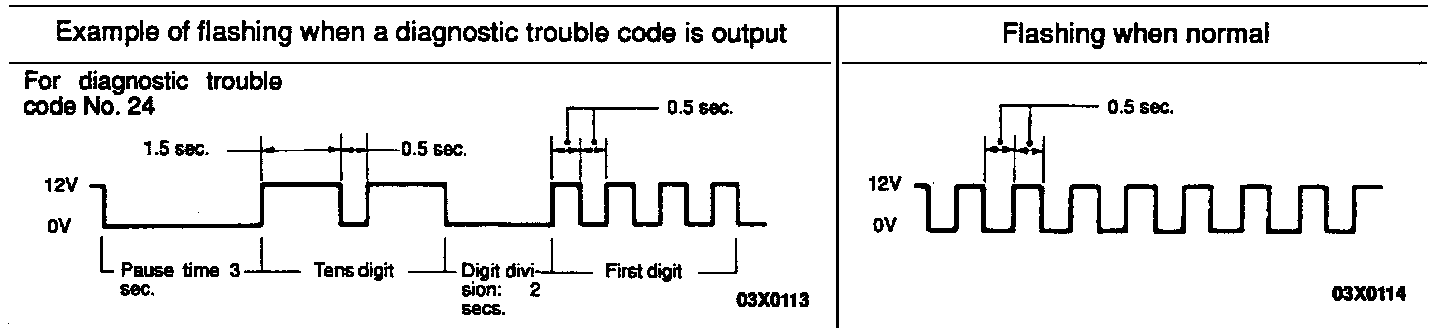

Diagnostic trouble codes will be displayed as a series of long and short pulses on the voltmeter.
