Secondary Coil Resistance

Secondary Coil Resistance:

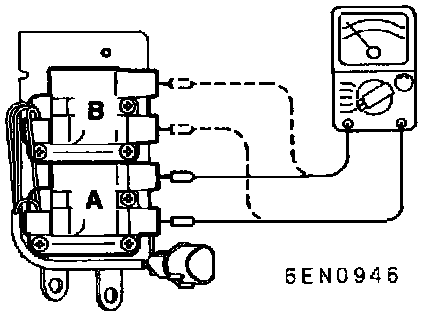

Measure the resistance between coil high voltage terminals.
Measuring point:
No. 1 - No. 4 cylinder side coil.............. A
No. 2 - No. 3 cylinder side coil.............. B
Standard value: 11.3 - 15.3 K-Ohm
