Primary Coil Resistance

Primary Coil Resistance:

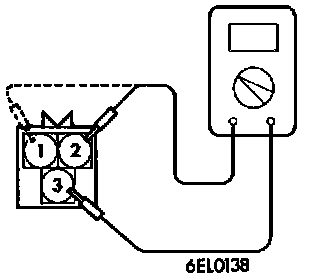

Measure the resistance between connector terminal 3 (power) and each coil terminal.
Measuring point:
No. 1 - No. 4 cylinder side coil.............. 2 - 3
No. 2 - No. 3 cylinder side coil.............. 1 - 3
Standard value: 0.70 - 0.86 Ohm
