Fuel Injector Resistor: Testing and Inspection

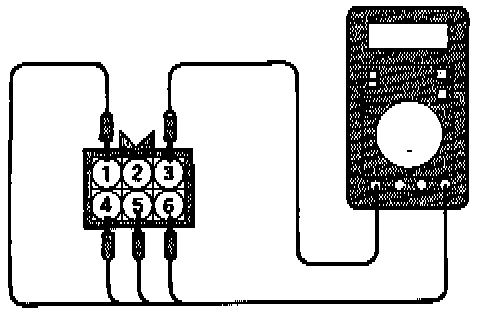

MEASUREMENT OF RESISTANCE BETWEEN TERMINALS

1. Disconnect the resistor connector.





2. Measure the resistance between terminals.

Measuring terminals Resistance

1 - 3
4 - 3
5 - 3 5.5 - 6.5 ohms [At 20°C (68°F)]
6 - 3

3. If the resistance is out of specification, replace the resistor.
