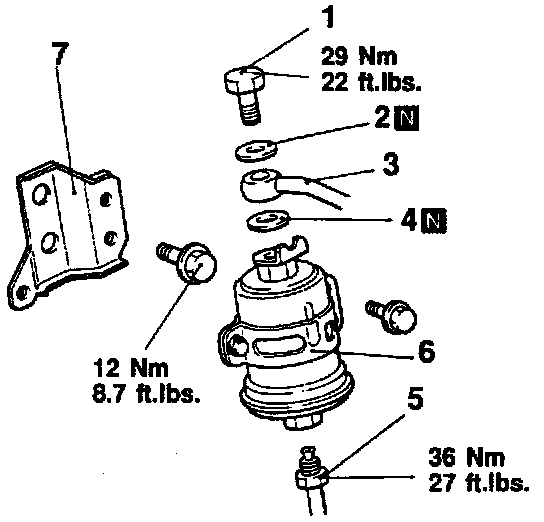

Fuel Filter: Locations

1. Eye bolt
2. Gasket
3. High-pressure fuel hose connection
4. Gasket
5. Fuel main pipe connection
6. Fuel filter
7. Fuel filter bracket


The fuel filter is located in the engine compartment on the firewall.
