Positive Crankcase Ventilation Valve: Testing and Inspection

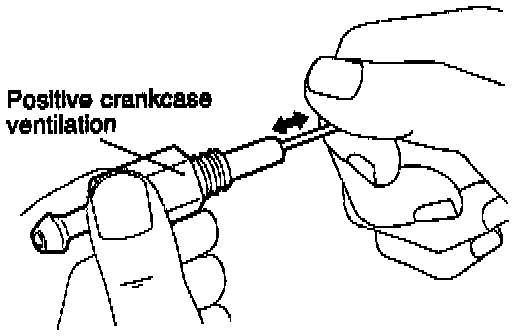

1. Insert a thin rod into the positive crankcase ventilation valve from the side shown (rocker cover installation side), and move the rod back and forth to confirm that the plunger moves.

2. If the plunger does not move, there is a clogging in the positive crankcase ventilation valve. In this case, clean or replace the valve.
