EGR Valve: Locations
EGR Valve:

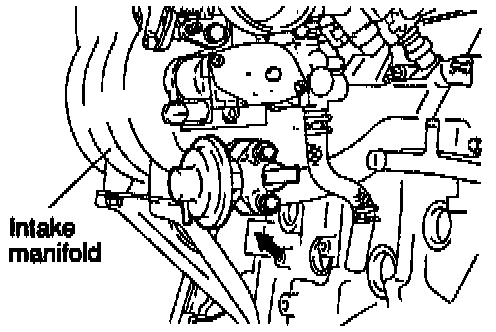

The Exhaust Gas Recirculation
(EGR)
valve is attached to the side of the intake manifold.
