Canister Purge Control Valve: Locations

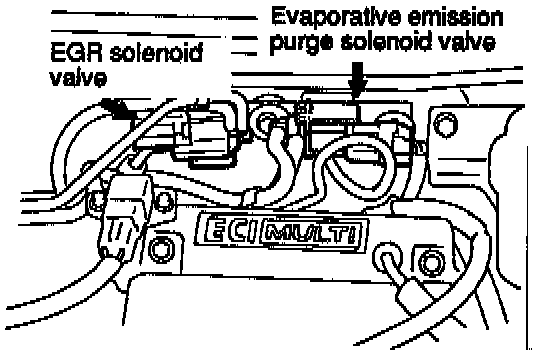

Solenoid Valve Locations:

The purge solenoid is located on the firewall, next to the Exhaust Gas Recirculation (EGR) solenoid.
