Catalytic Converter: Service and Repair

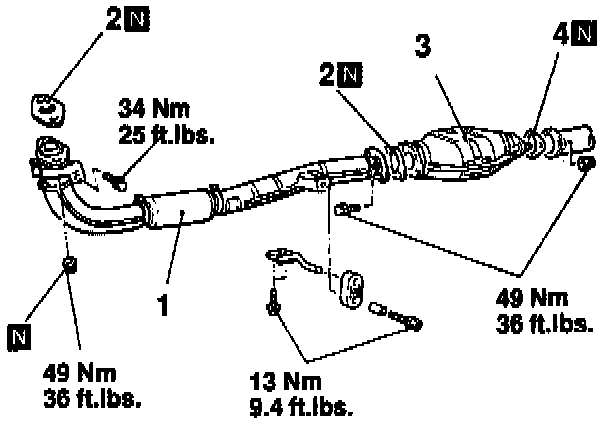

Catalytic Converter:
Removal steps:
1.
Front
exhaust pipe
2.
Gasket
3.
Catalytic converter
4.
Gasket
