Testing for Spark at Coil

WARNING: The direct ignition system generates approximately 40,000 volts. Personnel injury could result from contact with this system.

The coil pack contacts 2 independent coils. Each coil must be checked individually.

CAUTION: Spark plug wire damage may occur if the spark plug is moved more than 6 mm (1/4 inch) away from the engine ground.

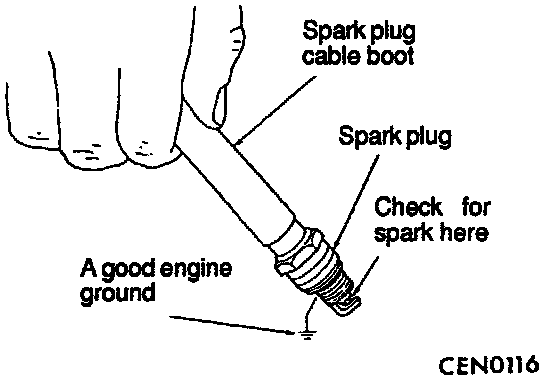

1. Remove the cable from No. 2 spark plug. Insert a clean spark plug into the spark plug boot, and ground plug to the engine.
2. Crank the engine and look for spark across the electrodes of the spark plug.

Repeat the above test for the three remaining cylinders. If there is no spark during any of the cylinder tests, check the camshaft position sensor and crankshaft position sensor.

3. If one or more tests show irregular, weak, or no spark, go on to Ignition Coil/Testing and Inspection and Spark Plug Cable/Testing and Inspection.
