Home >> Eagle >> 1996 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Mitsubishi >> 27 Fan Motor Relay System (RAD. Fan, A/C Condenser Fan)

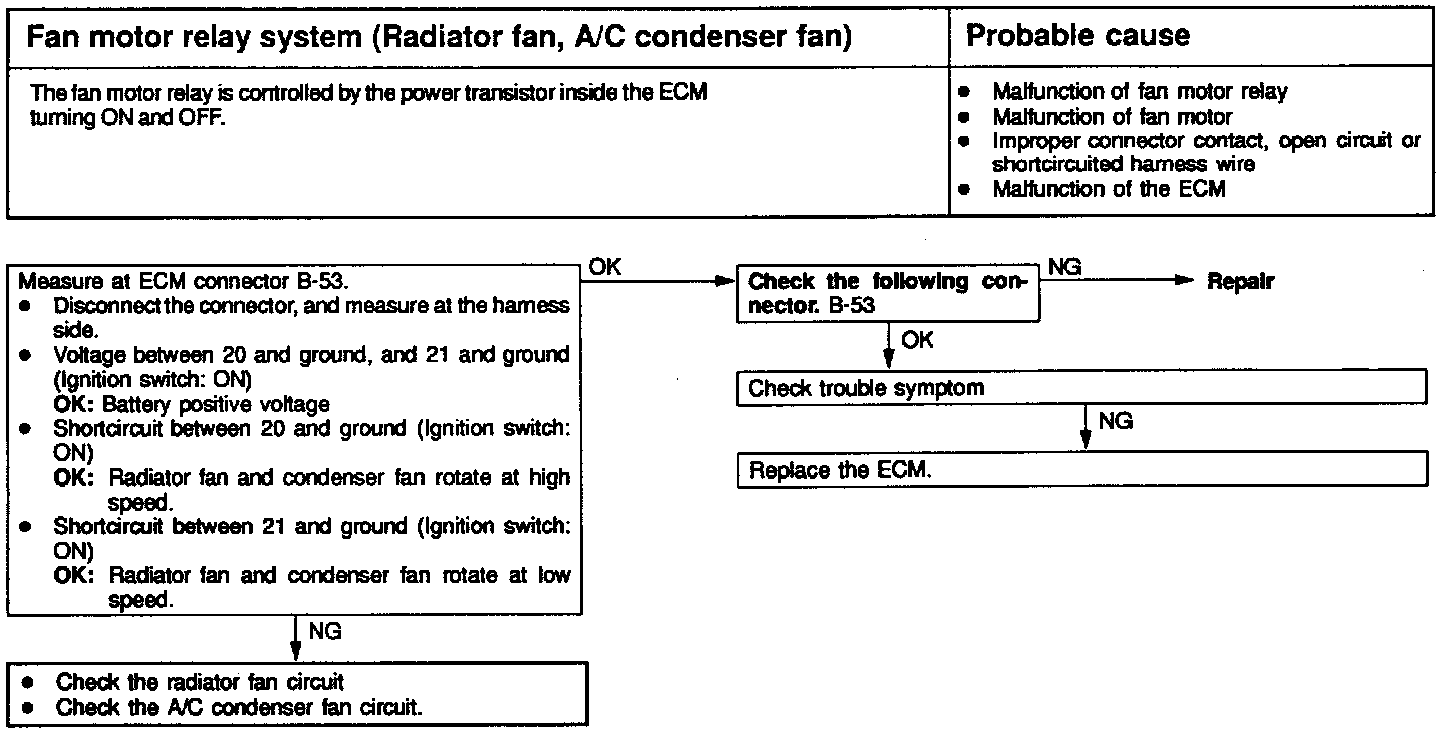

27 Fan Motor Relay System (RAD. Fan, A/C Condenser Fan)
