Connector/Grounding Indications

Connector/Grounding Indications:





Connector/Grounding Indications

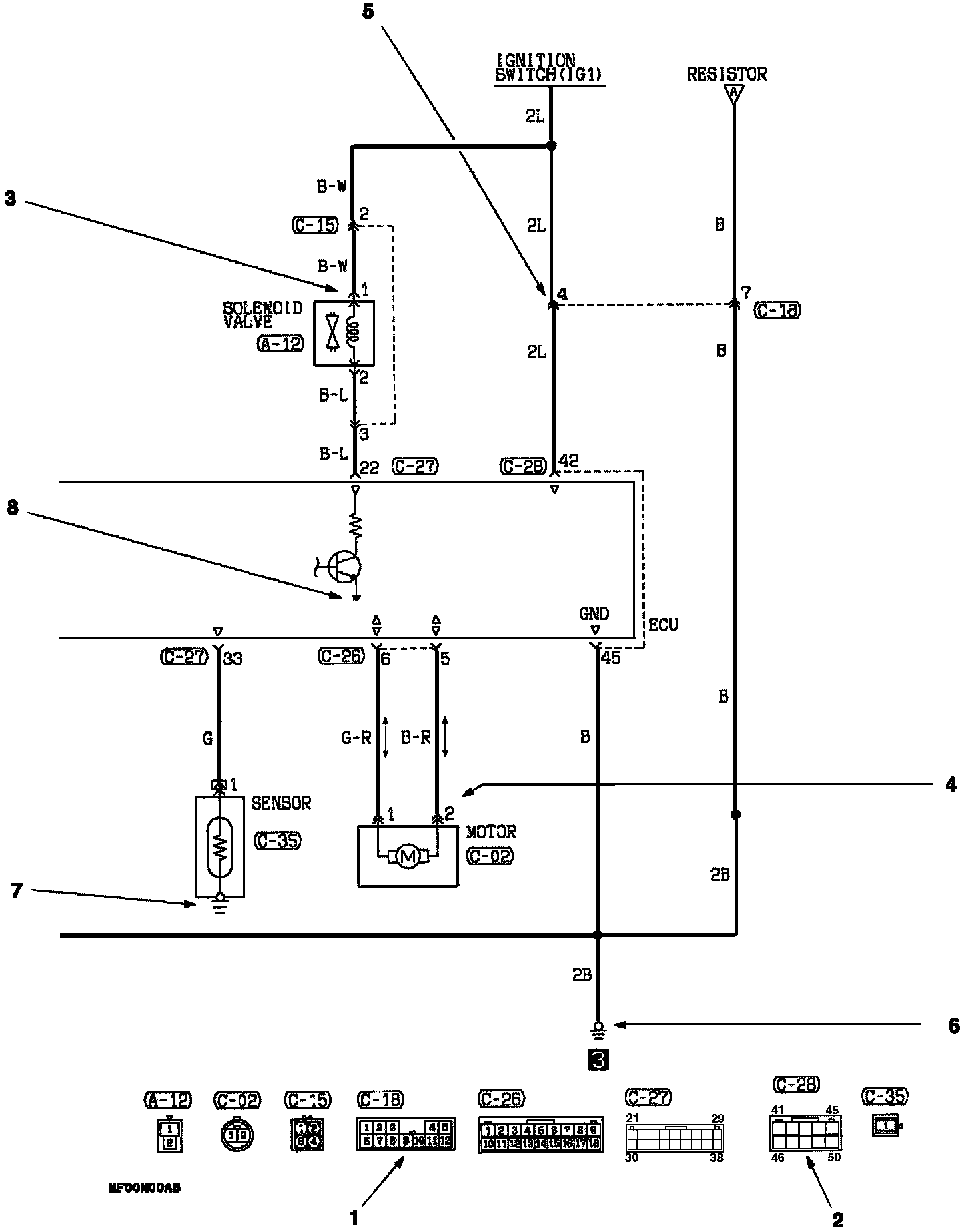

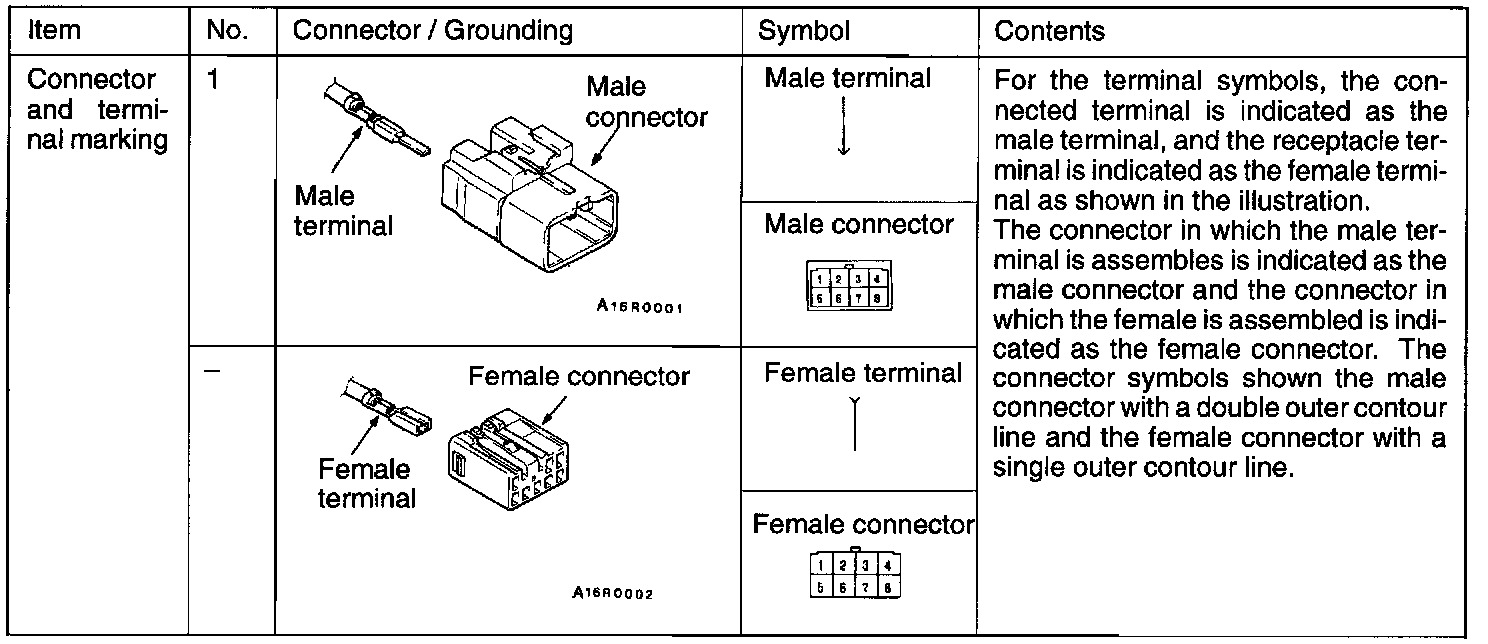

Connector And Terminal Marking:





Connector And Terminal Marking

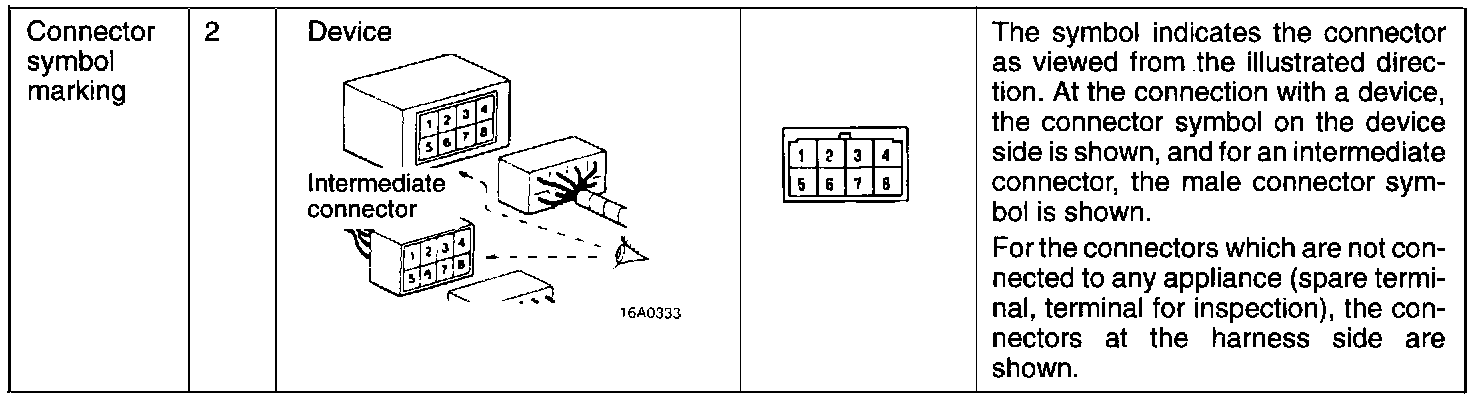

Connector Symbol Marking:





Connector Symbol Marking

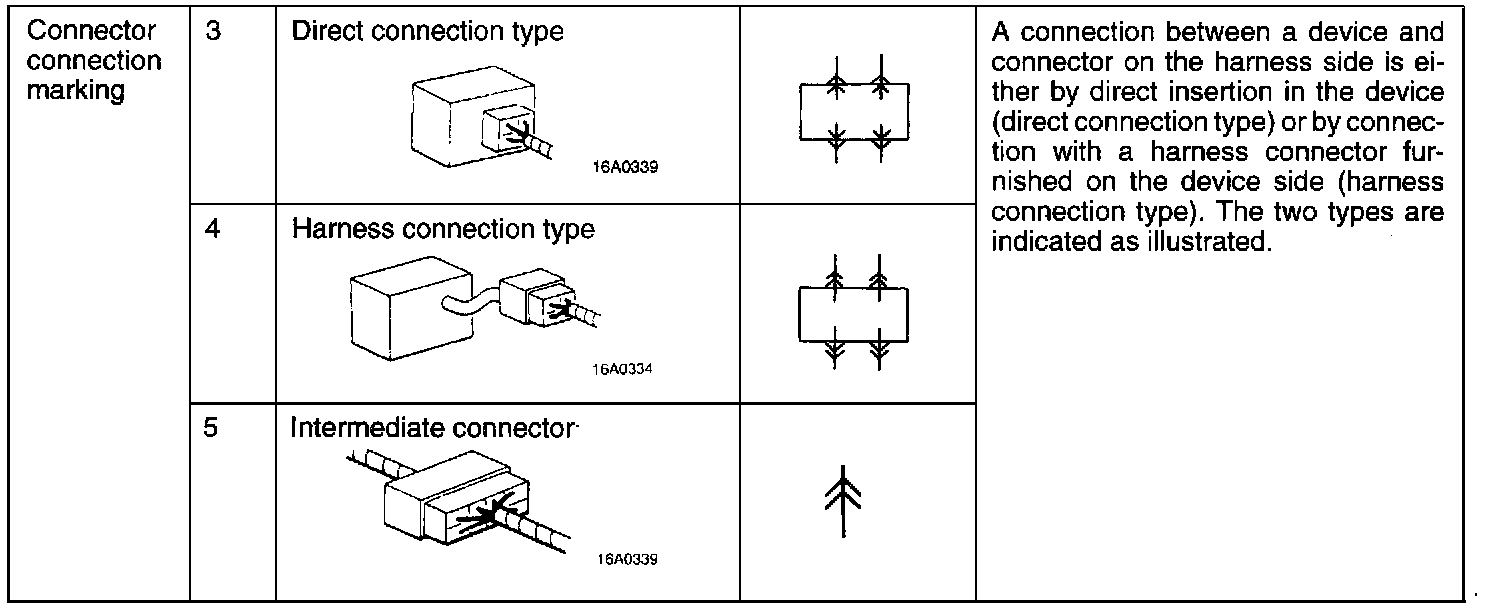

Connector Connection Marking:





Connector Connection Marking

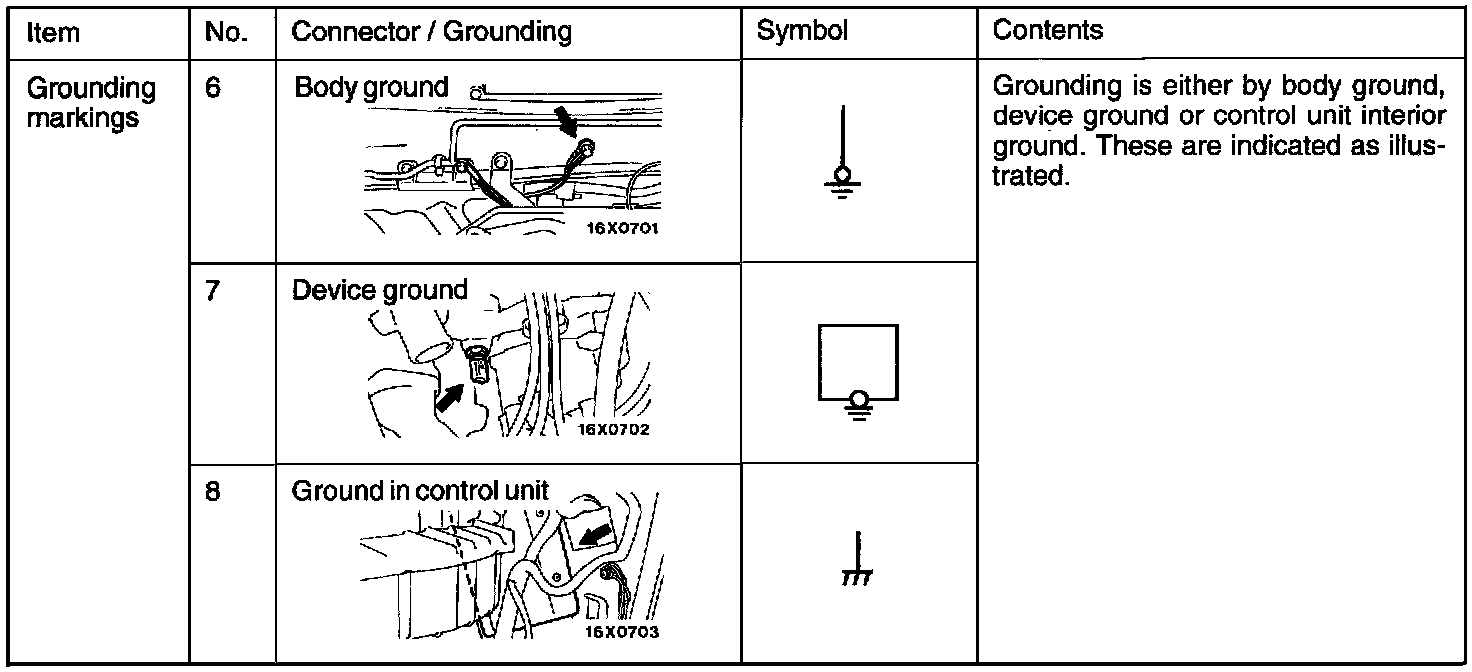

Grounding Markings:





Grounding Markings
