Fuel Filter: Service and Repair

1. Relieve fuel pressure as follows.
a. Disconnect fuel pump harness connector at fuel tank.
b. Start engine and let it run until it stalls, then turn ignition switch to off.
c. Disconnect battery ground cable.
d. Reconnect fuel pump harness connector.

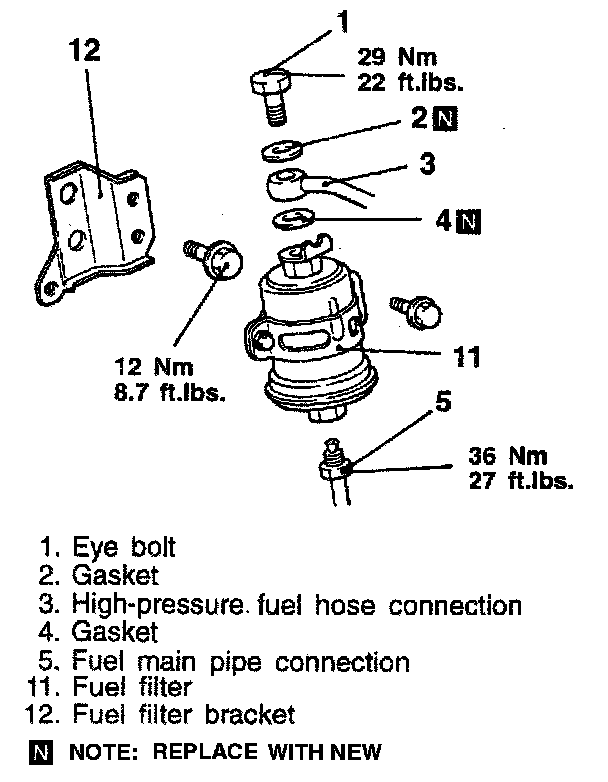

Figure 114:

2. When replacing fuel filter, refer to Fig.114 for removal and installation procedure.

3. Remove battery and air intake hose to access fuel filter.

4. Reverse procedure to install.
