Home >> Eagle >> 1996 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

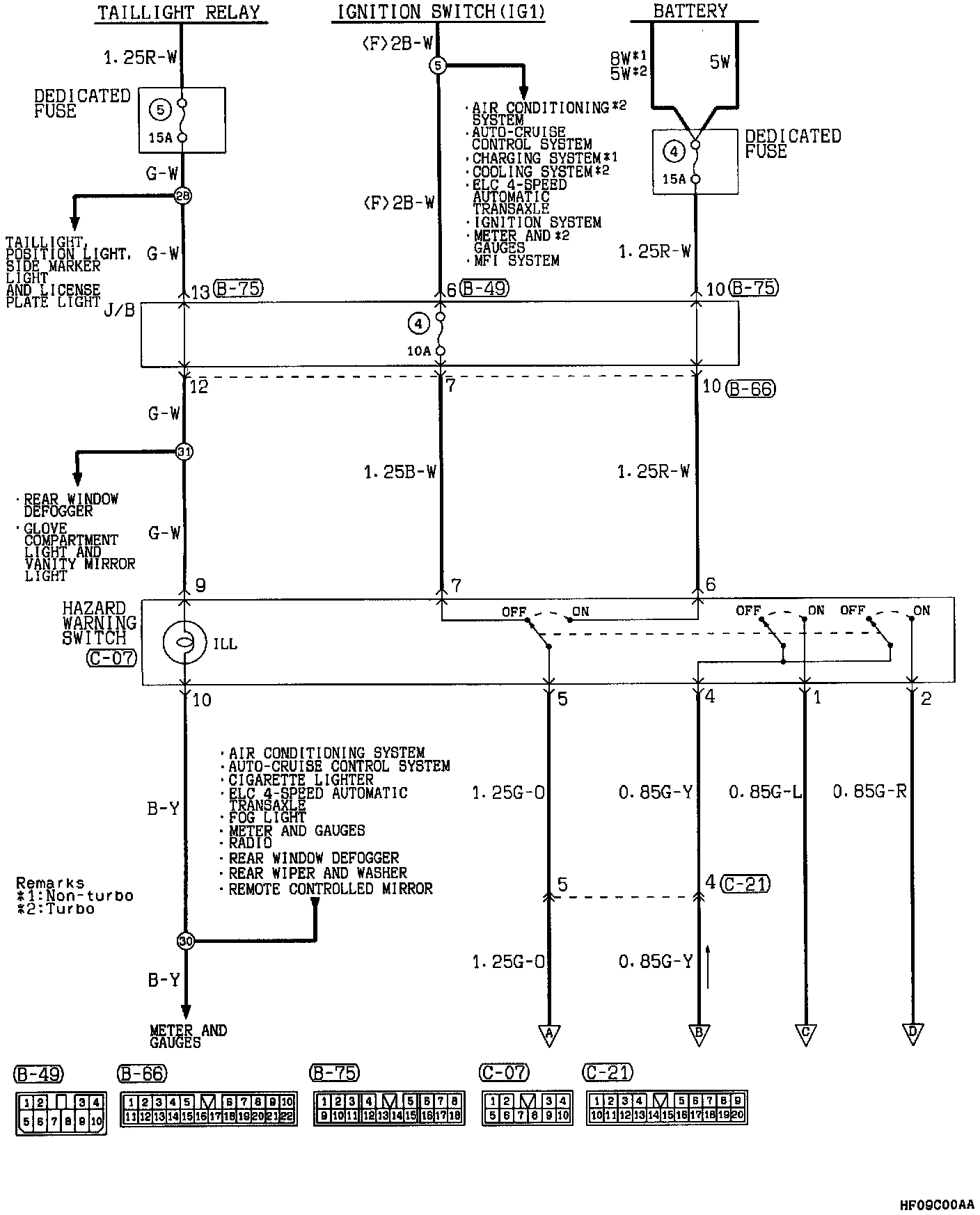

Turn Signal And Hazard Warning Light Circuit (Part 1 Of 3):

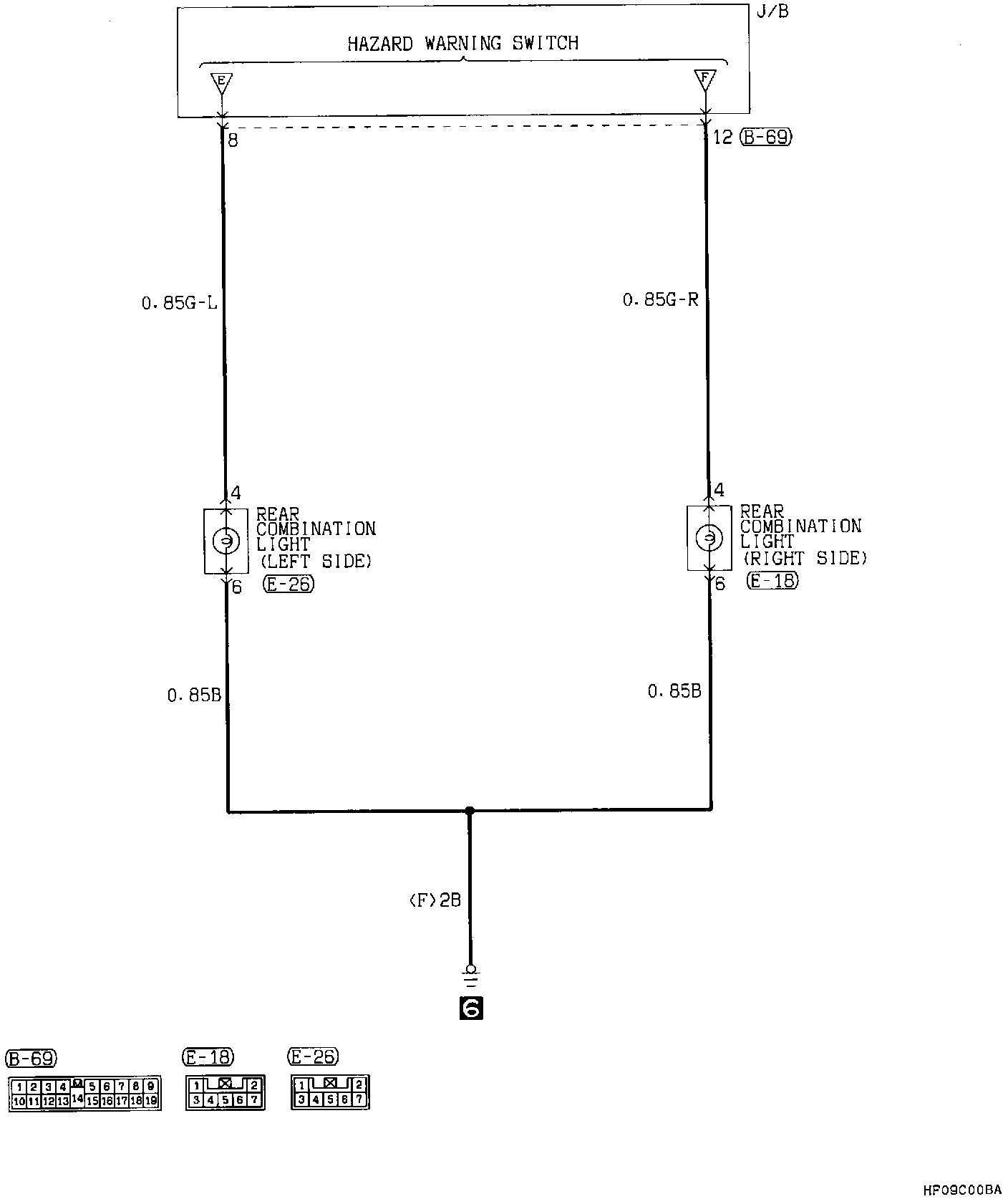

Turn Signal And Hazard Warning Light Circuit (Part 2 Of 3):

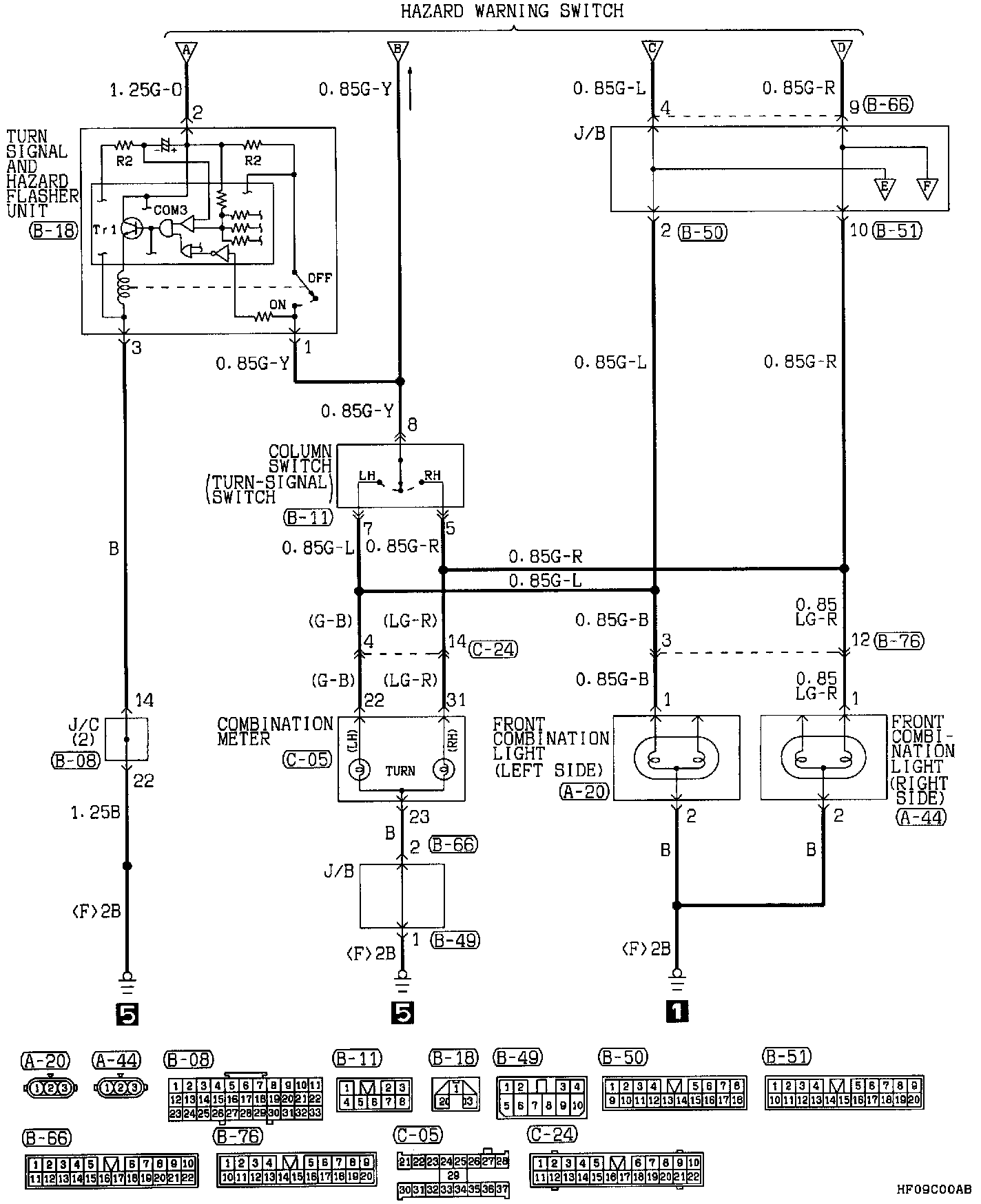

Turn Signal And Hazard Warning Light Circuit (Part 3 Of 3):
