Home >> Eagle >> 1996 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Column Switch Continuity Check

Column Switch Continuity Check

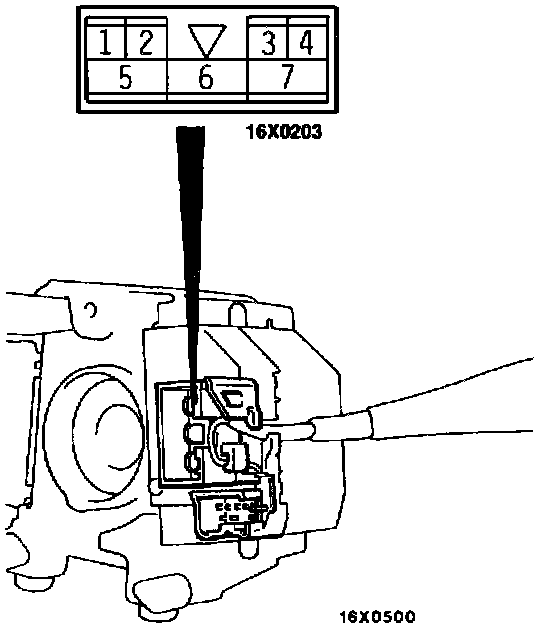

Column Switch Continuity Check:

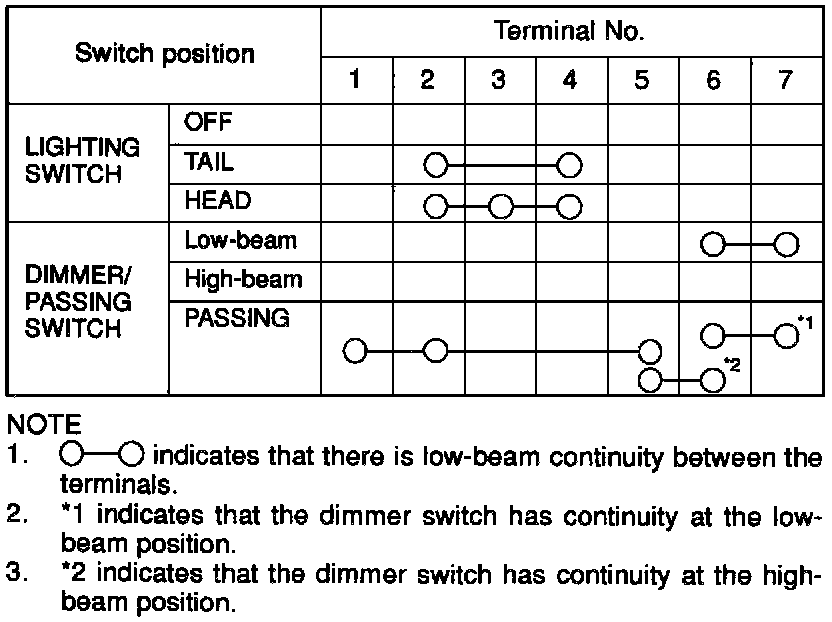

Column Switch Continuity Check Table:
