Electrical Diagrams

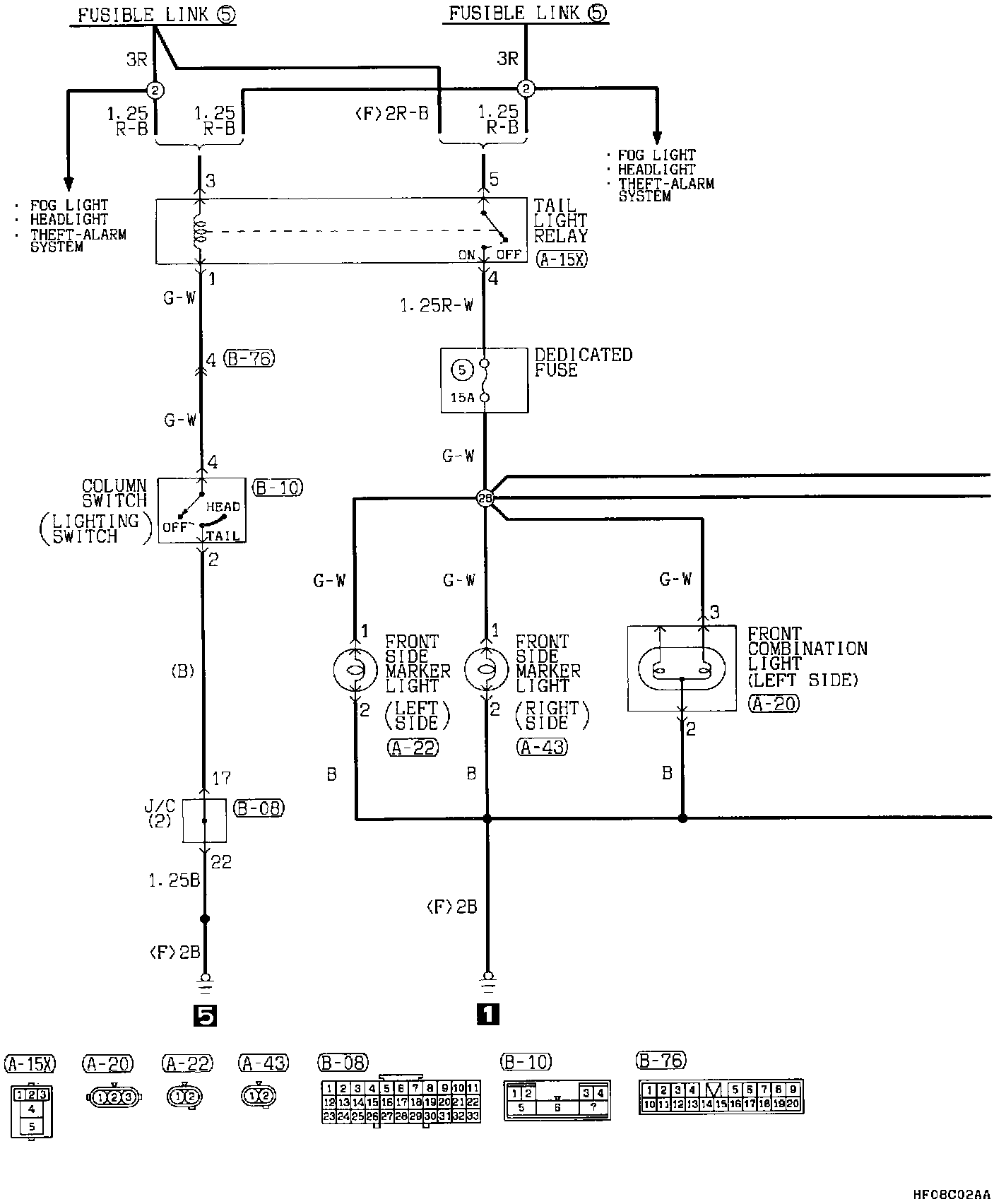

Taillight, Position, Side Marker And License Plate Light Circuit (Part 1 Of 3):

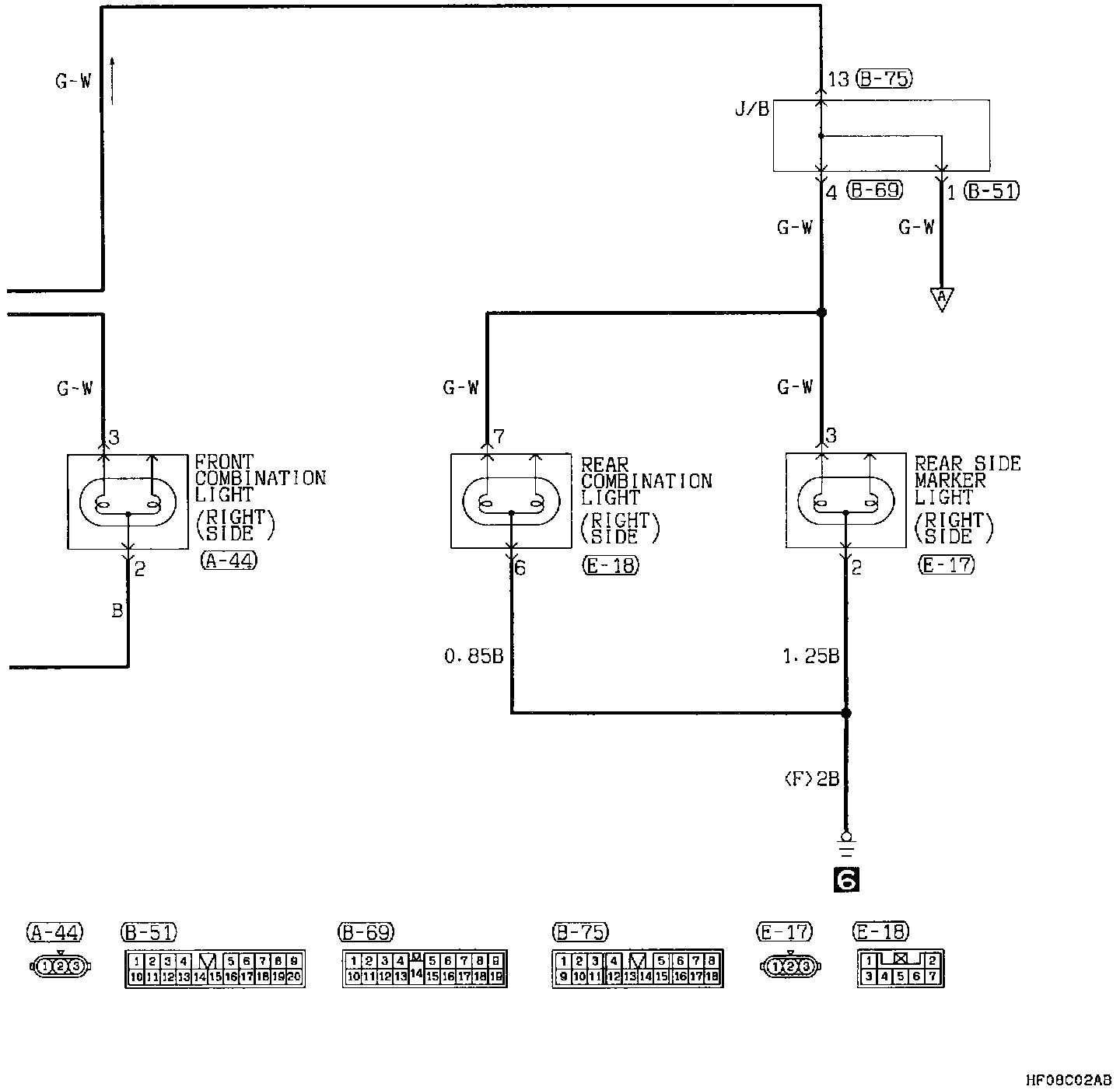

Taillight, Position, Side Marker And License Plate Light Circuit (Part 2 Of 3):

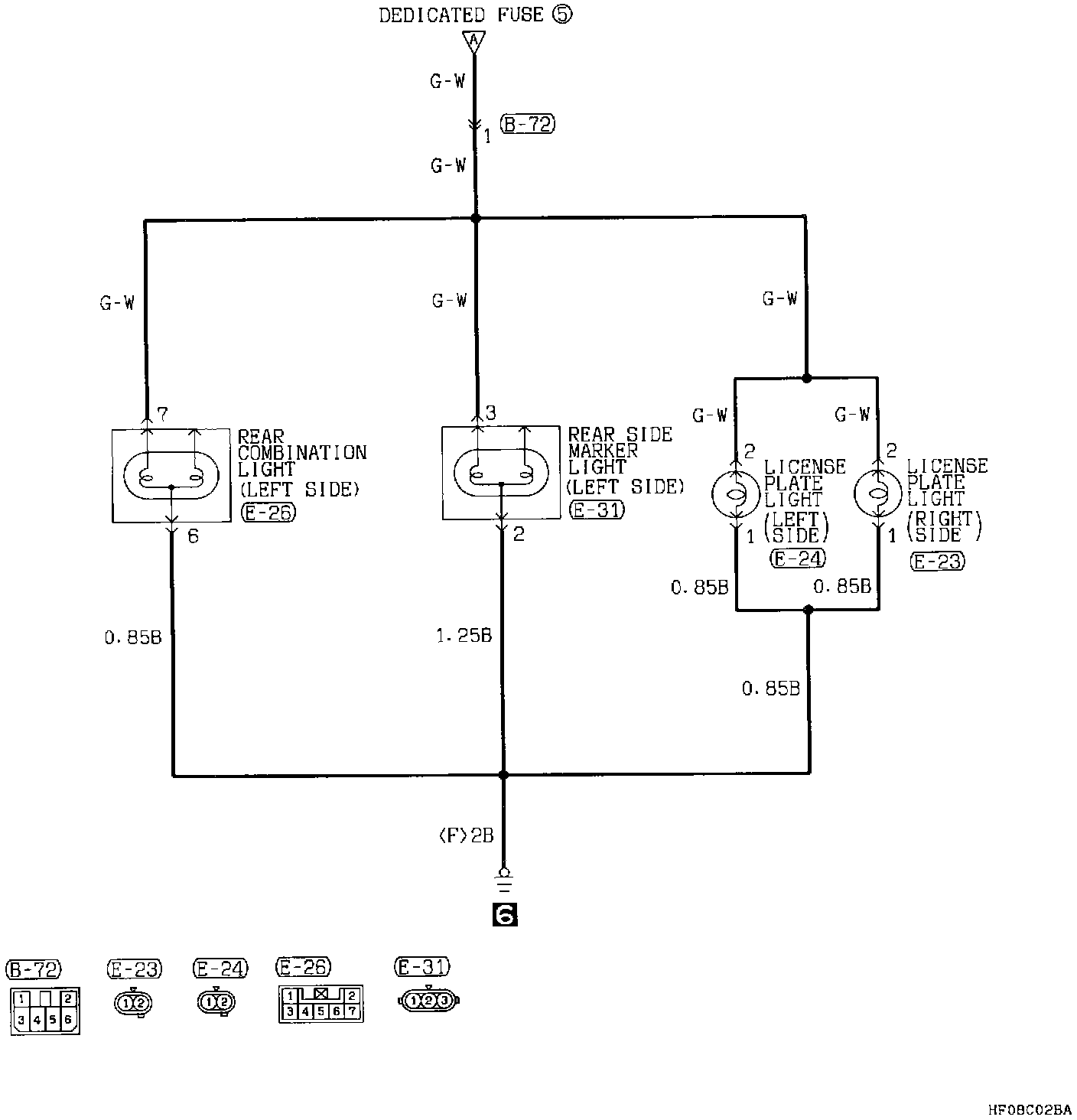

Taillight, Position, Side Marker And License Plate Light Circuit (Part 3 Of 3):
